Sony HCD-BX77DBi - EXPLODED VIEWS; Panel Section Exploded View

43
HCD-BX77DBi
SECTION 6
EXPLODED VIEWS
1 3-282-727-11 PANEL (SIDE L)
2 3-282-728-11 PANEL (SIDE R)
3 2-580-628-01 SCREW, +BVTP S3X6 TYPE2
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#8 7-685-903-11 TAPPING +PWH 3X6 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color

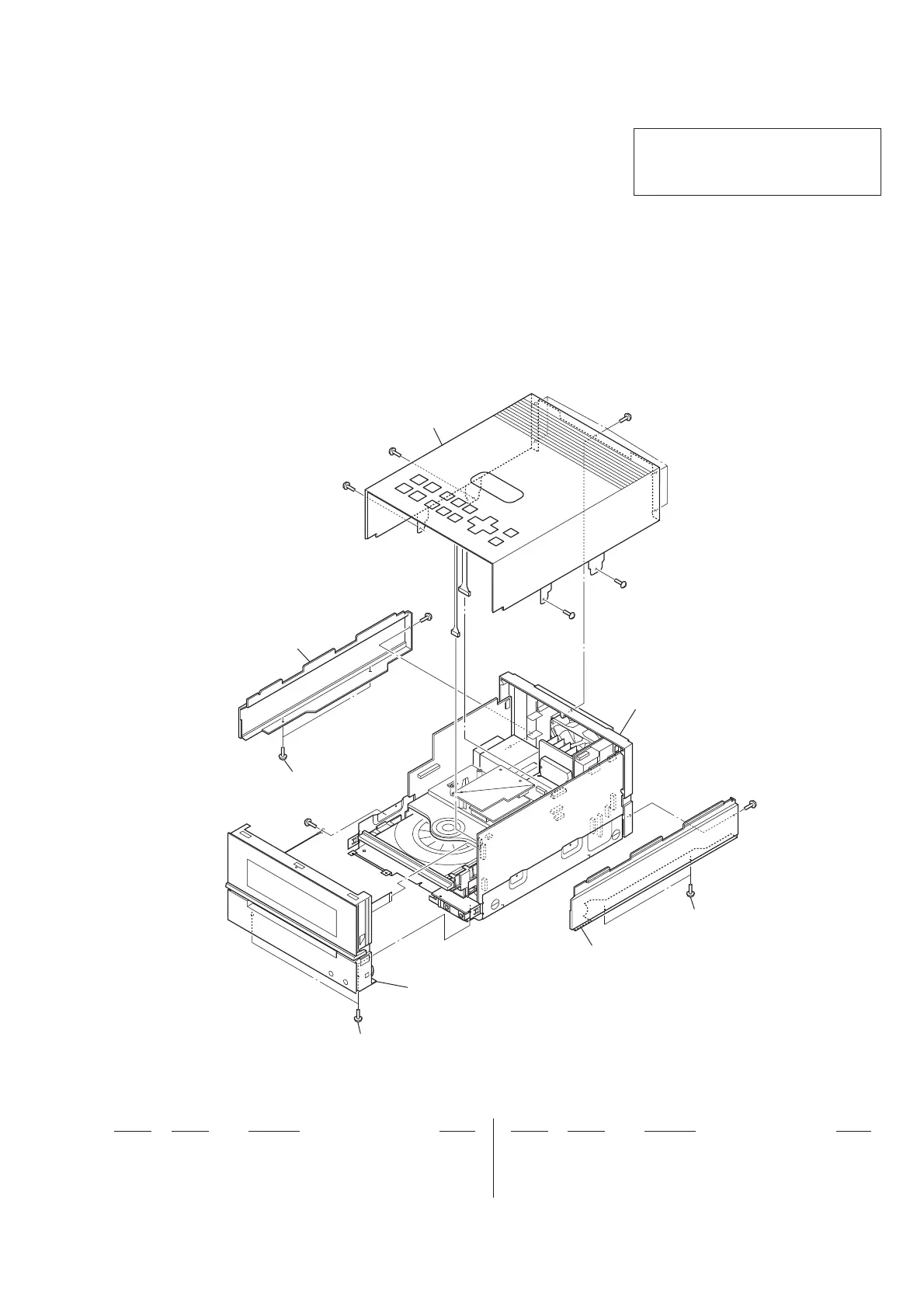

6-1. PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1
2
3
3
3
#1
#8
#1
#8
#3
#3
#1
front panel section
MAIN board section
top panel section
#
3
