HCD-BX77DBi

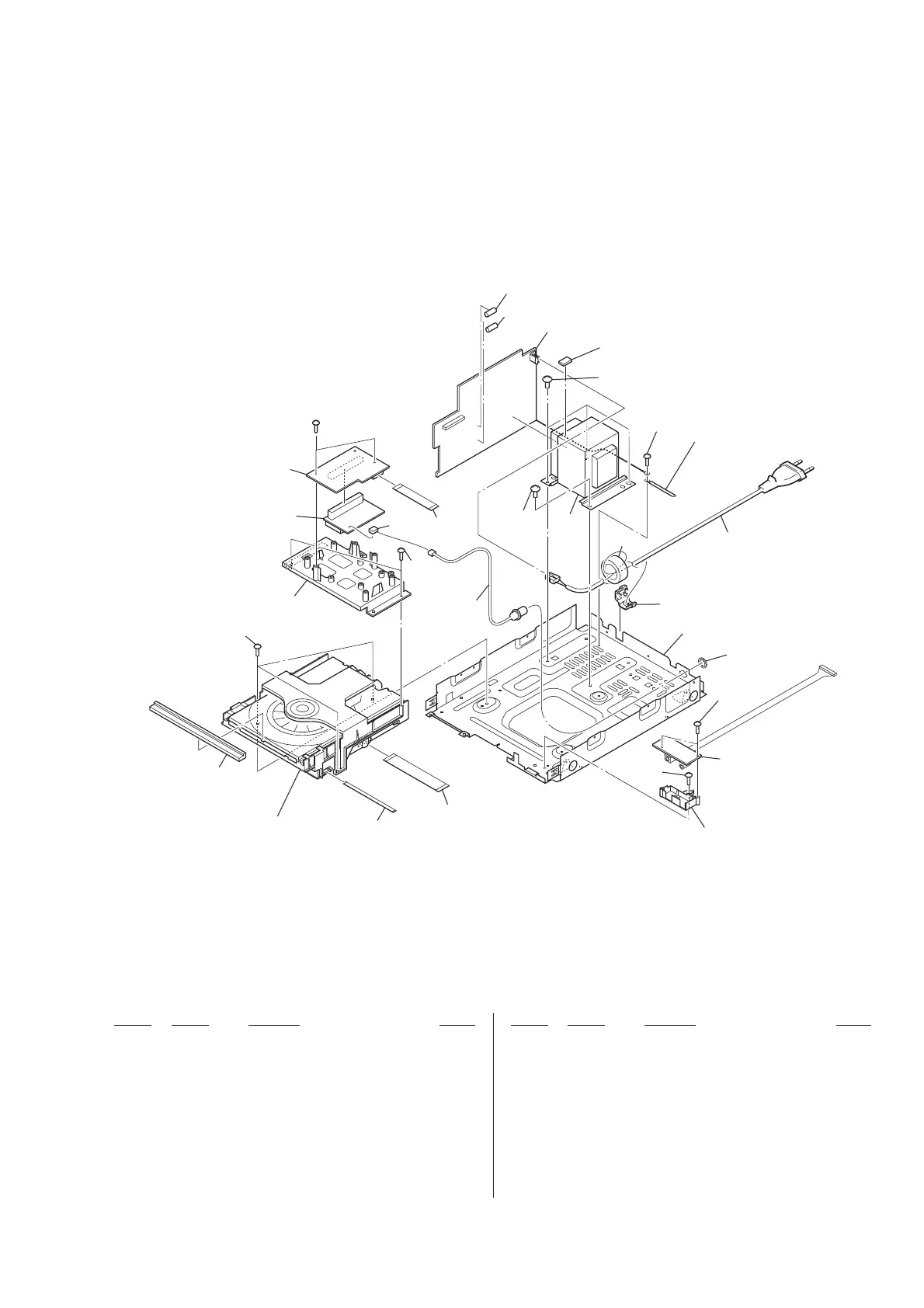

6-5. POWER BOARD SECTION
201 1-832-615-21 CABLE, FLEXIBLE FLAT (21 CORE)
202 1-834-979-21 CABLE, FLEXIBLE FLAT (5P)
203 3-281-653-01 DOOR CD
204 3-077-331-21 +BV3 (3-CR)
209 4-900-386-01 SCREW +BV SUMITITE S 4X8 ROUND
210 2-594-960-41 SPACER (TRANSFORMER)
211 3-087-053-01 +BVTP2.6 (3CR)
0 212 1-834-966-21 CORD, POWER
213 3-703-244-00 BUSHING (2104), CORD
214 3-077-331-01 +BV3 (3-CR)
215 1-480-340-41 MODULE (DAB TUNER)
216 1-500-868-11 CORE, FERRITE
217 1-821-551-11 PIN, CONNECTOR 2P
218 A-1507-152-A DAB BOARD, COMPLETE
219 1-831-706-21 CABLE, FLEXIBLE FLAT (11 CORE)
0 F901 1-532-388-33 FUSE (T2AL/250V)
0 F902 1-532-388-33 FUSE (T2AL/250V)
0 T901 1-445-142-11 TRANSFORMER, POWER
#5 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201
202
203
214
209
210
204
212
213
216
211
214
209
not supplied
(POWER board)
loading mechanism section
211
#5
not supplied
not supplied
F902
T901
F901
not supplied
not supplied
not supplied
(HP board)
not supplied
218
215
219
217
not supplied
