HCD-CL1/CL3

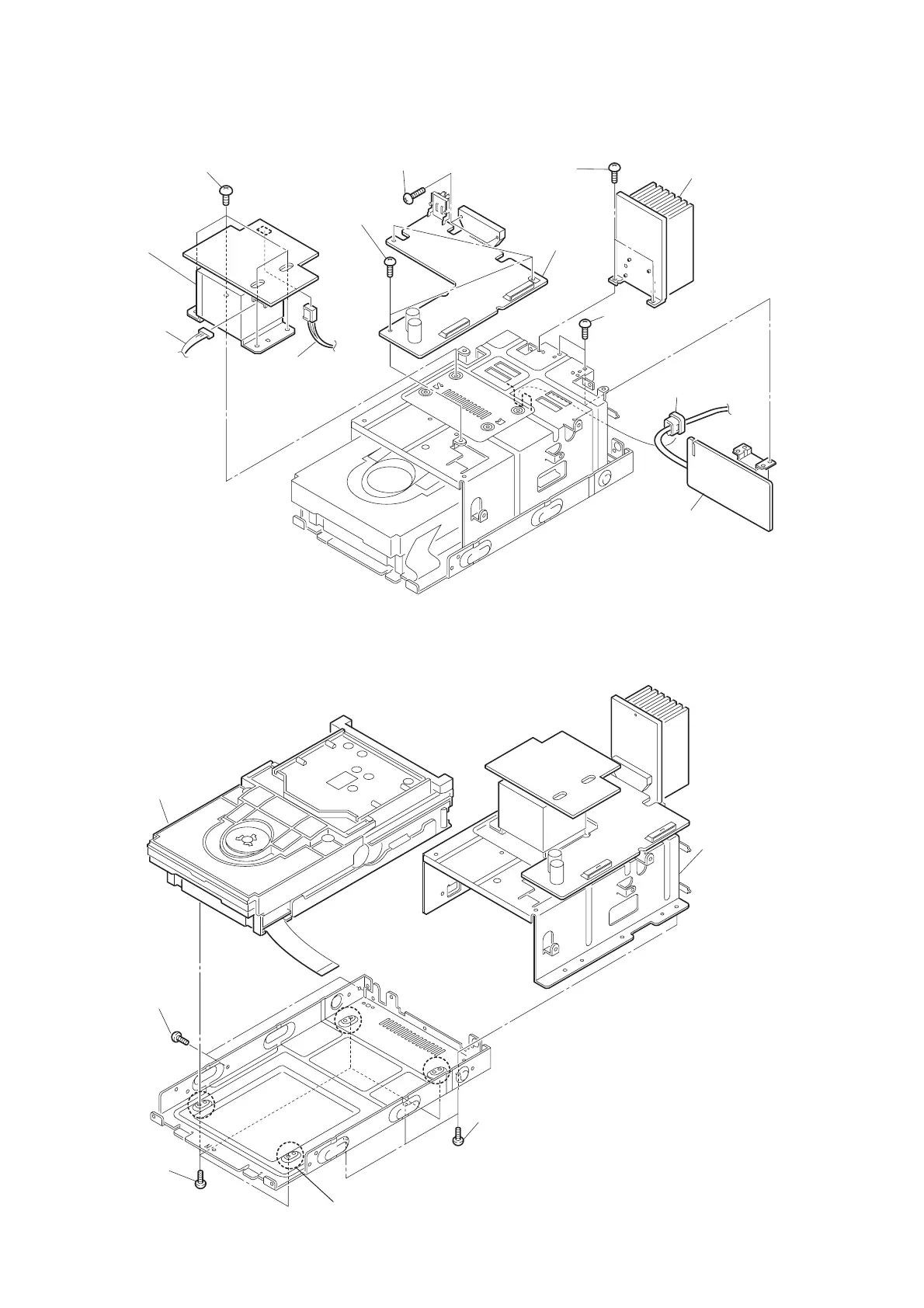

3-6. AMP BOARD, POWER TRANSFORMER
1
Connector
(CN901)
2
Connector
(CN902)
3
Four screws
(+BVTP 4
×
8)
6
Three screws
(
+BVTP 3 × 8
)
5
Two screws
(
+BVTP 3 × 16
)
7
Amp board
8
Two screws
(+BVTP 3
×
8)
4
Power
transformer
9
Heat sink
q;
Two screws
(
+BVTP 3 × 8
)
qs
Cord bushing
qa
Sub power board
3-7. CD MECHANISM
3 Chassis assy
5
CD mechanism deck
(CDM63B)
2
Two screws
(
+BVTP 3 × 8)
1
Three screws
(
+BVTP 3 × 8
)
4
Four screws
(
+BVTP 3 × 8
)
Note: When installing the CD mechanism, the four bosses
must be aligned with the specified positions.
