Sony HCD-CL1 - CD Mechanism Electrical and Motor Parts; Step 3-15: IN OUT SW Board; Step 3-16: Motor Assy and Motor Board

15
HCD-CL1/CL3

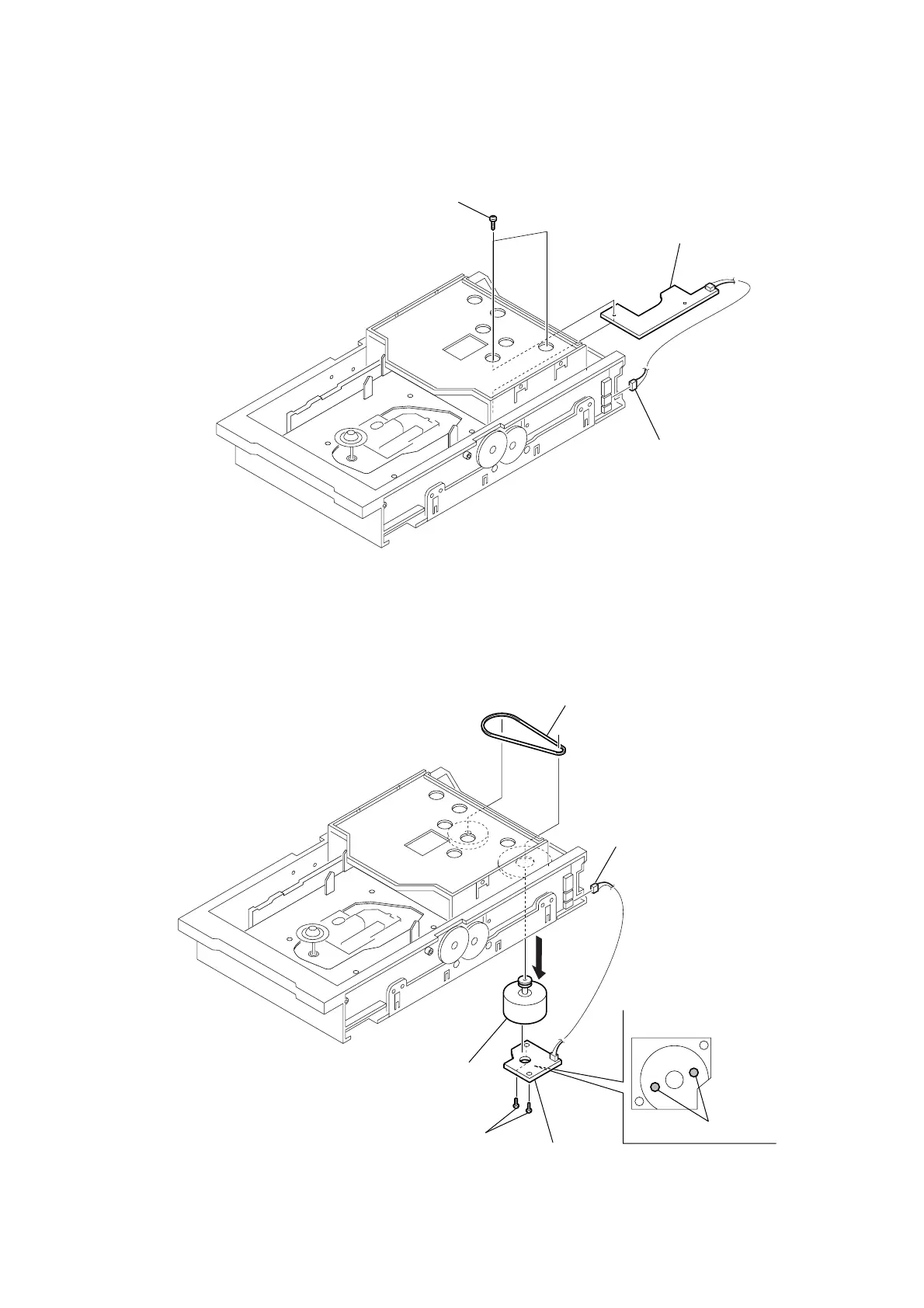

3-16. MOTOR ASSY (M721), MOTOR BOARD
4 Two screws (+BTTP M2.6)
2 Connector (CN702)
7 Motor assy (M721)
5 Motor board
6
1 Belt
3 Remove two solders.
Motor board bottom view
3-15. IN OUT SW BOARD
1 Connector (CN704)
2 Two screws (+BTTP M2.6)
3 IN OUT SW board
