Sony HCD-CL1 - IC Pin Function Descriptions (Continued); IC401 Pin Function Description (Part 2)

4141
HCD-CL1/CL3

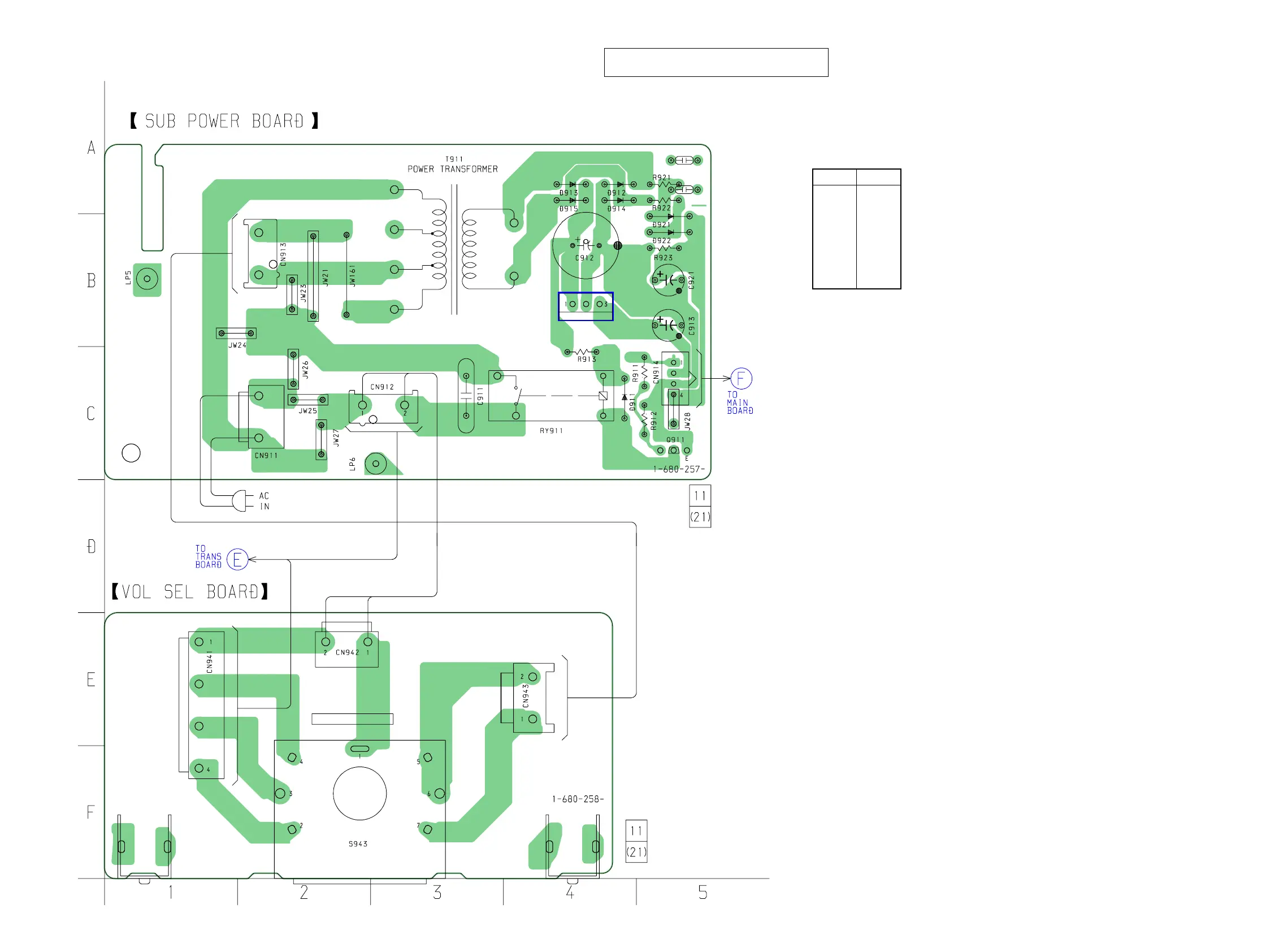

7-19. PRINTED WIRING BOARD POWER SECTION
Ref. No. Location
D911 C-4
D912 A-4
D913 A-4
D914 A-4
D915 A-4
IC911 B-4
Q911 C-5
• Semiconductor
Location
IC911
(Page 39)
(Page 25)
VOLTAGE
SELECTOR
E, Taiwan models
• See page 21 for Circuit Boards Location.
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
