Sony HCD-CL1 - CD Mechanism Mechanical Parts; Step 3-11: Tray Sensor Board; Step 3-12: Slider and Gears

13
HCD-CL1/CL3

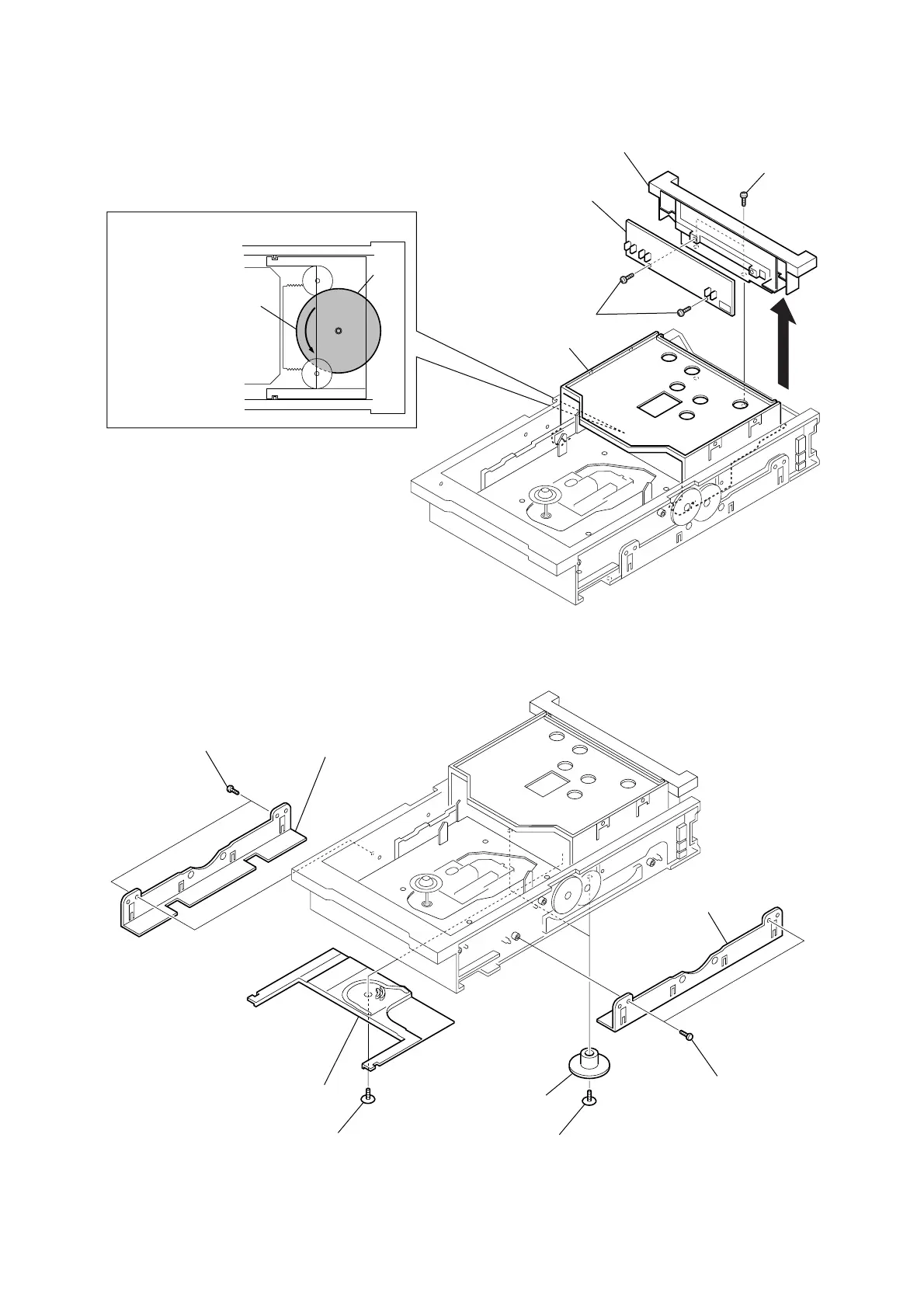

3-12. SLIDER (LOADING), GEAR (SLIDER)
6 Slider (LOADING)
2 Bracket (retainer)
1 Two screws (+BTTP M2.6)
4 Bracket (retainer)
3 Two screws (+BTTP M2.6)
8 Two gears (SLIDER)
7 Two floating screw
5 Floating screw
3-11. TRAY SENSOR BOARD
2 Two screws (+BTTP M2.6)
4 Two screws (+BTTP M2.6)
5 TRAY SENSOR board
1 Rotate the cam,
and lift up the stocker
at the full.
Stocker
6 HOLDER (SENSOR)
3
Cam
