Sony HCD-CL1 - CD Player Advanced Checks; E-F Balance (1 Track Jump) Check

20
HCD-CL1/CL3
Note : Clear RF signal waveform means that the shape “ ◊ ” can be clearly
distinguished at the center of the waveform.
E-F Balance (1 Track jump) Check
Procedure :
1. Connect an oscilloscope to TP (TEO) and TP (DVC).
2. Turn Power switch on.
3. Load a disc (LUV-P01) and playback the number nine track.
4. Press the gG button. (Becomes the 1 track jump mode.)
5. Confirm that the level B and A (DC voltage) on the oscillo-
scope waveform.
6. Adjust RV101 on the BD board so that the center of waveform
becomes the same voltage of DVC. (i.e. A=0V)

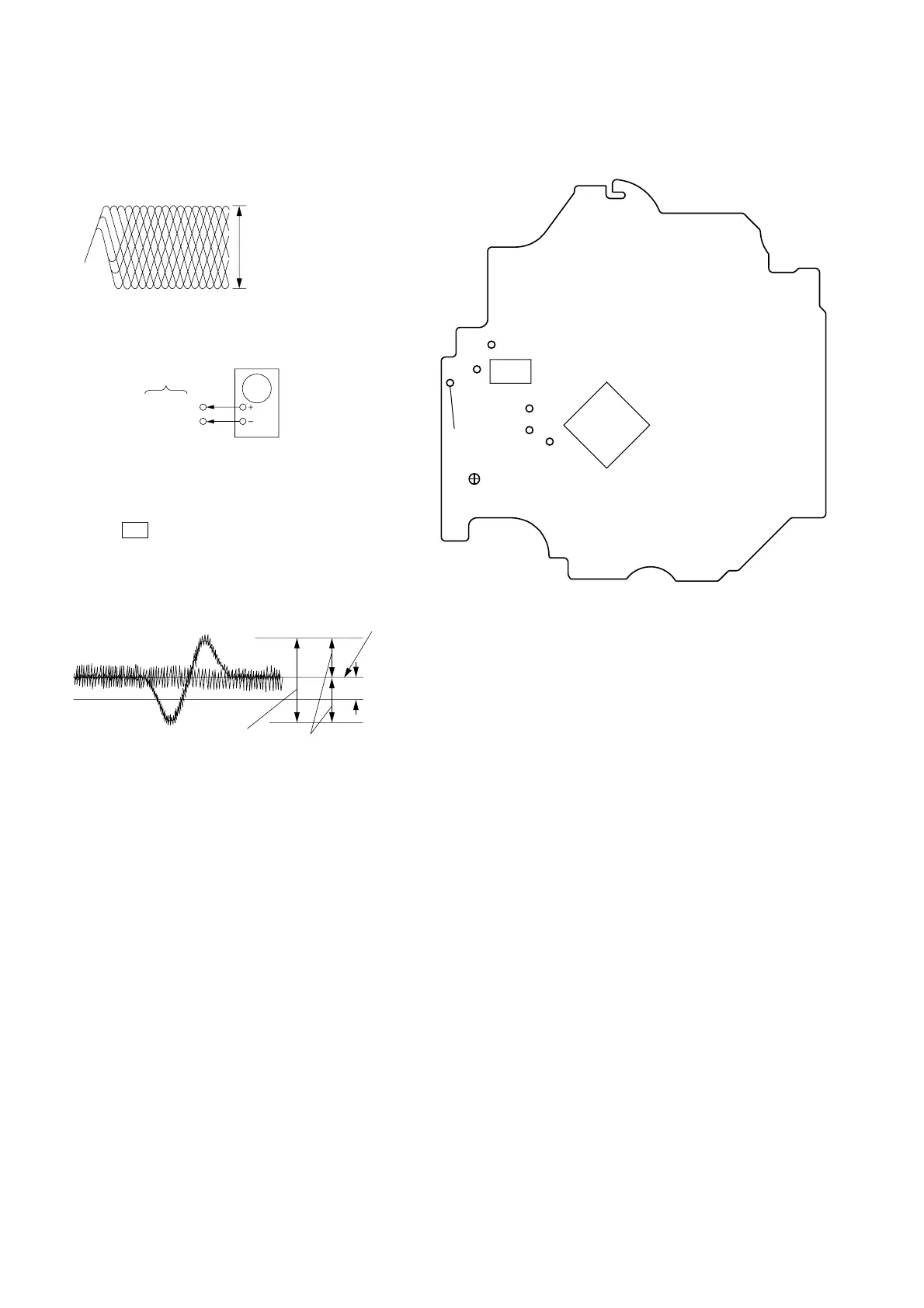

Adjustment Location:
[BD (CD) BOARD] (Conductor Side)
RF signal waveform
VOLT/DIV : 200mV
TIME/DIV : 500ns
level : 0.65 ±0.15Vp-p (RFDC)
1.1 ±0.4Vp-p (RFAC)
TP(TEO)
TP(DVC)
BD (CD) board
oscilloscop
e
level=1.0 ±0.5Vp-p
symmetry
A (DC voltage
)
center of
waveform
B
DVC
1 track jump waveform
TP (TEO)
TP
(RFAC)
TP
(FEI)
TP
(RFDC)
TP (FEO)
IC101
IC103
RV101
TP (DVC)
1
15
30
1
2021
40
60
80
41
61
16
