Sony HCD-CL1 - Speaker System Exploded Views and Parts; Exploded Views Notes and Abbreviations; Speaker System Exploded View (Lch)

2
SS-SCL1/SCL1B/SCL3/SCL5

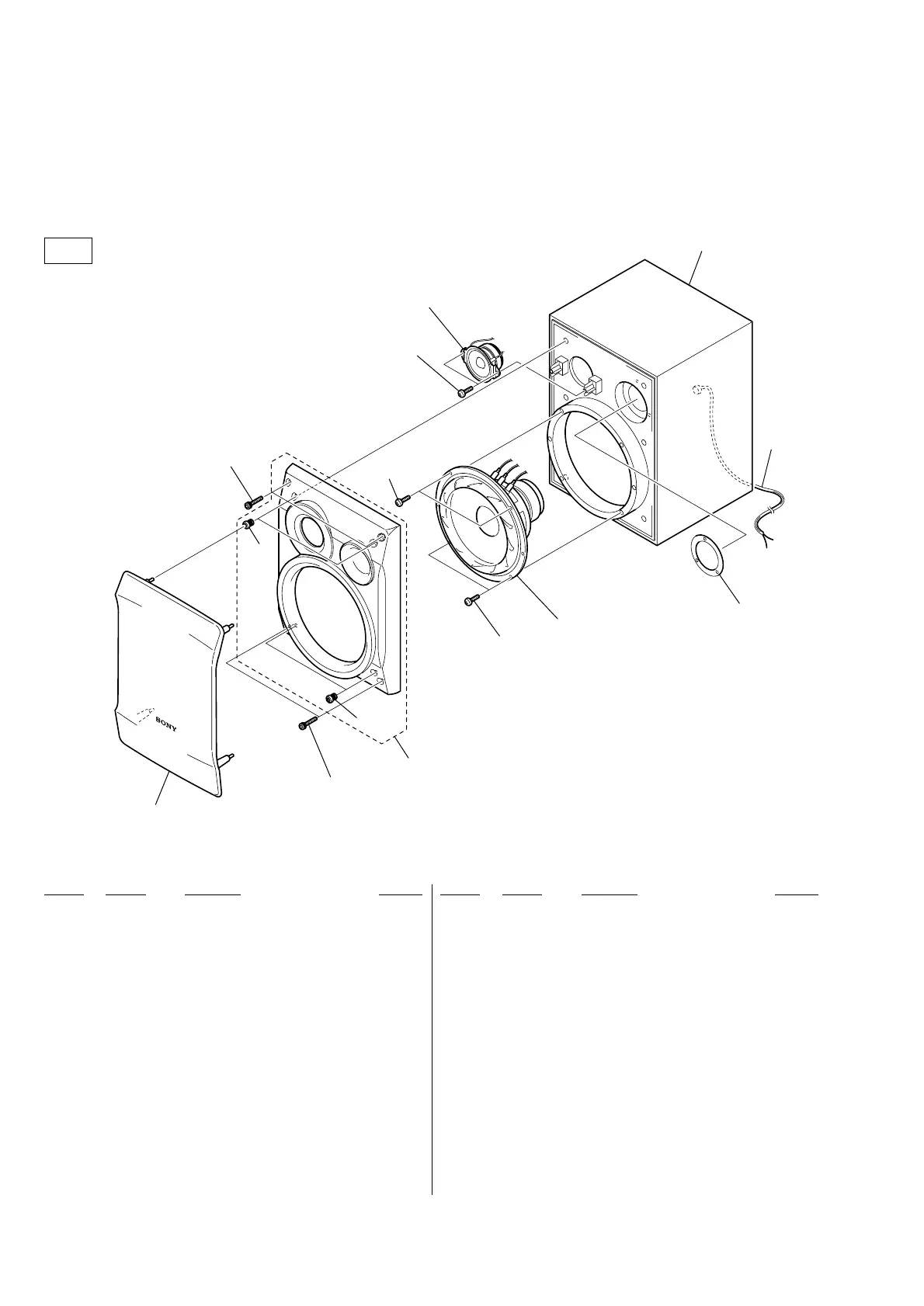

EXPLODED VIEW AND PARTS LIST
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
4
4
5
7
8
9
10
11
5
6
3
Lch
• Abbreviation
AUS : Australian model.
MX : Mexican model.
KR : Korea model.
TW : Taiwan model.
HK : Hong Kong model.
1 A-4412-706-A FRAME ASSY, GRILLE (SCL1/SCL5)
1 A-4412-808-A FRAME ASSY, GRILLE (SCL1B/SCL3)
2 A-4412-704-A PANEL (L) ASSY, FRONT (Lch)(SCL1/SCL5)
2 A-4412-705-A PANEL (R) ASSY, FRONT (Rch)(SCL1/SCL5)
2 A-4412-707-A PANEL (L) ASSY, FRONT (Lch)(SCL1B/SCL3)
2 A-4412-708-A PANEL (R) ASSY, FRONT (Rch)(SCL1B/SCL3)
* 3 4-963-075-01 CATCHER
4 4-232-226-01 SCREW, HEXAGON SOCKET TAPPING
5 4-874-614-11 SCREW (4) (3.5X14), TAPPING
6 1-529-953-11 SPEAKER (16cm)(WOOFER)
(SCL1/SCL1B/SCL5)
6 1-529-955-11 SPEAKER (16cm)(WOOFER)(SCL3)
7 4-982-502-01 SCREW (A TYPE) (M3.5), TAPPING
8 1-529-952-11 SPEAKER (5cm)(TWEETER)
(SCL1/SCL1B/SCL5)
8 1-529-954-11 SPEAKER (5cm)(TWEETER)(SCL3)
9 A-4412-677-A CABINET (L) ASSY, SPEAKER (Lch)
(SCL1:US,AUS,E,MX,KR,TW/SCL5:AUS,HK)
9 A-4412-678-A CABINET (R) ASSY, SPEAKER (Rch)
(SCL1:US,AUS,E,MX,KR,TW/SCL5:AUS,HK)
9 A-4412-716-A CABINET (L) ASSY, SPEAKER (Lch)
(SCL1B/SCL3:US,KR)
9 A-4412-717-A CABINET (R) ASSY, SPEAKER (Rch)
(SCL1B/SCL3:US,KR)
9 A-4412-786-A CABINET (L) ASSY, SPEAKER (Lch)
(SCL1:AEP,UK/SCL5:AEP,UK)
9 A-4412-787-A CABINET (R) ASSY, SPEAKER (Rch)
(SCL1:AEP,UK/SCL5:AEP,UK)
9 A-4412-788-A CABINET (L) ASSY, SPEAKER (Lch)
(SCL3:AEP,UK)
9 A-4412-789-A CABINET (R) ASSY, SPEAKER (Rch)
(SCL3:AEP,UK)
10 1-757-526-11 CORD, CONNECTION
11 4-218-300-01 PACKING (B)
