Sony HCD-D790 - Board and Component Identification; 2-13. OPTICAL PICK-UP and SLED MOTOR

— 14 —
1 Two screws
(PTPWH M2.6
× 6
)
1 Two screws
(PTPWH M2.6
× 6)
5 Screw
(BVTP 2.6
× 8)
2 Optical pick-up
section
3 Two springs
3 Two springs
4 Flat wire
(CN101)
7 BD board
Limit switch
6 Removal
the four solders.

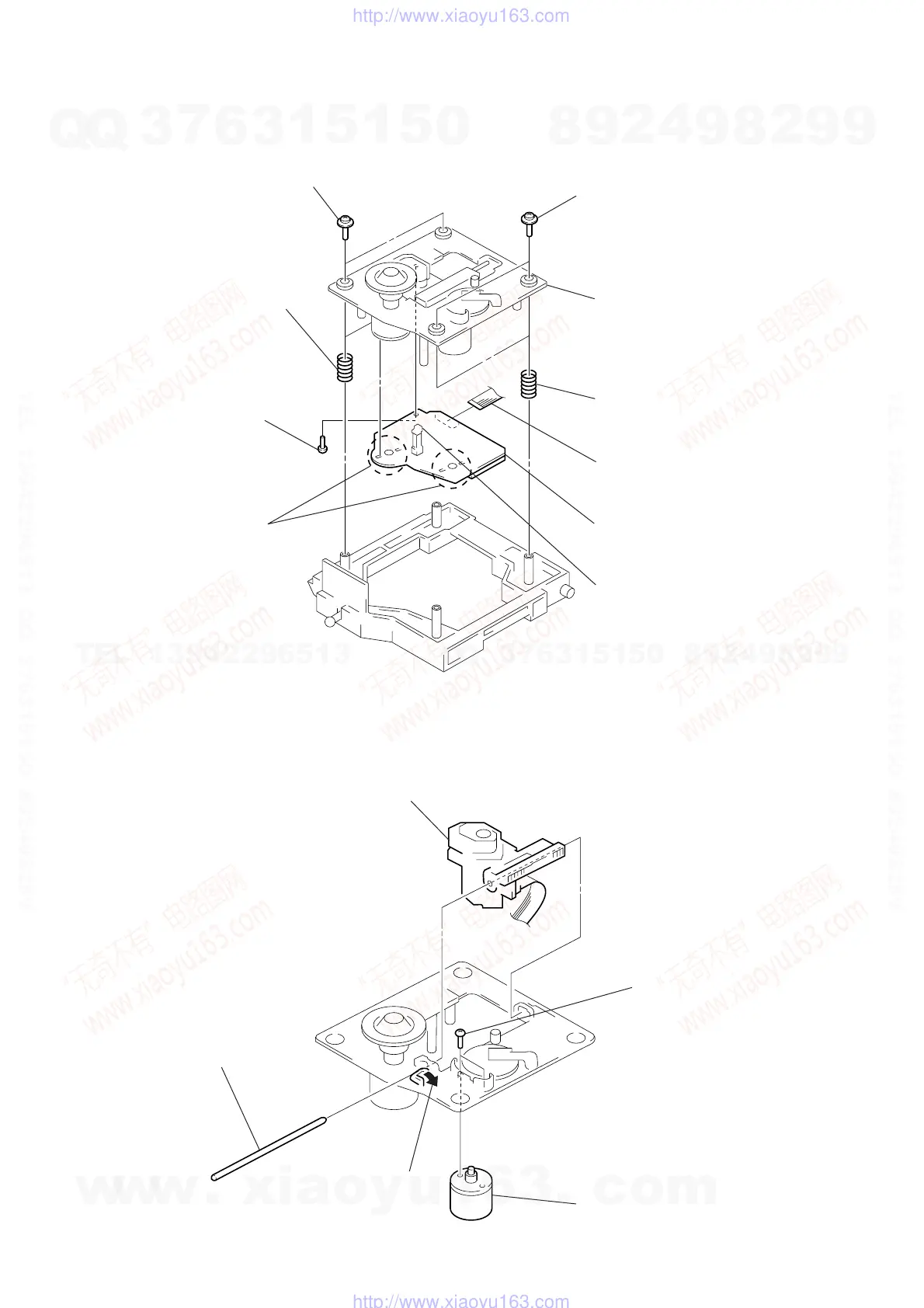

2-12. BD BOARD
2-13. OPTICAL PICK-UP, SLED MOTOR
4 Two screw
s
(P 2 × 3)
5 Sled motor
2 Sled shaft
1 Claw
3 Optical pick-up
