ā 92 ā

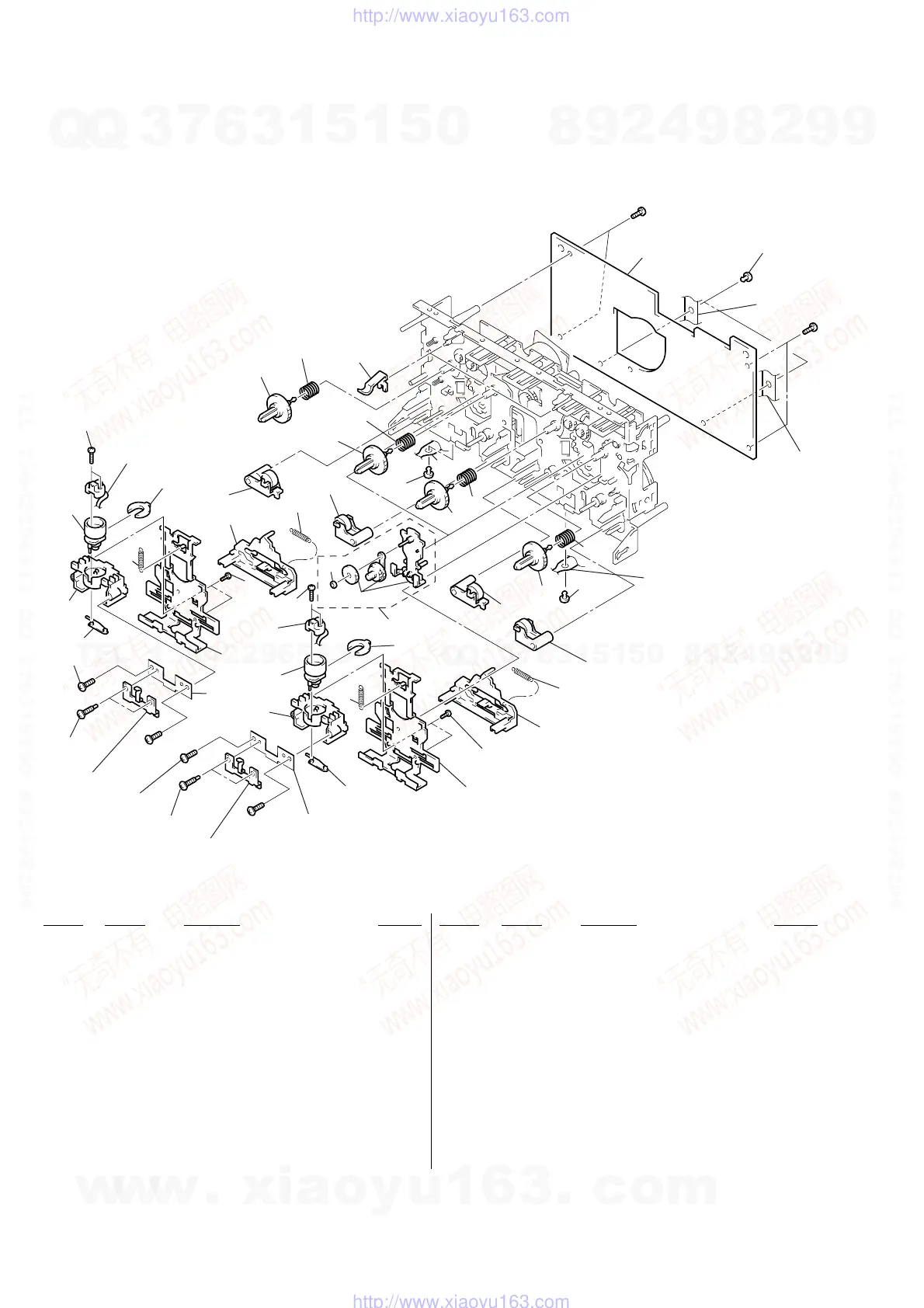

7-6. TAPE MECHANISM DECK SECTION-2
(TCM-220WR2)
not supplied
not supplied
not supplied
not supplied
r
B
r
A
r
A
256
257
259
262
258
261
266
264
265
272
274
271
273
263
265
264
269
268
257
259
256
255
253
267
260
255
254
252
251
251
252
254
253
260
258
261
263
266
262
273
269
#6
#6
(including
r
C)
r
B
not supplied
not supplied
HRPE101
(including
r
B)
HP101
(including
r
A)
#7
#7
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 3-908-560-01 SPRING, AZIMUTH ADJUSTMENT
252 3-919-684-01 SCREW, AZIMUTH ADJUSTMENT
253 X-3373-113-1 SLIDER (HEAD) ASSY
254 3-908-556-01 SPRING, HEAD TOGGLE
255 3-908-558-02 FITTING BLOCK, HEAD
256 3-908-557-02 ROTARY BLOCK, HEAD
* 257 3-908-559-01 STOPPER, AZIMUTH
258 3-908-555-01 SLIDER (REV SLIDER)
259 3-917-143-11 SPRING, TENSION
260 3-388-848-01 SCREW (P2X6) (B TIGHT)
261 3-939-371-01 SPRING (1), TENSION
262 X-3369-909-1 PINCH LEVER (REV) ASSY
263 X-3369-908-1 PINCH LEVER (FWD) ASSY
264 3-908-613-01 GEAR (S), REEL
265 3-917-141-01 SPRING, COMPRESSION
266 X-3371-305-1 REEL (T) ASSY
267 3-669-465-01 WASHER (1.5), STOPPER
268 X-3370-173-1 TU ASSY
269 3-911-116-21 RIVET, PUSH
* 271 A-2007-131-A AUDIO BOARD, COMPLETE
272 3-930-972-01 DETENT, HALF
273 3-917-142-01 SPRING, COMPRESSION
274 3-911-116-11 RIVET, PUSH
HP101 1-500-093-11 HEAD, MAGNETIC (PLAYBACK) (DECK A)
HRPE1011-500-094-11 HEAD, MAGNETIC (REC/PB/ERASE) (DECK B)
