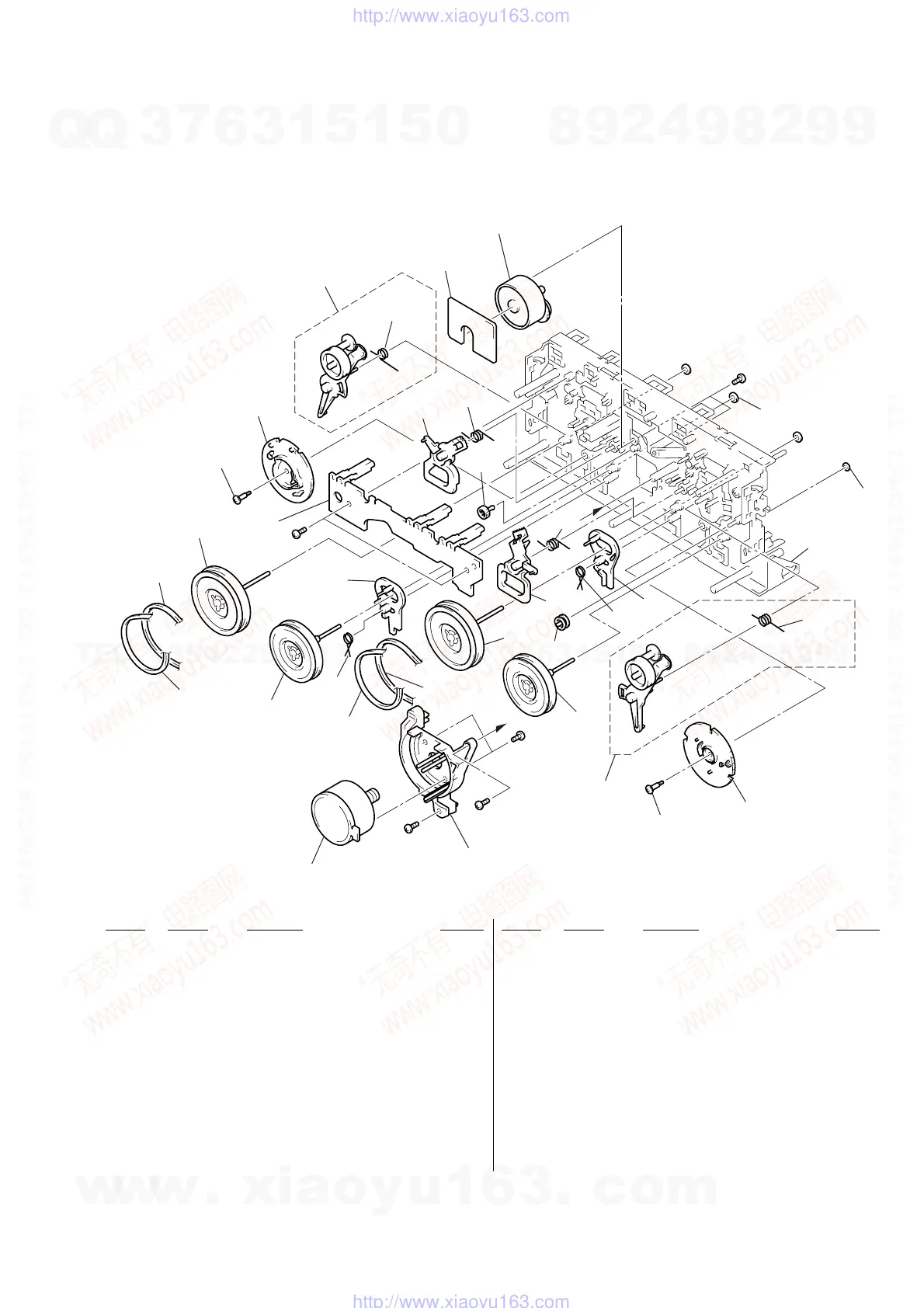

7-7. TAPE MECHANISM DECK SECTION-3
(TCM-220WR2)
r C : MOTOR board (supplied with AUDIO board)
not supplied
317
318
319
302
309
313
322
314
315
316
307
313
312
304
320
310
310
311
308
323
305
302
301
319
306
307
324
321
321
#9
M1
#9
#8
#7
M2
#11
#10
#10
303
r
C
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 3-908-597-01 CAM (A)
302 3-908-608-11 SCREW, STEP
303 X-3372-930-1 ARM (A) ASSY, FR
304 X-3370-169-1 FLYWHEEL (AR) ASSY
305 3-928-047-01 PULLEY, TENSION
306 3-908-599-01 LEVER (REV-A)
307 3-908-601-01 SPRING (REV LEVER), TORSION
308 3-908-603-01 LEVER (TRIGGER A)
309 X-3367-593-1 FLYWHEEL (BF) ASSY
310 3-908-605-01 SPRING (TRIGGER), TORSION
311 3-908-609-01 GEAR, TRIGGER
312 3-913-845-11 BELT (A)
313 3-913-846-11 BELT (FR)
314 X-3370-171-1 FLYWHEEL (BR) ASSY
315 3-908-600-01 LEVER (REV-B)
* 316 1-650-669-11 LEAF SWITCH BOARD
317 3-908-598-01 CAM (B)
318 X-3372-931-1 ARM (B) ASSY, FR
319 3-914-111-01 SPRING (FR), TORSION
320 3-908-604-01 LEVER (TRIGGER B)
321 3-911-115-01 WASHER, STOPPER
322 3-917-176-11 BELT (B)
323 X-3370-172-1 FLYWHEEL (AF) ASSY
324 X-3371-441-1 CHASSIS ASSY, MECHANICAL
M1 X-3371-223-1 MOTOR ASSY, CAPSTAN
M2 A-2004-410-A MOTOR ASSY, DC (TRIGGER)
