— 94 —

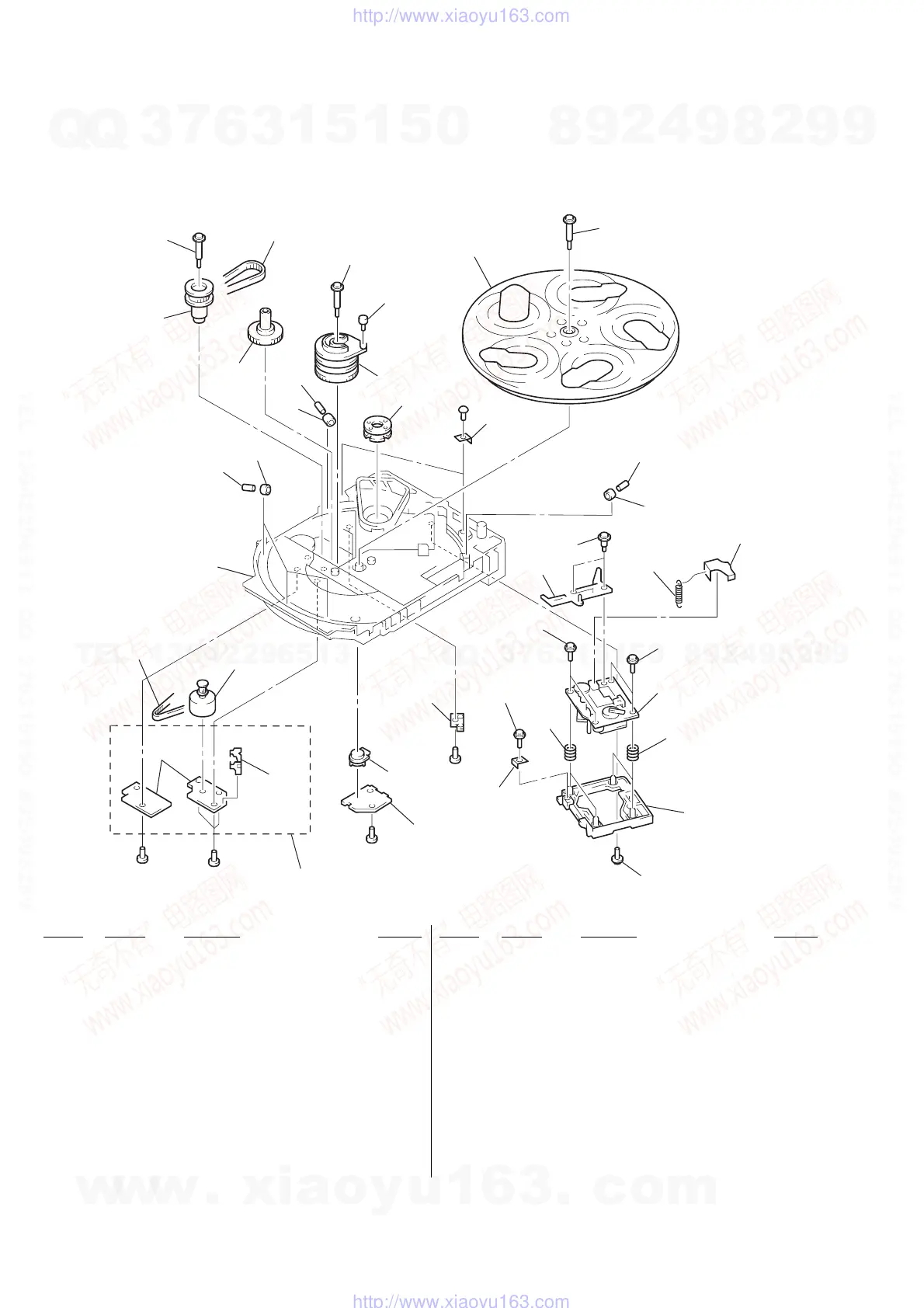

7-8. CD MECHANISM DECK SECTION
(CDM37L-5BD29AL)
not
supplied
M201
351
351
353
354
359
359
360
360
362
352
363
352
355
356
357
361
358
351
359
360
375
374
373
372
368
368
369
368
369
370
371
361
367
365
366
364
#1
BU-5BD29AL
#1
#1
#1
#1
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
351 4-987-976-01 SCREW, STEP
352 4-944-490-01 BELT (TIMING)
353 A-4660-978-A GEAR (PULLEY) ASSY
354 4-978-421-01 GEAR (MID)
355 4-978-425-01 ROLLER (CAM)
356 4-978-420-01 CAM (HOLDER)
357 1-452-538-11 MAGNET
358 4-978-417-01 TABLE, DISC
359 4-934-376-01 SHAFT (ROLLER)
360 X-4924-457-1 ROLLER ASSY
* 361 4-978-583-01 BRACKET (BU)
* 362 4-978-418-01 CHASSIS
* 363 4-980-385-01 HOLDER (SW)
* 364 A-4673-765-A CD MOTOR BOARD, COMPLETE
365 4-978-426-01 INDICATOR (NO.)
* 366 1-659-059-13 BD LED BOARD
* 367 1-659-058-13 TABLE SENSOR BOARD
368 4-933-134-01 SCREW (+PTPWH M2.6 × 6)
369 4-958-593-01 SPRING (BU), COMPRESSION
* 370 4-978-419-01 HOLDER (BU–5)
371 4-917-583-71 BRACKET, YOKE
372 4-989-493-01 SLIDER (37)
373 4-989-494-01 SCREW (SLIDER), STEP
374 4-989-819-01 SPRING, TENSION
375 4-989-491-21 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)
