Sony HCD-DR8AV - Printed Wiring Board - Main Section (1;5); Main Board (1;5) Layout

HCD-DR8AV/W900AV
— 41 — — 42 —

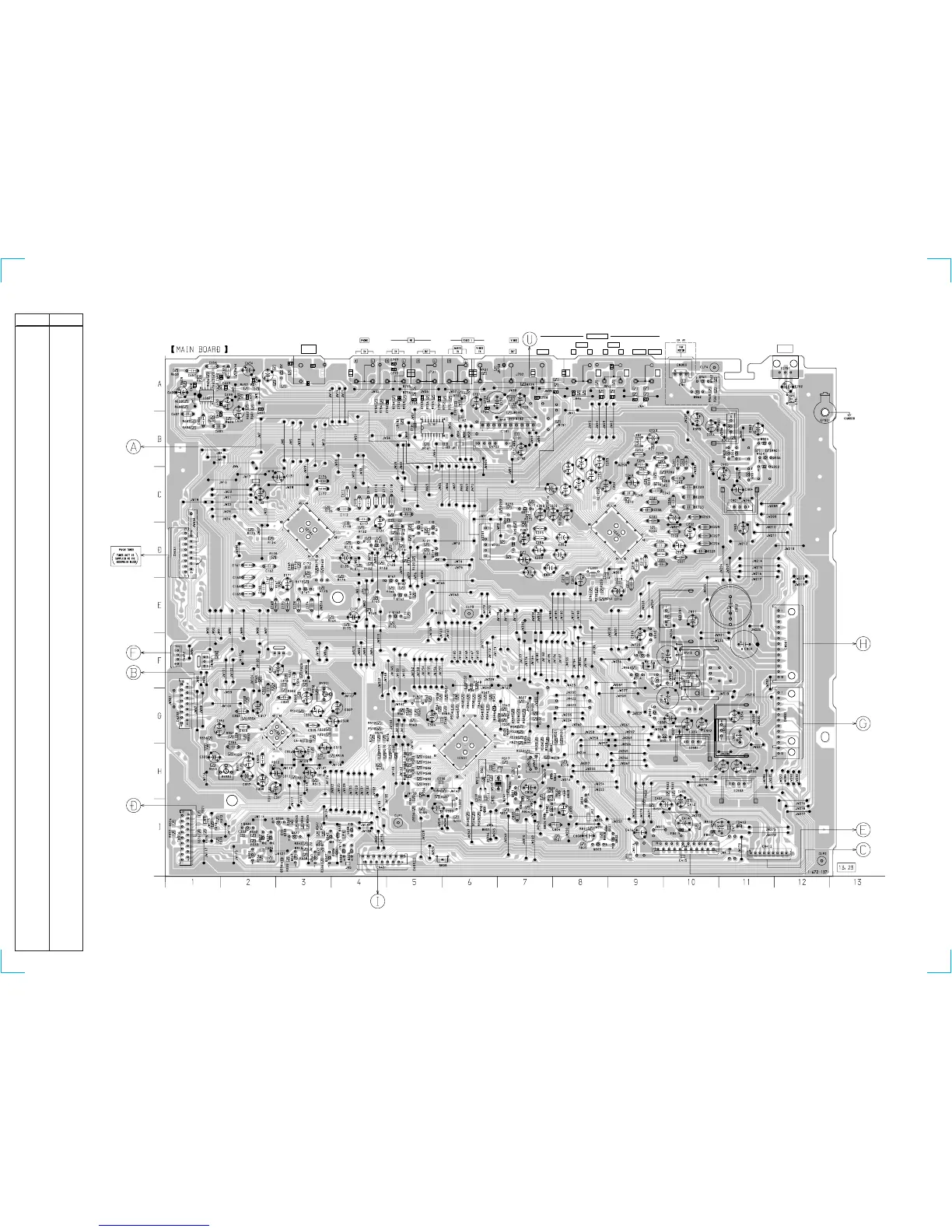

7-5. PRINTED WIRING BOARD MAIN SECTION
D333 I-3
D334 I-3
D335 I-4
D336 I-4
D501 I-6
D534 G-7
D544 G-7
D802 H-8
D803 H-8
D804 H-7
D805 H-8
D806 H-7
D807 I-9
D808 I-6
D911 E-10
D912 F-9
D913 F-10
D931 G-10
D951 B-11
IC101 D-3
IC201 C-9
IC181 B-5
IC191 B-7
IC301 G-3
IC501 H-6
IC601 A-1
IC901 C-11
IC931 G-10
IC932 G-11
IC933 H-11
IC951 B-11
IC801 I-8
IC911 E-10
Q111 D-5
Q112 D-5
Q113 D-5
Q115 D-4
Q161 E-5
Q162 E-5
Q163 E-5
Q165 E-3
Q271 C-7
Q281 C-7
Q331 I-2
Q332 I-2
Q333 I-2
Q334 I-2
Q335 I-4
Q336 I-3
Q337 I-3
Q338 I-4
Q339 I-4
Q340 I-3
Q341 I-3
Q342 I-3
Q343 I-3
Q801 H-7
Q802 I-9
Q803 I-8
Q804 I-8
Q901 C-11
Q902 B-11
Q903 B-11
Q904 B-11
Q905 B-11
Q906 B-11
Q911 F-9
Q912 F-9
Q913 F-9
Q914 F-9
Q931 G-10
Q932 G-9
Q961 A-10
Q962 A-10
• Semiconductor
Location
Ref. No. Location
(Page 84)
(Page 91)
(Page 55)
(Page 100)
(Page 71)
(Page
38)
(Page
87)
(Page 61,
63)
(Page 61,
63)
(Page 101)
C731
R733
R732
R734
Q731
R731
C732
C776
J704
C733
WOOFER
OUT
C761
R762
R761
R715
C711
C775
R712 R711
R763
R713
R764
C762
C712
C713
C763
R714
R716
R766
R765
VIDEO
FRONT
L R
REAR
L R
CENTER
WOOFER
M901
DVD INPUT
C257
C259
C258
C260
C261
C209
C211
C212
C210
Q291
R291
R292
R293
D201
5
CD DIGITAL
OUT
8
W900AV
DR8AV
DR8AV
W900AV
DR8AV
DR8AV
W900AV
DR8AV
16
• Refer to page 19 for Circuit Boards Location.
