Sony HCD-DR8AV - Sub Panel; CD-L;CD-R Board and CD Lid Assembly

— 9 —

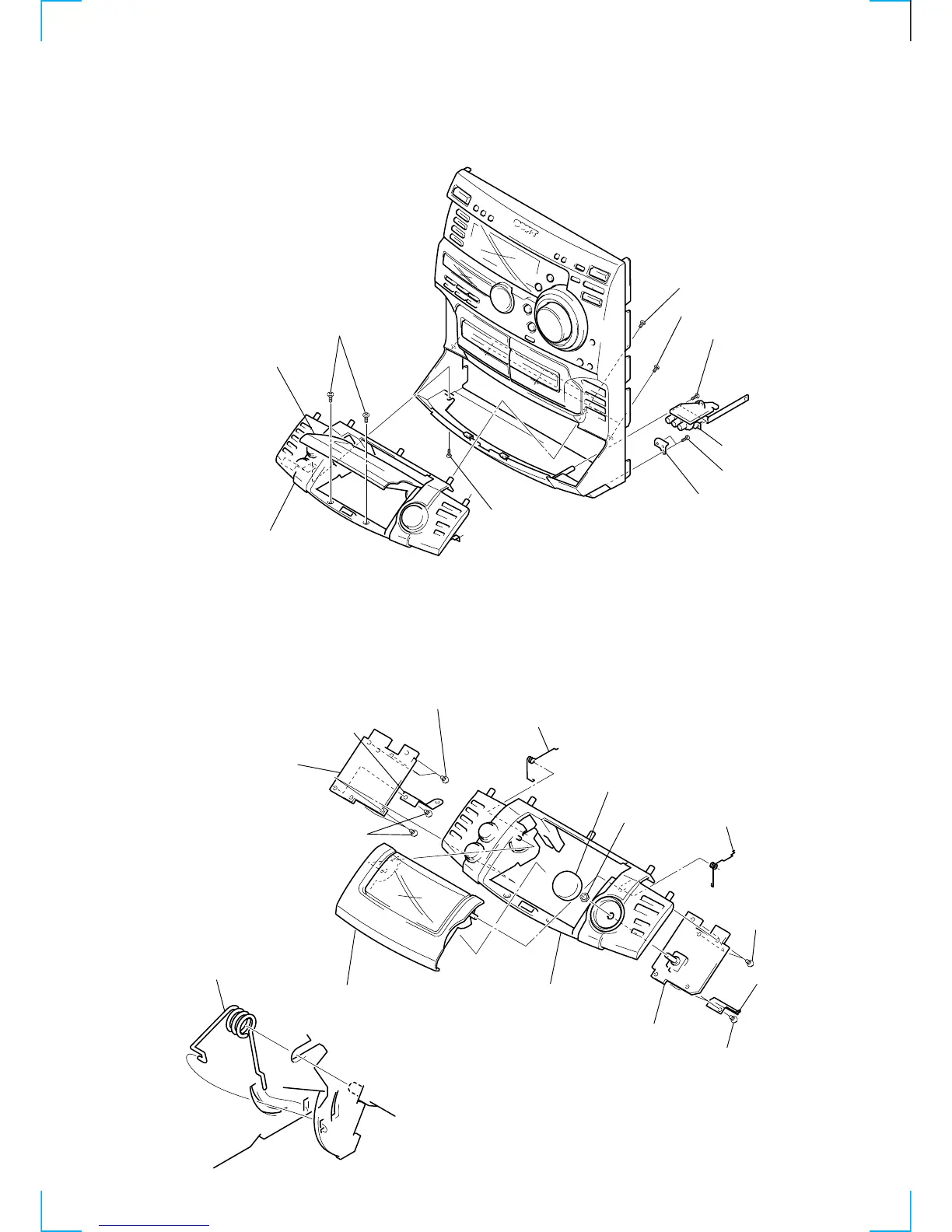

3-3. SUB PANEL
3-4. CD-L/CD-R BOARD AND CD LID ASSEMBLY
3 Open the CD lid assembly
8 Sub panel block
4 Two screws (BTP 2.6x6)
1 Two screws (BVTP 2.6x8)
6 Two screws (BVTP 2.6x8)
7 Three screws (BVTP 2.6x8)
5 Screw (BVTP 3x8)
2 Front input board
9 Two screws (BVTP 2.6x8)
0 Bracket (CD-R2)
!£ CD lid assembly
1 Three screws (BVTP 2.6x8)
7 Three screws
(BVTP 2.6x8)
8 Two screws (BVTP 2.6x8)
9 Bracket (CD-R)
0 CD-R board
2 Three screws
(BVTP 2.6x8)
3 Bracket (CD-L)
4 CD-L board
!™ Torsion spring (CD-L)
Torsion spring (CD-L)
Sub panel assembly
Sub panel assembly
CD lid assembly
5 Knob (CD)
6 Nut
!¡ Torsion spring (CD-R)
