Sony HCD-DR8AV - Exploded Views - Front Panel (Part 2); Front Panel Section 2 Exploded View

— 109 —
Supplied with
S701
#5
#4
#4
#6
#5
#5
not supplied
not supplied
not supplied
not supplied
not supplied
101
103
106
111
108
126
110
112
113
120
107
121
119
119
102
104
125
125
105
not supplied
117
125
122
125
125
125
123
109
114
115
124
125
125
125
118
116
116
#9
#9
125
125
TCM230AWR1
TCM230PWR1
125

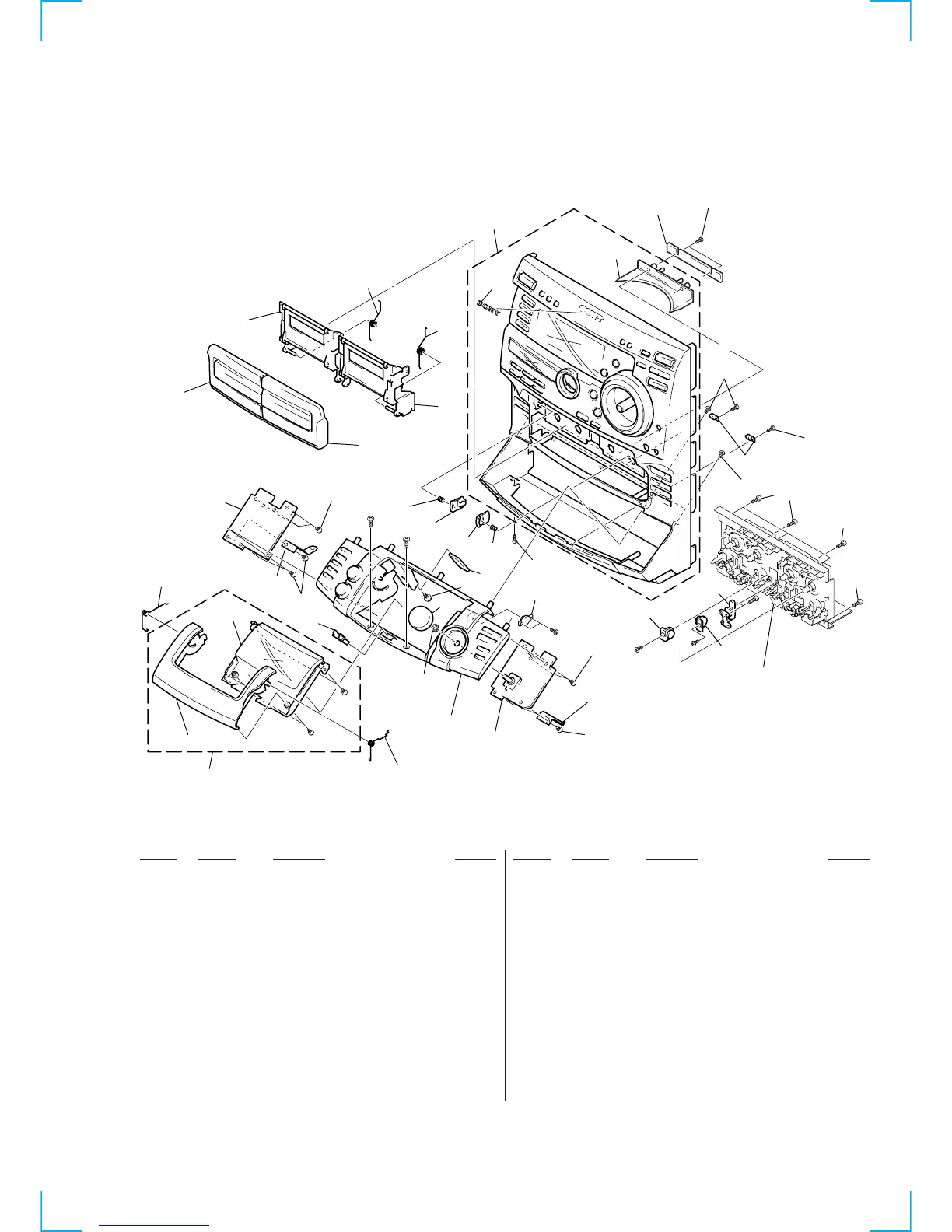

8-3. FRONT PANEL SECTION 2
101 X-4950-635-1 LID ASSY, CD
102 4-214-773-02 SPRING (CD-L), TORSION
103 4-214-774-02 SPRING (CD-R), TORSION
104 4-040-472-01 LATCH, D.C.
* 105 1-672-186-12 CD-L BOARD
* 106 1-672-187-12 CD-R BOARD
* 107 1-672-191-12 DOOR-SW BOARD
108 4-214-718-02 KNOB (CD)
109 X-4950-624-1 PANEL ASSY (DR8AV)
109 X-4950-625-1 PANEL ASSY (W900AV)
* 110 3-973-975-21 DAMPER, OIL
111 X-4950-633-1 PANEL ASSY, SUB
112 X-4950-663-1 LID (A) ASSY, CASSETTE (W900AV)
112 X-4950-665-1 LID (A) ASSY, CASSETTE (DR8AV)
113 X-4950-639-1 LID (B) ASSY, CASSETTE
114 X-4950-641-1 HOLDER (A) ASSY, CASSETTE
115 X-4950-642-1 HOLDER (B) ASSY, CASSETTE
116 4-215-062-01 DAMPER
* 117 1-672-195-11 LED (PANEL) BOARD
118 4-214-755-01 HOLDER (FULCRUM)
119 4-214-775-02 SPRING, PUSH CATCHER RETURN
120 4-214-760-11 CATCHER (A), PUSH
121 4-214-761-11 CATCHER (B), PUSH
122 4-214-769-01 SPRING (TC-B), TORSION
123 4-214-768-01 SPRING (TC-A), TORSION
124 4-214-759-01 EMBLEM (NO.6), SONY
125 4-951-620-01 SCREW (2.6 × 8), +BVTP
126 4-957-577-01 SCREW PTP WH (2.6 × 8) (DIA. 10)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
