SECTION 8
EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
AUS : Australian model
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
AR : Argentina model
— 107 —
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
4
4
4
2
3
4
5
1
M901 (DR8AV)
FRONT PANEL
#3
#3 (W900AV)
#3
#3
#3
#3
#3
#3
#3 (DR8AV
#2
#3
#1
#1
#1
#1
6
(AUS)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

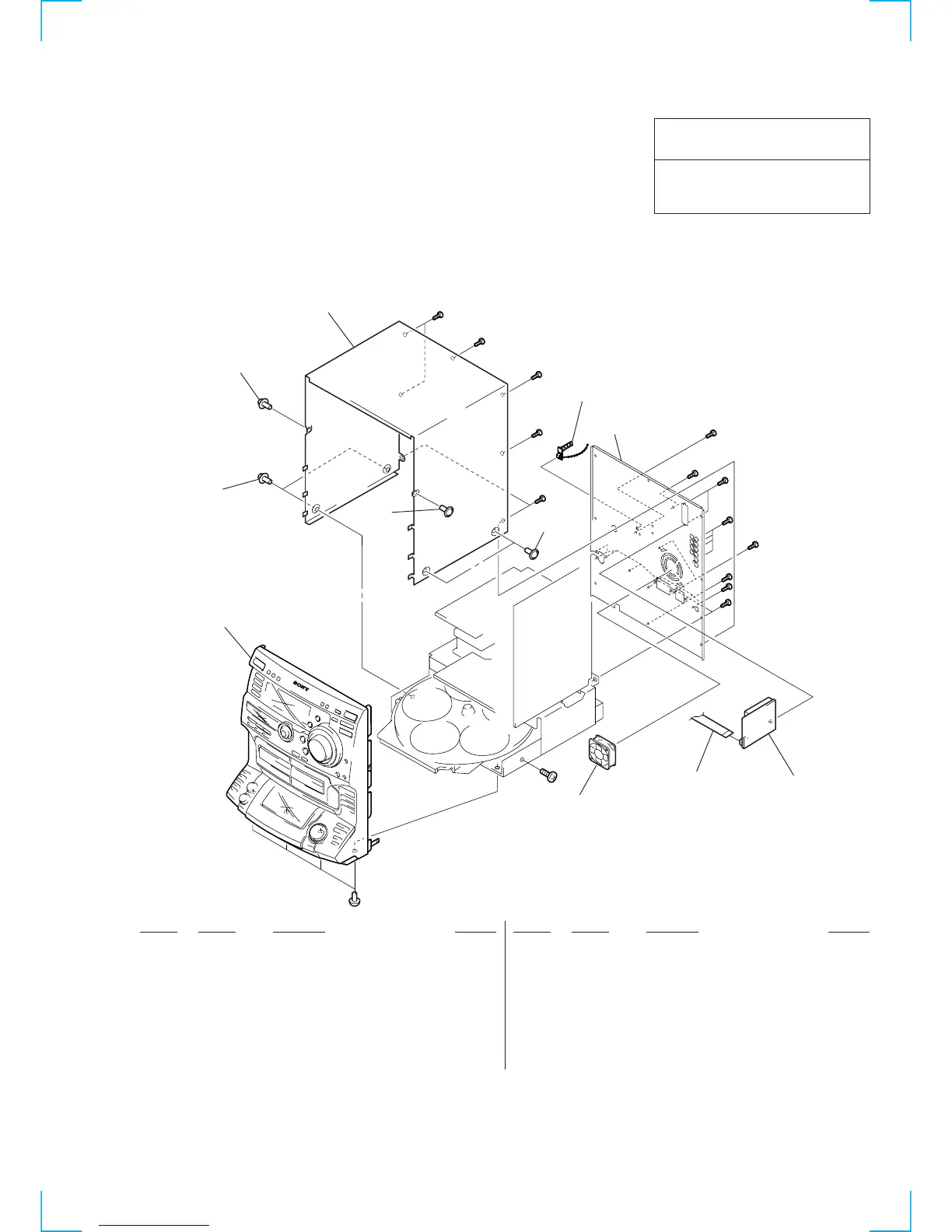

8-1. CASE AND BACK PANEL SECTION
1 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
* 2 4-214-777-11 CASE
3 4-214-785-51 PANEL, BACK (W900AV:US)
3 4-214-785-61 PANEL, BACK (W900AV:CND)
* 3 4-214-790-01 PANEL, BACK (DR8AV:E,AR)
* 3 4-214-790-11 PANEL, BACK (DR8AV:SP)
* 3 4-214-790-21 PANEL, BACK (DR8AV:MX)
* 3 4-214-790-31 PANEL, BACK (DR8AV: EA)
* 3 4-214-790-41 PANEL, BACK (DR8AV: AUS)
4 3-363-099-01 SCREW (CASE 3 TP2)
5 1-233-545-11 TUNER (FM/AM) (DRV8AV:EA,MX,AR,SP,AUS)
5 1-693-445-11 TUNER (FM/AM) (W900AV)
5 1-693-453-11 TUNER (FM/AM) (DR8AV:E)
6 4-956-370-12 BAND, PLUG FIXED (DR8AV:AUS)
M901 1-698-792-11 FAN, DC (DR8AV)
To Next Page
