Sony HCD-DR8AV - Exploded Views - Chassis; Chassis Section Exploded View

— 110 —
(EA, SP)
US, CND
(EA, SP)
(AUS)
151
159
157
156
155
160
154
161
163
163
153
158
#8
#3
#3
#3
#3
#3
#3
#3
#3
#7
#3
CNP901
CNP901
#3
#3
T951
not supplied
not supplied
not supplied
W900AV
not supplied
CDM37M-5BD32L
152
(E, MX, AR)
CNP901
CNP901
T901
#2
#3
#7
#3
162
not supplied

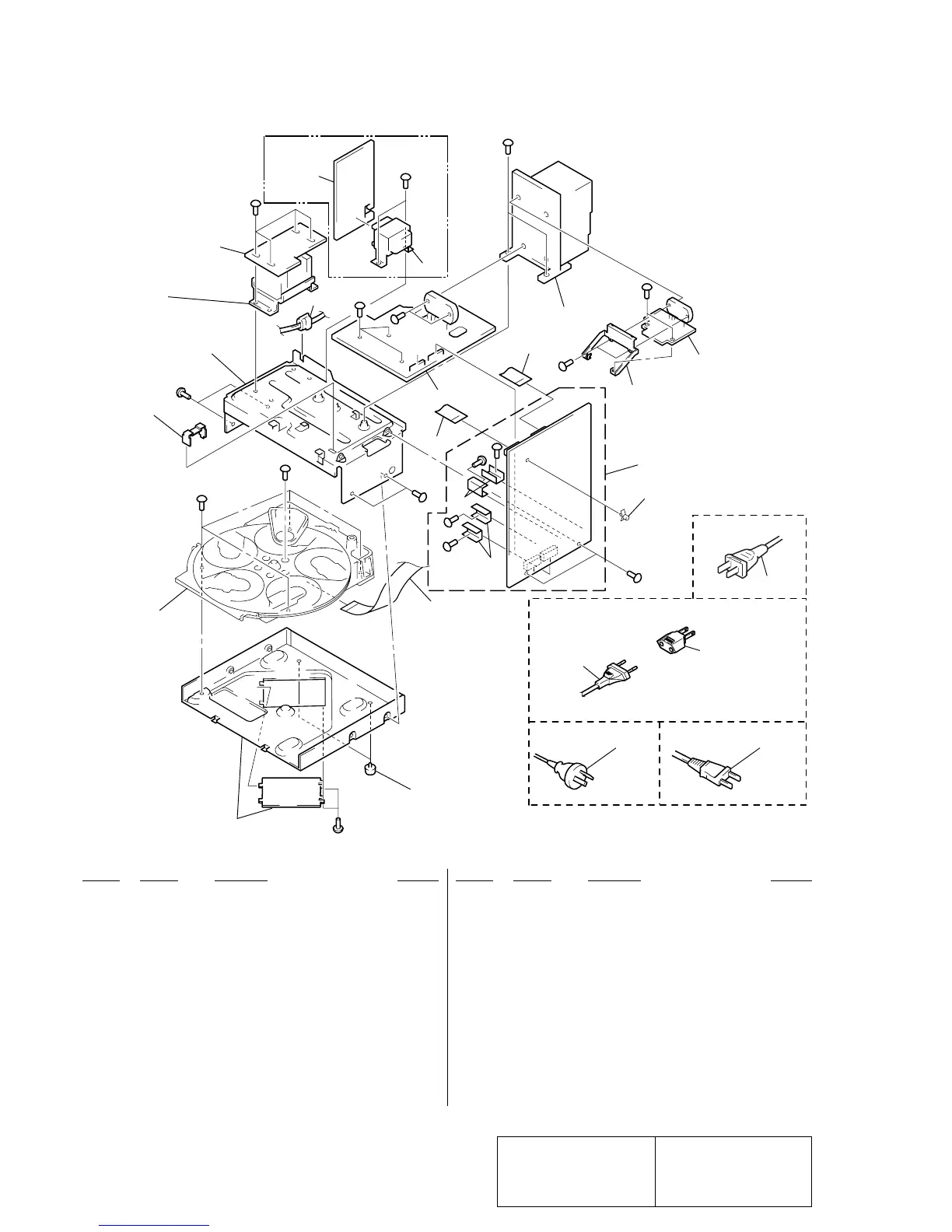

8-4. CHASSIS SECTION
* 151 1-673-110-11 TRANS BOARD (DR8AV)
* 151 1-672-431-11 TRANS BOARD (W900AV)
! 152 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP)
153 3-703-244-00 BUSHING (FBS001), CORD
* 154 A-4417-707-A PA BOARD, COMPLETE (DR8AV)
* 154 A-4417-709-A PA BOARD, COMPLETE (W900AV)
* 155 A-4417-543-A MAIN BOARD, COMPLETE (W900AV)
* 155 A-4417-544-A MAIN BOARD, COMPLETE (DR8AV:E,MX,AR)
* 155 A-4419-302-A MAIN BOARD, COMPLETE (DR8AV:SP,AUS)
* 155 A-4419-303-A MAIN BOARD, COMPLETE (DR8AV:EA)
156 1-790-287-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
* 158 1-672-432-11 SUB TRANS BOARD (W900AV)
* 159 4-988-533-01 HOLDER, PWB
160 1-773-006-11 WIRE (FLAT TYPE) (15 CORE)
161 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
* 162 A-4417-711-A SURRONUD AMP BOARD, COPLETE
163 4-875-327-31 HEAT SINK
! CNP901 1-558-943-41 CORD, POWER (E,MX)
! CNP901 1-575-042-21 CORD, POWER (CND)
! CNP901 1-575-651-21 CORD, POWER (EA, SP)
! CNP901 1-783-531-31 CORD, POWER (US)
! CNP901 1-783-941-31 CORD, POWER (MX,AR)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! T951 1-433-612-11 TRANSFORMER, POWER (W900AV)
! T951 1-433-613-11 TRANSFORMER, POWER (DR8AV)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ver 1.1 2003.05
