SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. FRONT PANEL
3-2. MAIN BOARD

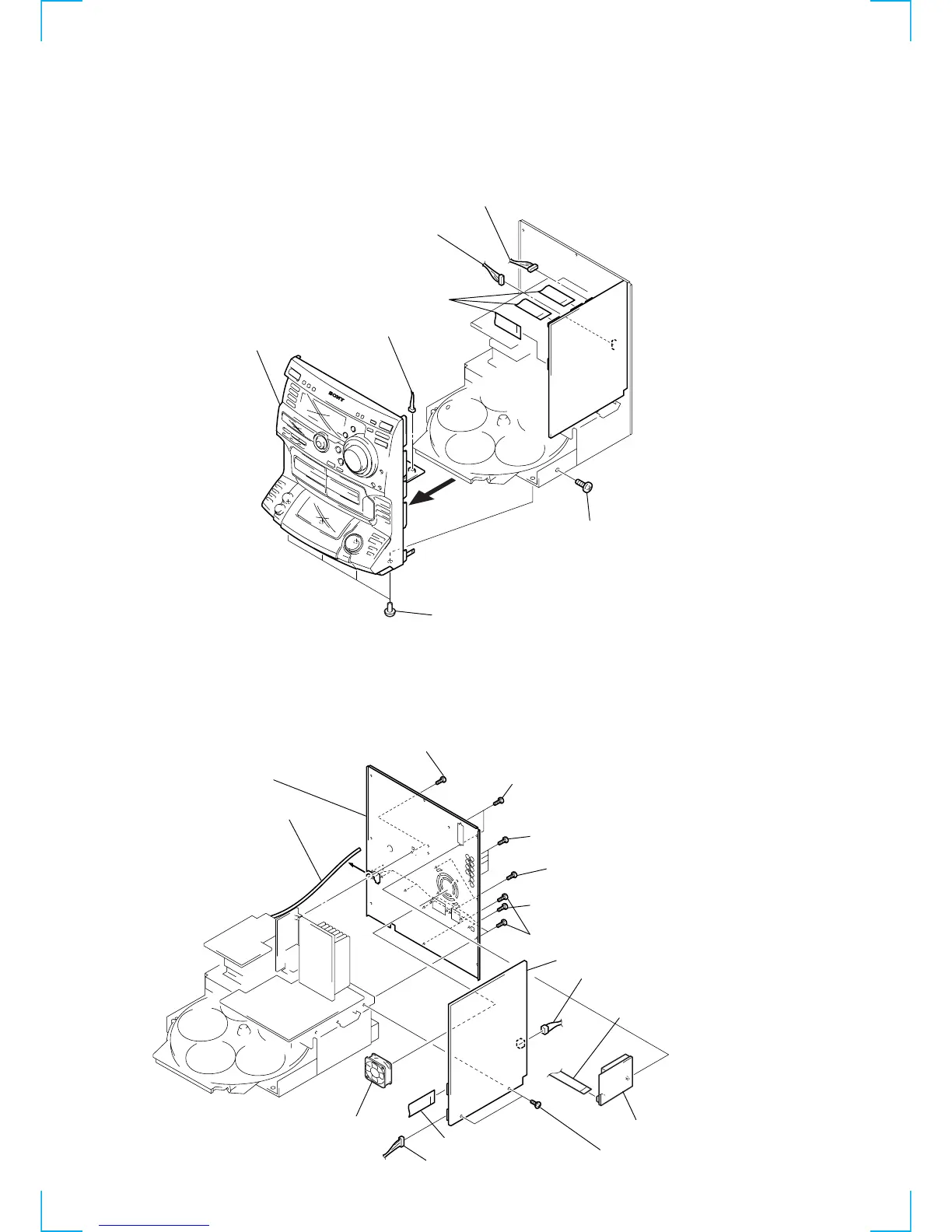

1 Three flat type wires
(CN303,CN304,CN431)
2 Connector (CN702)
3 Connector (CN452)
4 Connector (CN802)
7 Front panel
5 Screw (BVTP 3x8
)
6 Four screw (BVTP 3x8)
4 Connector (CN412)
5 Flat type wire (CN411)
1 Flat type wire (CN1
)
3 Tuner unit
2 Two screws (BVTP 3x8)
7 Seven screws (BVTP 3x8)
!¡ Fan motor
(HCD-DR8AV)
!£ Power cord
!¢ Back panel
8 Five screws (BVTP 3x8)
6 Connector (CN903)
(HCD-DR8AV)
!§ Main board
!∞ Two screws (BVTP 3x8
)
0 Two screws (BVTP 3x8)
(HCD-DR8AV)
!™ Screw (BVTP 3x8)
(HCD-W900AV)
9 Four screws (BVTP 3x8)
