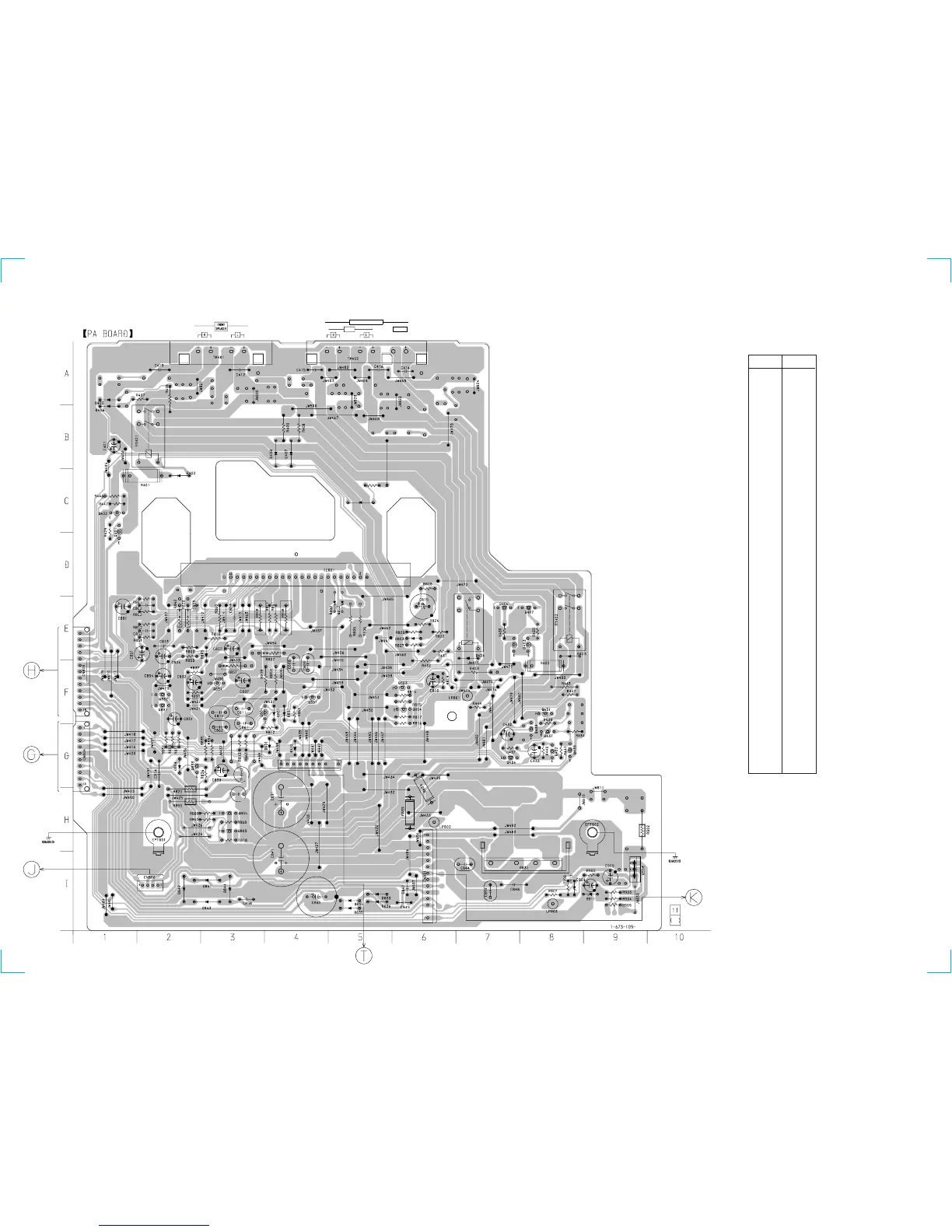

7-15. PRINTED WIRING BOARD POWER SECTION (DR8AV model)
• Semiconductor
Location
D401 G-4
D402 C-2
D403 E-8
D405 A-1
D406 B-1
D409 C-5
D801 F-4
D802 E-5
D803 E-6
D823
D831 I-8
D833 I-5
D834 I-5
D835 I-5
D836 I-5
D841 I-3
D842 I-2
D843 I-3
D844 I-3
D851 F-4
D852 E-5
D911 I-9
D912 I-8
IC801 D-4
Q401 C-1
Q402 C-1
Q403 E-8
Q404 E-7
Q406 E-7
Q407 E-8
Q431 F-8
Q432 G-8
Q433 G-8
Q434 G-7
Q437 G-8
Q439 G-8
Q801 F-4
Q803 F-6
Q804 F-6
Q805 H-3
Q831 F-2
Q832 F-2
Q833 G-2
Q834 F-3
Q851 F-4
Q855 H-3
Q903 I-9
Ref. No. Location
• Refer to page 19 for Circuit Boards Location.
(Page 42)
(Page 42)
(Page 91)
(Page 101)
(Page 99)
REAR
SORROUND SPEAKER
CENTER
CN805
16
RY403
R450
D409
Q404
15
