Sony HCD-DR8AV - Printed Wiring Board - Power Section (W900 AV); PA Board Layout

HCD-DR8AV/W900AV
— 63 — — 64 —

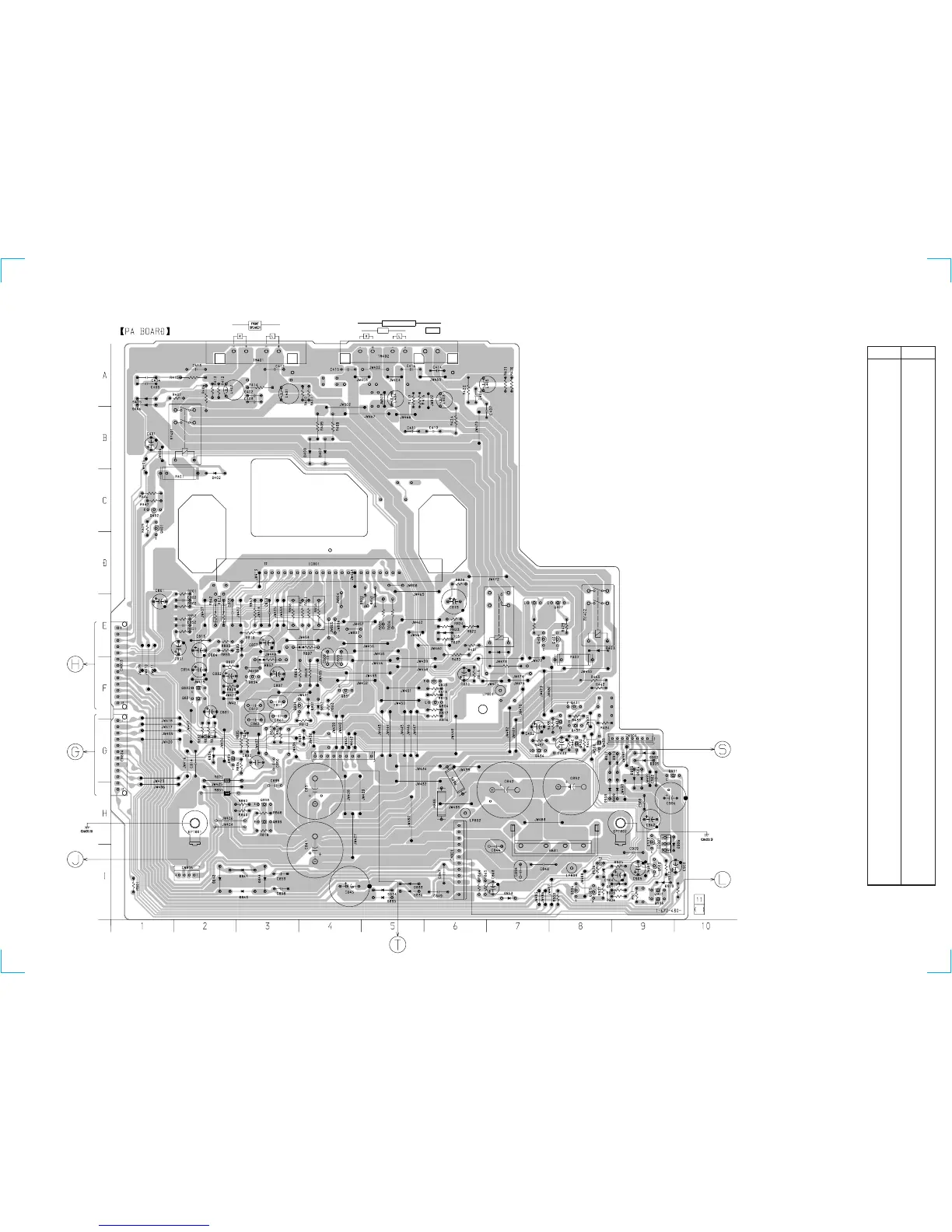

7-16. PRINTED WIRING BOARD POWER SECTION (W900AV model)
• Semiconductor
Location
D401 G-4
D402 C-2
D403 E-8
D405 A-1
D406 F-4
D801 F-4
D803 E-6
D804 G-2
D805 E-3
D831 I-8
D833 I-5
D834 I-5
D835 I-5
D836 I-5
D841 I-3
D842 I-2
D843 I-3
D844 I-3
D851 F-4
D902 G-9
D903 G-9
D904 G-9
D905 G-9
D906 H-9
D907 G-9
D908 H-9
D909 H-9
D910 G-9
D911 I-9
D912 I-8
D913 I-9
IC801 D-4
IC901 H-9
Q401 C-1
Q402 C-1
Q403 E-8
Q404 E-7
Q406 E-7
Q407 E-8
Q431 F-8
Q432 G-8
Q433 G-8
Q434 G-7
Q437 G-8
Q439 G-8
Q801 F-4
Q803 F-6
Q804 F-6
Q805 H-3
Q831 F-2
Q832 F-2
Q833 G-2
Q834 F-3
Q851 F-4
Q855 H-3
Q901 G-10
Q902 H-9
Q903 I-9
Q904 I-8
Q905 I-8
Q906 I-9
Q907 I-9
Ref. No. Location
(Page 42)
(Page 42)
(Page 91)
(Page 101)
(Page 95)
(Page 96)
REAR
SORROUND SPEAKER
CENTER
CN805
16
R403
R902
R430
Q406
RY403
24
• Refer to page 19 for Circuit Boards Location.
