Sony HCD-DZ100 - Board Level Disassembly; I;O Board, DC Fan, and DMB11 Board Removal

13
HCD-DZ100

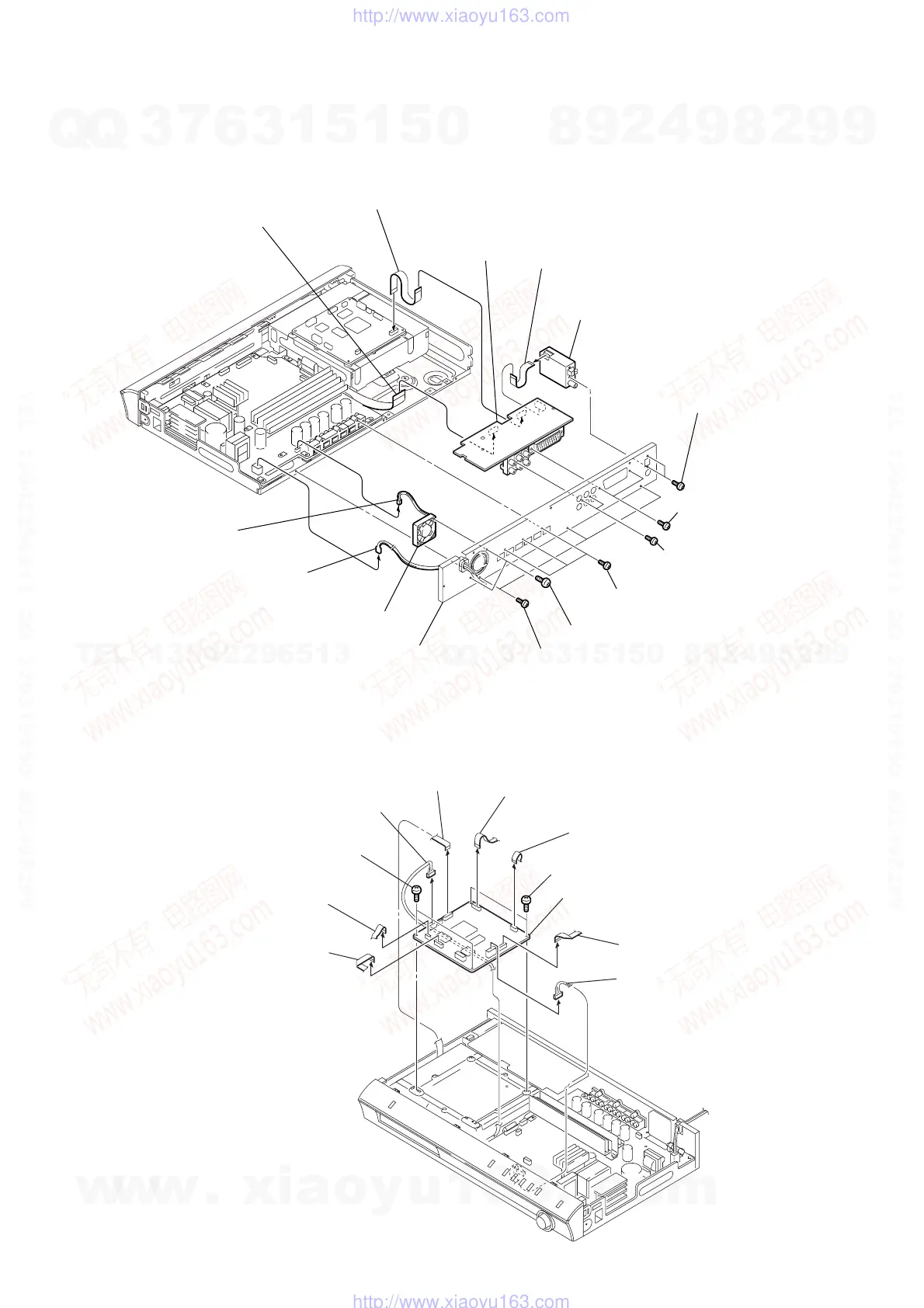

3-5. I/O BOARD, DC FAN
3-6. DMB11 BOARD
2 connector
(CN300)
1 connector
(CN901)
9 DC fan
qf tuner unit
qs I/O board
7 back panel
3 wire (flat type)
13core (CN201)
qa wire (flat type)
11core or 9core (CN101)
4 wire (flat type)
23core (CN601)
q; two screws (+BV 3)
(AEP,UK and Russian models)
q; two screws (+BV 3)
(Other models)
6 three screws (+BV 3)
5 three screws (+BV 3)
qd two screws (+BV 3)
8 two screws (BVTT 4 × 8)
qa DMB11 board
3 connector
(CN201)
8 connector
(CN401)
4 wire (flat type)
24core (CN101)
5 wire (flat type)
13core (CN301)
7 wire (flat type)
11core (CN4501)
6 wire (flat type)
7core (CN302)
1 wire (flat type)
13core (CN106)
2 wire (flat type)
5core (CN202)
9 two screws (+BV 3)
0 two screws (+BV 3)
