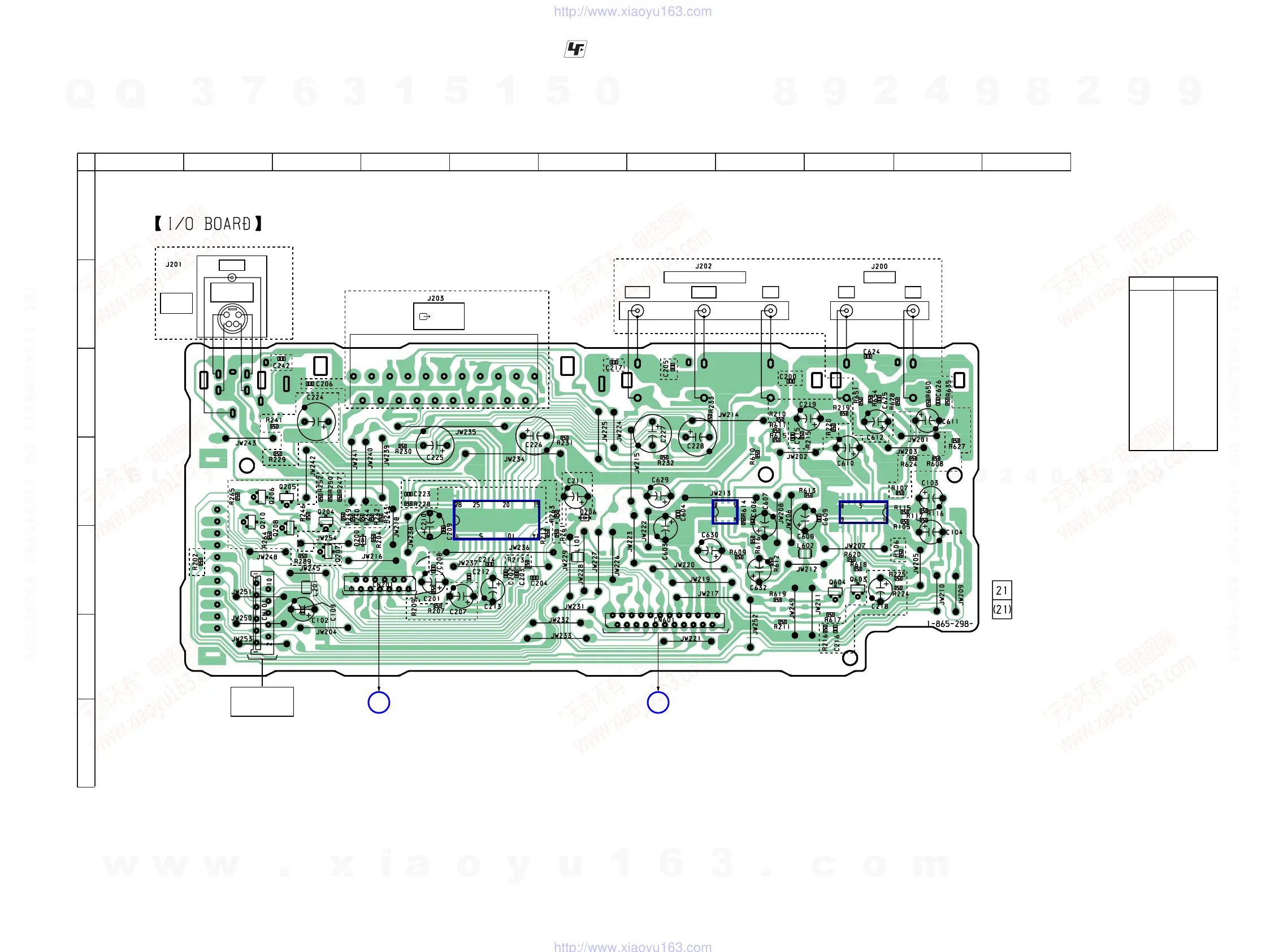

5-24. PRINTED WIRING BOARD – I/O BOARD –
• See page 23 for Circuit Boards Location.
:Uses unleaded solder.
IC602
IC603
IC201
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
AEP,UK,RU
EXCEPT AEP,UK,RU
EXCEPT AEP,UK,RU
VIDEO
S VIDEO
(DVD ONLY)
EXCEPT AEP,UK,RU
EXCEPT AEP,UK,RU
DMB11 BOARD
CN301
(Page 29)
TUNER UNIT
EXCEPT AEP,UK,RU
EXCEPT
AEP,UK,RU
EXCEPT AEP,UK,RU
EXCEPT
AEP,UK,RU
EXCEPT
AEP,UK,RU
EXCEPT AEP,UK,RU
E
E
E
E
E
E
E
E
I
MAIN BOARD
CN507
(Page 36)
F
34
12
MONITOR
OUT
121
220
EURO AV
OUTPUT
(TO TV)
PR/CR PB/CB
COMPONENT VIDEO OUT SAT
Y L R
12
A
B
C
D
E
G
F
34567 9
8
10
11
• Semiconductor
Location
Ref. No. Location
D200 E-3
D206 D-6
IC201 D-5
IC602 D-9
IC603 D-7
Q204 D-3
Q205 D-3
Q206 D-2
Q207 E-3
Q208 E-3
Q210 D-2
Q603 E-9
Q604 E-9
