Sony HCD-DZ100 - Drive System Disassembly; Belt and MS-203 Board Removal

16
HCD-DZ100
1 two claws
5 three claws
7 MS-203 board
6 DC motor
3 belt
2 chuck cam
4 screw
(M 1.7
× 2.5)

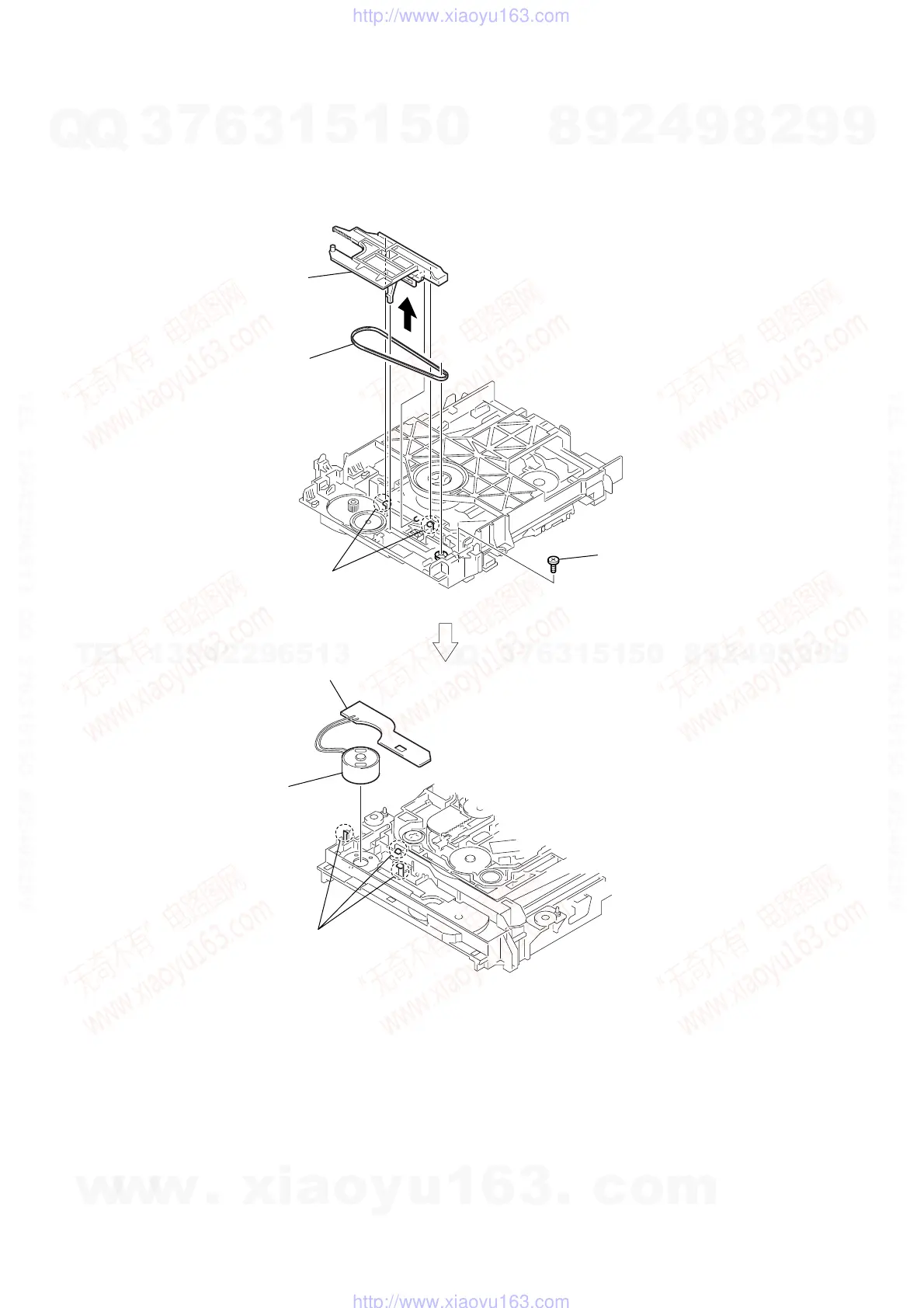

3-10. BELT, MS-203 BOARD
