Sony HCD-DZ100 - Optical System Disassembly; Optical Pick-up Removal

17
HCD-DZ100

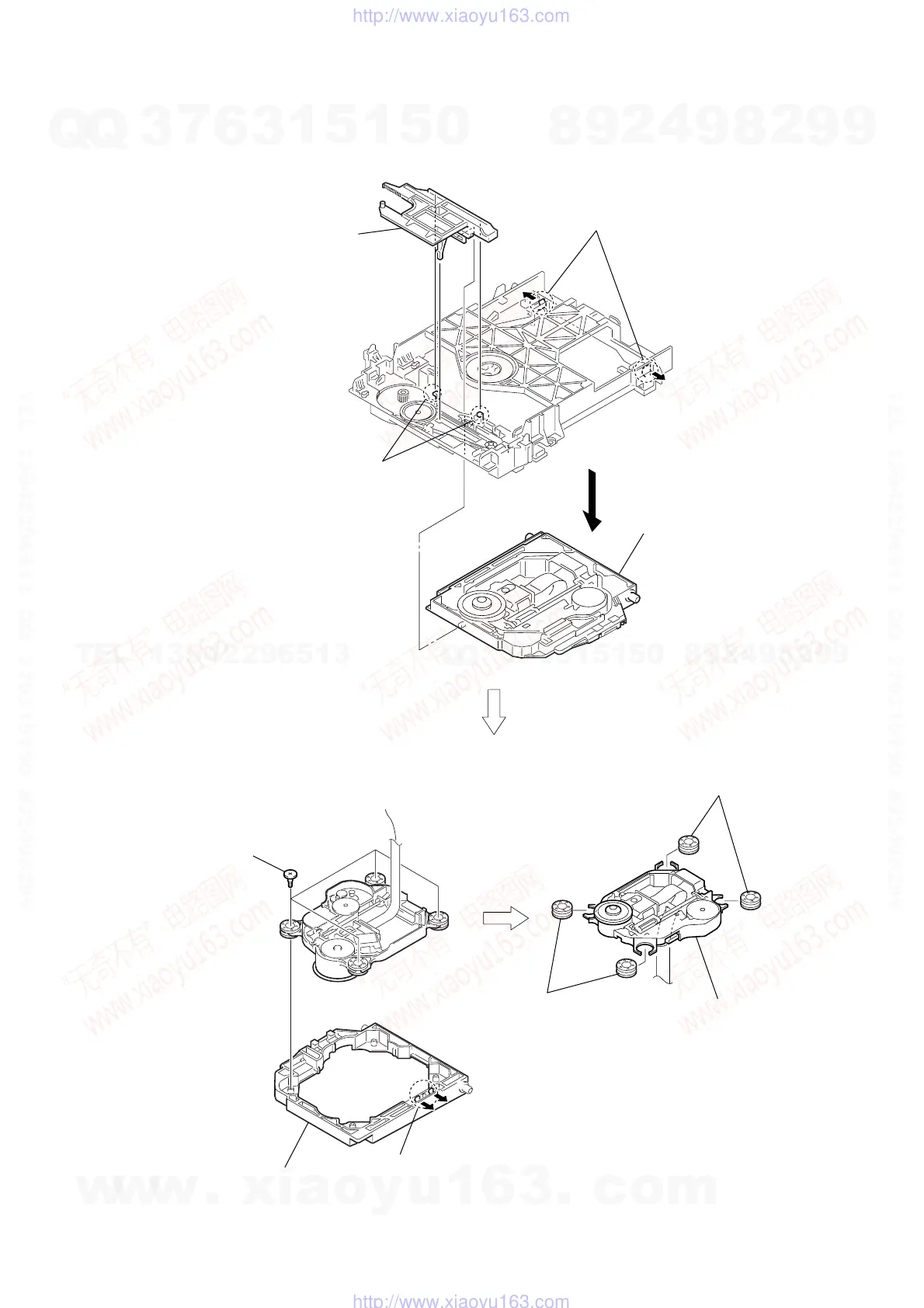

3-11. OPTICAL PICK-UP (KHM-310CAA/C2NP)
1 two claws
3 two claws
2 chuck cam
4 base unit
5 two claws
7 bu holder
8 two insulators
9 two insulators
6 four insulator screws
0 optical pick-up
(KHM-310CAA/C2NP)
