63
HCD-DZ100
SECTION 6
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND : Canadian model
E32 : 110-240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

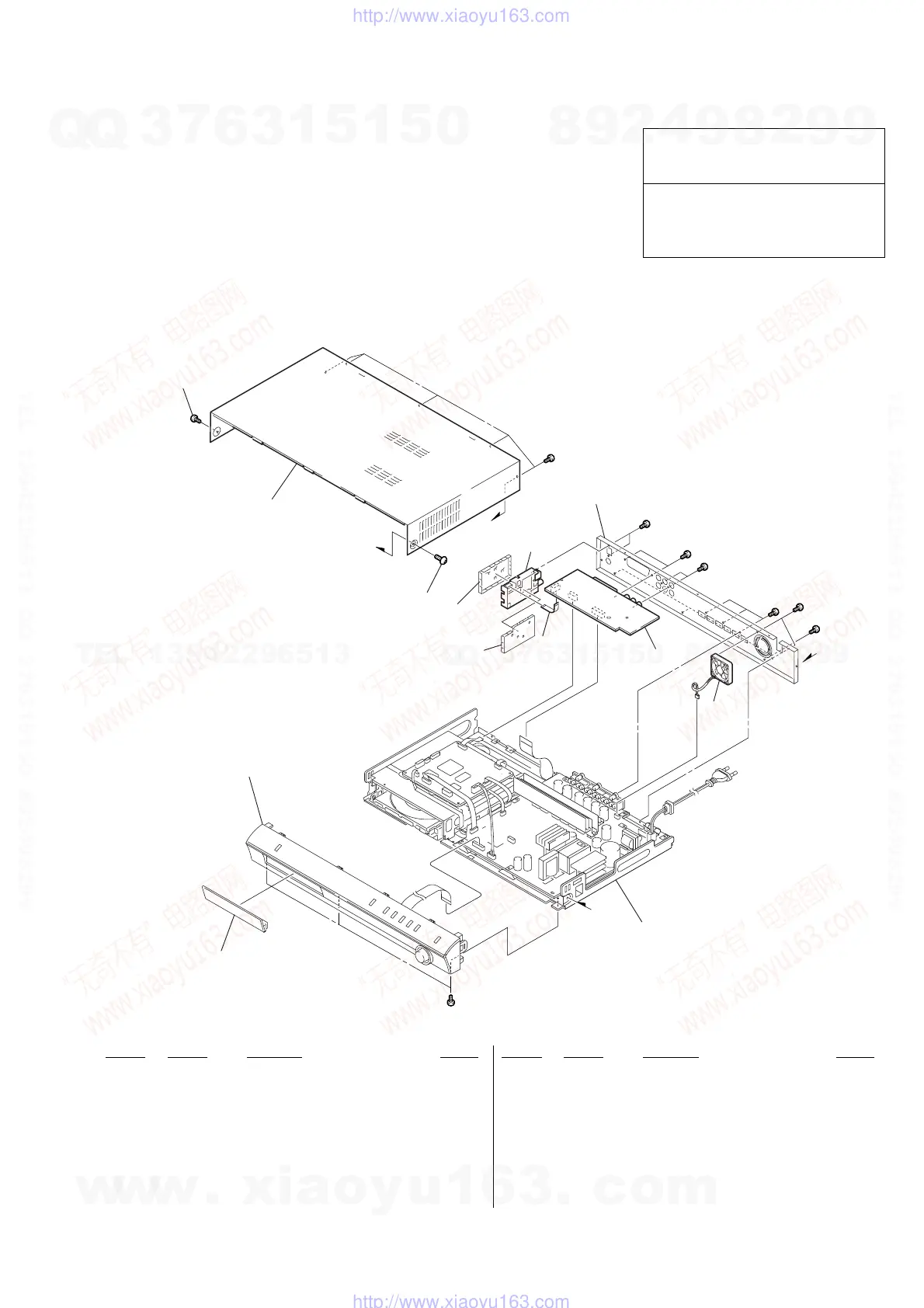

6-1. OVERALL SECTION
1 1-828-952-11 WIRE (FLAT TYPE) (9 CORE)(EXCEPT AEP, UK)
1 1-828-962-11 WIRE (FLAT TYPE) (11 CORE) (AEP, UK)
2 2-546-005-01 CASE
3 3-363-099-22 SCREW (CASE 3 TP2)
(EXCEPT US, AEP, UK, RU, KR)
3 3-363-099-51 SCREW (CASE 3 TP2) (US, AEP, UK, RU, KR)
4 A-1074-634-A TUNER UNIT (DTP-005) (AEP, UK)
4 A-1074-640-A TUNER UNIT (DTP-005) (US, CND)
4 A-1074-641-A TUNER UNIT (DTP-005) (EA, MX, SP, E32, AUS)
4 A-1074-643-A TUNER UNIT (DTP-005) (RU, KR)
5 1-787-331-11 FAN, D.C.
6 A-1107-216-A I/O BOARD, COMPLETE (AEP, UK)
6 A-1114-356-A I/O BOARD, COMPLETE (RU)
6 A-1121-675-A I/O BOARD, COMPLETE (EXCEPT AEP, UK, RU)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ver. 1.2
b
a
b
a
6
1
4
3
2
5
3
not supplied
not supplied
chassis section
#1
#1
#1
#1
#1
#1
#2
#1
front panel section
not supplied
not supplied
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
