65
HCD-DZ100
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 3-077-331-01 +BV3 (3-CR)
102 1-830-546-11 WIRE (FLAT TYPE) (11 CORE)
103 3-077-331-21 +BV3 (3-CR)
✩ 104 A-1106-686-A DMB11 BOARD, COMPLETE (AEP, UK, RU)
✩ 104 A-1121-678-A DMB11 BOARD, COMPLETE (EA, AUS)
✩ 104 A-1121-862-A DMB11 BOARD, COMPLETE (SP)
✩ 104 A-1121-882-A DMB11 BOARD, COMPLETE (KR)
✩ 104 A-1121-906-A DMB11 BOARD, COMPLETE
(US, CND, MX, E32)
105 3-703-244-00 BUSHING (2104), CORD
0 106 1-696-848-22 CORD, POWER (AUS)
0 106 1-769-079-41 CORD, POWER (KR)
0 106 1-775-789-31 CORD, POWER (MX)
0 106 1-777-071-83 CORD, POWER
(EXCEPT US, CND, MX, AUS, KR)
0 106 1-783-531-12 CORD, POWER (CND)
0 106 1-830-189-11 CORD, POWER (US)
107 A-1106-660-A MAIN BOARD, COMPLETE (AEP, UK)
107 A-1107-580-A MAIN BOARD, COMPLETE (RU)
107 A-1121-672-A MAIN BOARD, COMPLETE (EA)
107 A-1121-859-A MAIN BOARD, COMPLETE (SP)
107 A-1121-871-A MAIN BOARD, COMPLETE (AUS)
107 A-1121-879-A MAIN BOARD, COMPLETE (KR)
107 A-1121-899-A MAIN BOARD, COMPLETE (E32)
107 A-1121-919-A MAIN BOARD, COMPLETE (MX)
107 A-1121-932-A MAIN BOARD, COMPLETE (US, CND)
108 4-254-954-01 SHEET (DMB), RADIATION
109 4-244-969-01 FOOT
110 1-830-464-11 WIRE (FLAT TYPE) (23 CORE)
111 3-233-819-01 BRACKET (PWB)
112 1-830-549-11 WIRE (FLAT TYPE) (5 CORE)
113 1-830-545-11 WIRE (FLAT TYPE) (11 CORE)
114 1-830-548-11 WIRE (FLAT TYPE) (13 CORE)
115 1-830-547-11 WIRE (FLAT TYPE) (7 CORE)
116 2-597-972-21 SHEET, RADIATION
117 2-597-972-11 SHEET, RADIATION
0 F901 1-532-506-33 FUSE (T6.3AL/250V)
(EXCEPT US, CND, MX, E32)
0 F901 1-532-749-11 FUSE, GLASS TUBE (T8AL/125V) (US)
0 F901 1-533-949-33 FUSE, CYLINDRICAL (T8AL/250V) (TIME LUG)
(E32)
0 F901 1-576-537-12 FUSE, GLASS TUBE (DIA.5) (T8AL/125V)
(CND, MX)
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

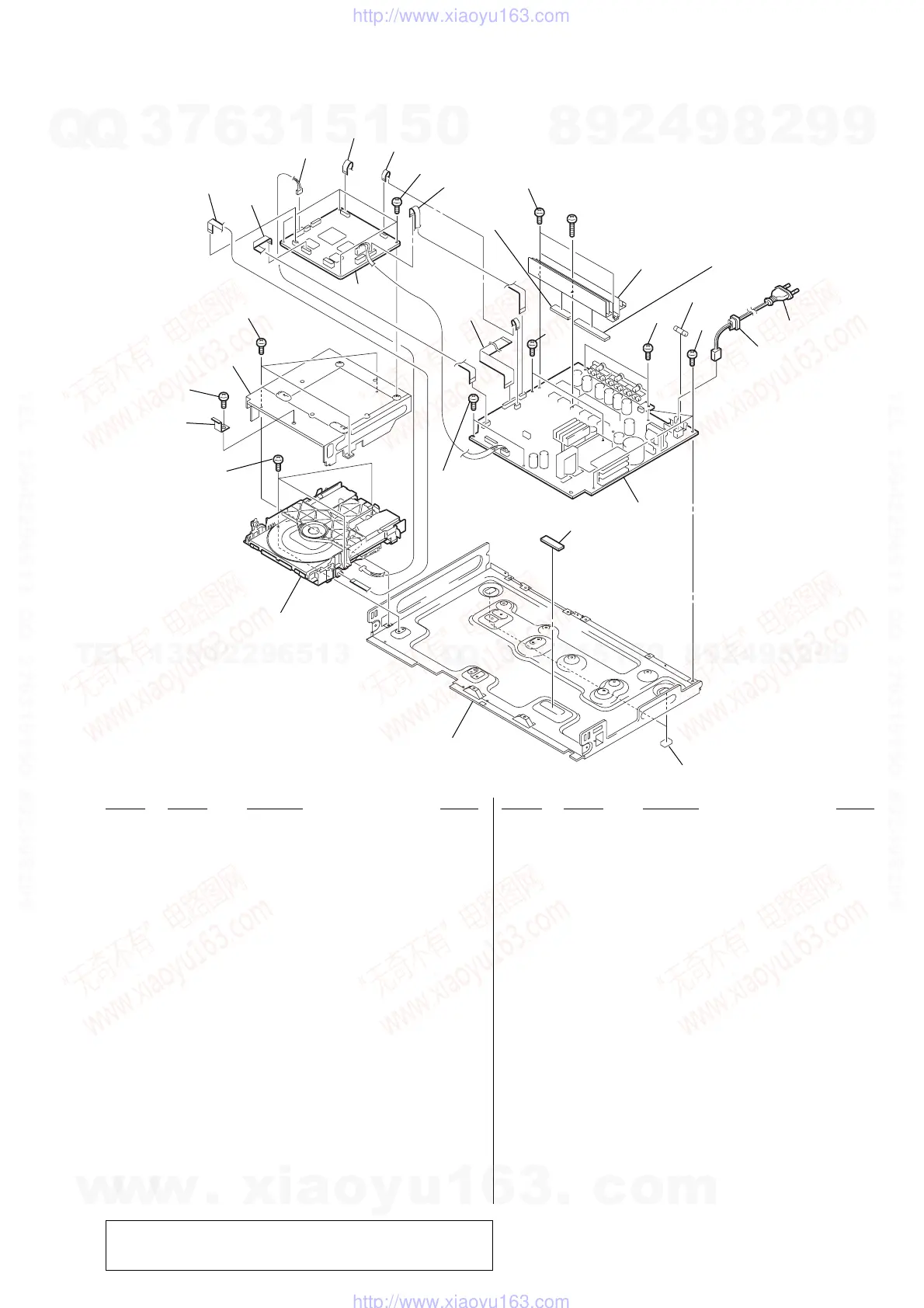

6-3. CHASSIS SECTION
101
101
101
111
103
110
104
112
113
114
115
102
116
117
103
101
103
103
103
105
107
109
108
106
not supplied
not supplied
not
supplied
not
supplied
F901
#3
DVD mechanism
deck section
(CDM85-DVBU102)
Ver. 1.4
✩ New part of EEP ROM (IC103) on the DMB11 board cannot be used.
Therefore, if the mounted DMB11 board (A-1121-906-A, etc.) is replaced,
exchange new EEP ROM (IC103) with that used before the replacement.
