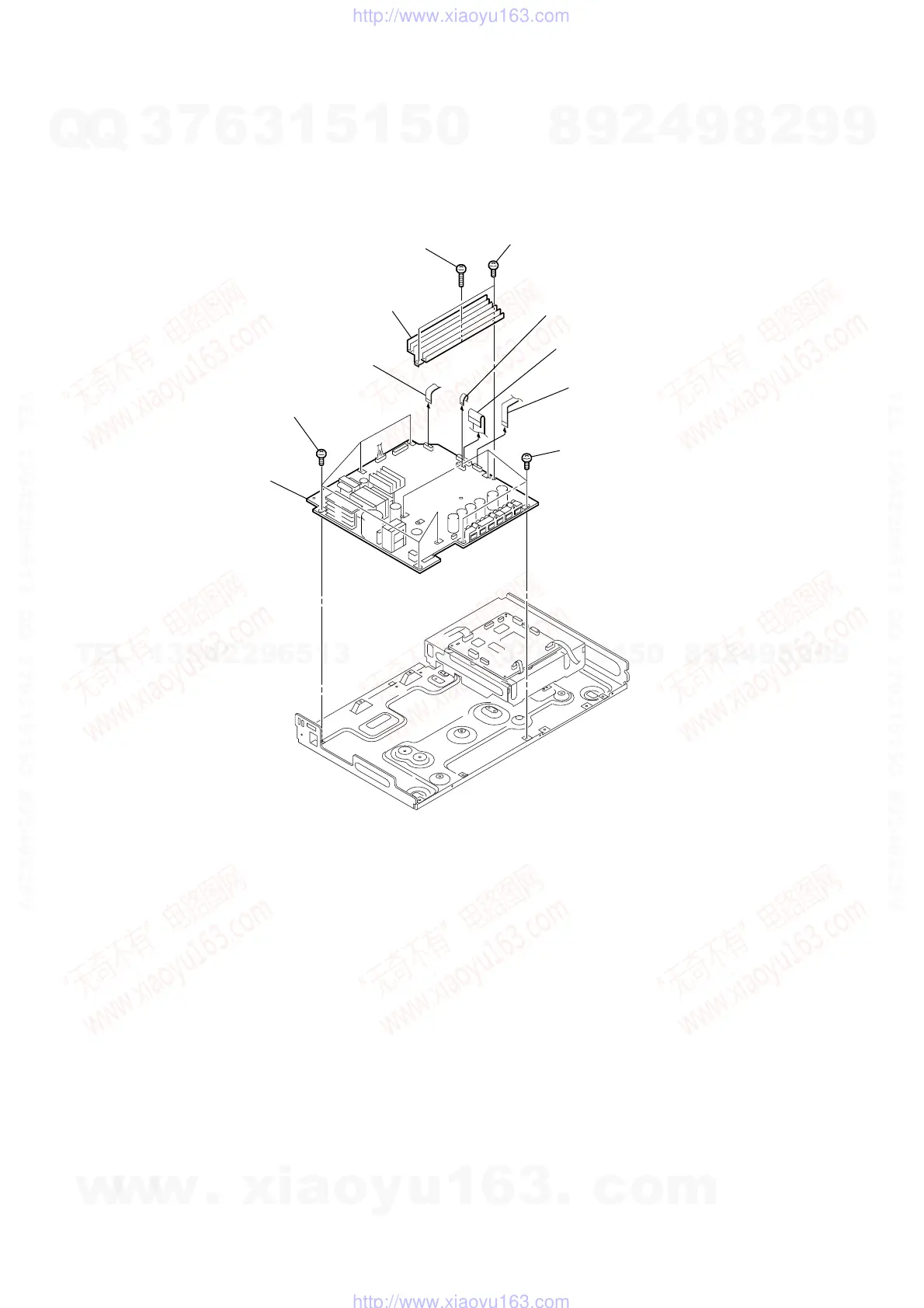

3-7. MAIN BOARD
0 MAIN board
3 heat sink (AMP)
4 wire (flat type)
11core (CN505)
5 wire (flat type)
7core (CN503)
6 wire (flat type)
23core (CN507)
7 wire (flat type)
11core (CN504)
8 four screws (+BV 3)
1 two screws (+BV 3)
9 five screws (+BV 3)
2 screw (BVTP 3 × 12)
