Sony HCD-DZ100 - Mechanism Disassembly; DVD Mechanism Deck and Tray Removal

15
HCD-DZ100

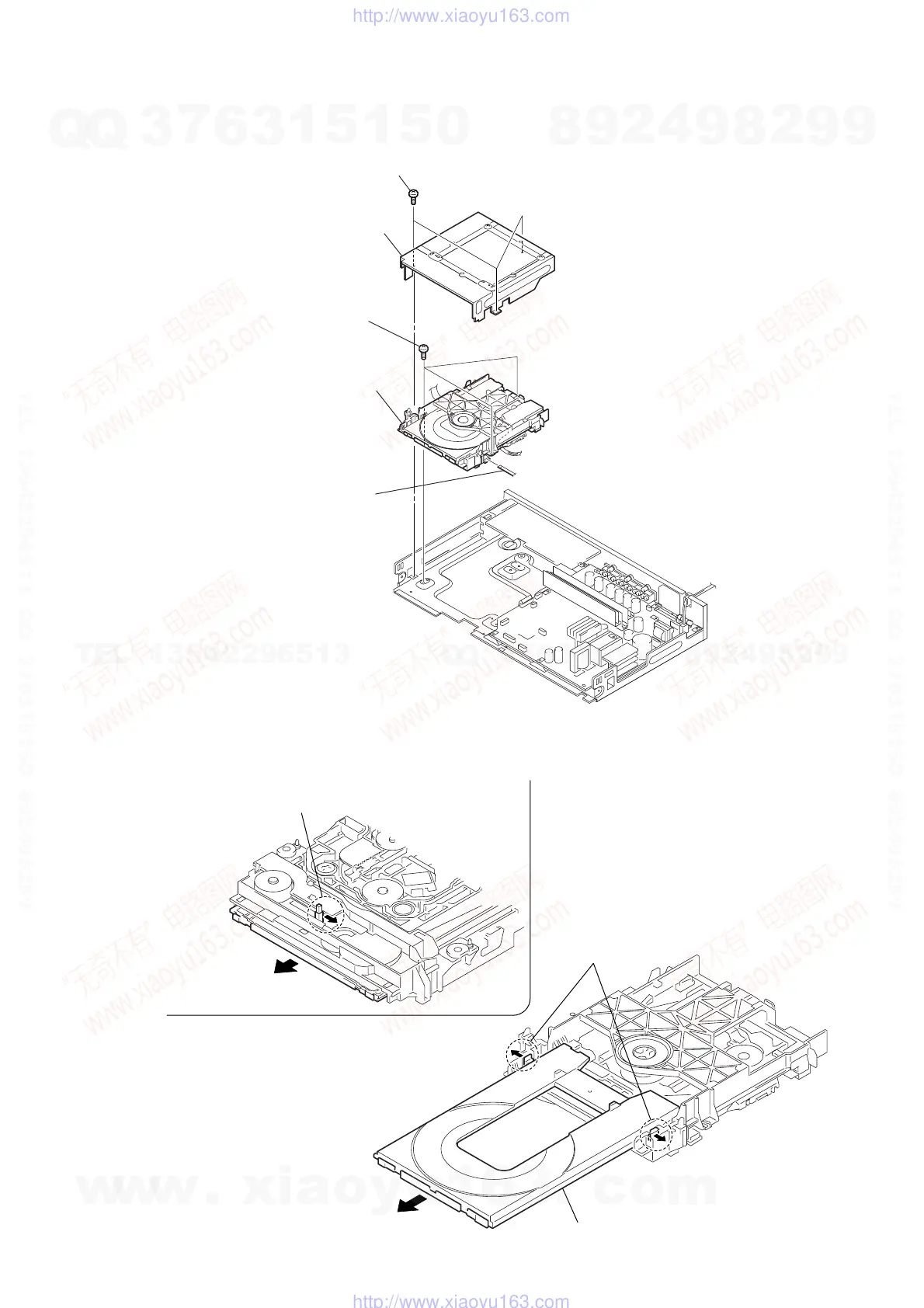

3-8. DVD MECHANISM DECK (CDM85-DVBU102)
2 dmb bracket
1 t hree screws (+BV 3)
5 DVD mechanism deck
(CDM85-DVBU102)
3 three screws (+BV 3)
4 wire (flat type) 5 core
4
2
3
two claws
5 tray
1 Move the chuck cam
in the direction of the arrow.
bottom side
3-9. TRAY
