Sony HCD-DZ100 - Printed Wiring Boards; DMB11 Board (Side B) Layout

3030
HCD-DZ100
HCD-DZ100

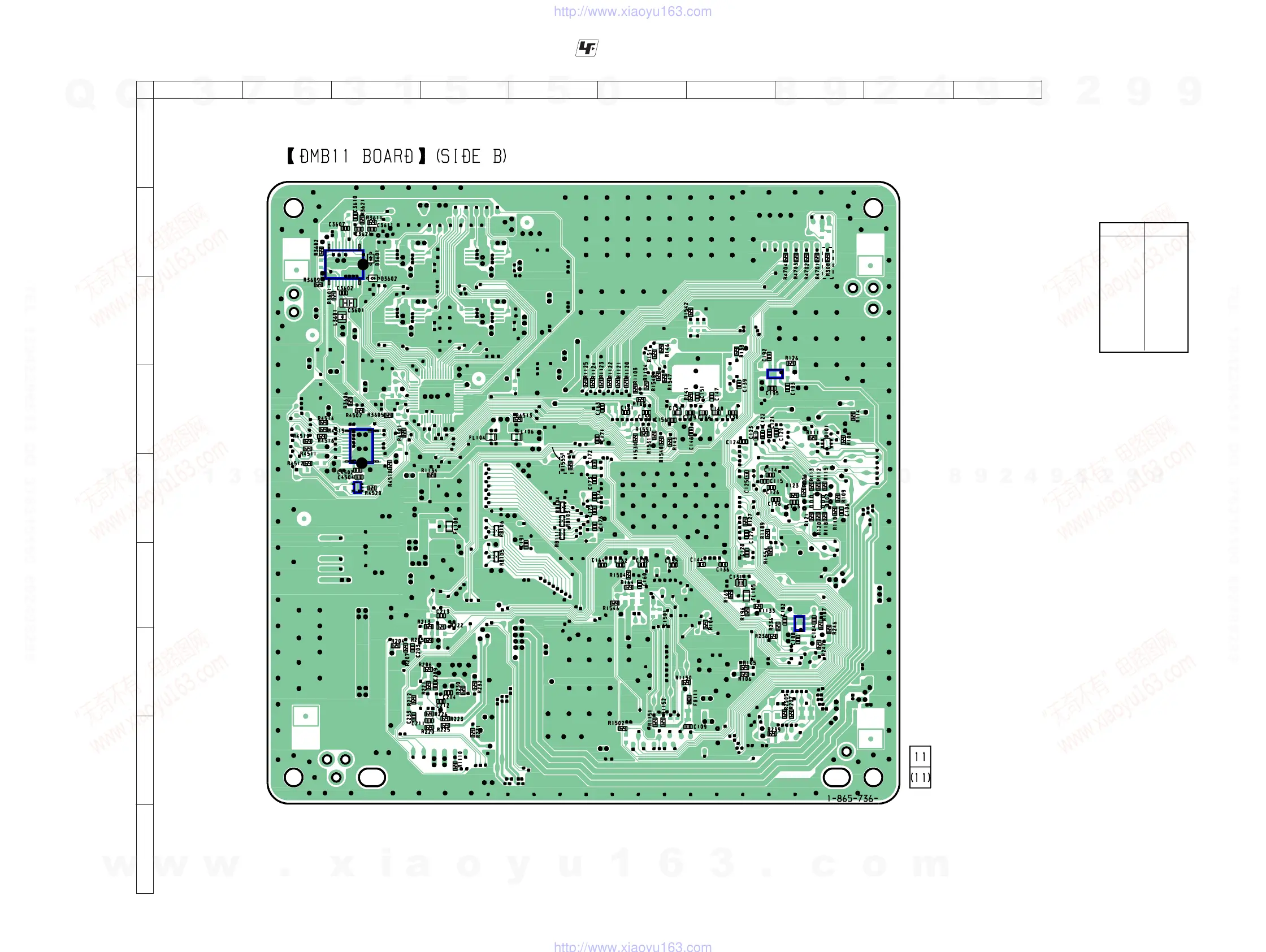

5-7. PRINTED WIRING BOARD – DMB11 BOARD (SIDE B) –
• See page 23 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D3601 B-3
D3602 C-3
IC105 F-8
IC107 D-7
IC3601 B-3
IC4501 D-3
IC4502 E-3
Q101 D-8
Q102 E-8
:Uses unleaded solder.
IC3601
IC4501
IC4502
IC107
IC105
AEP,UK,RU
AEP,UK,RU
12
A
B
C
D
E
G
H
F
34567 9
8
10
I
