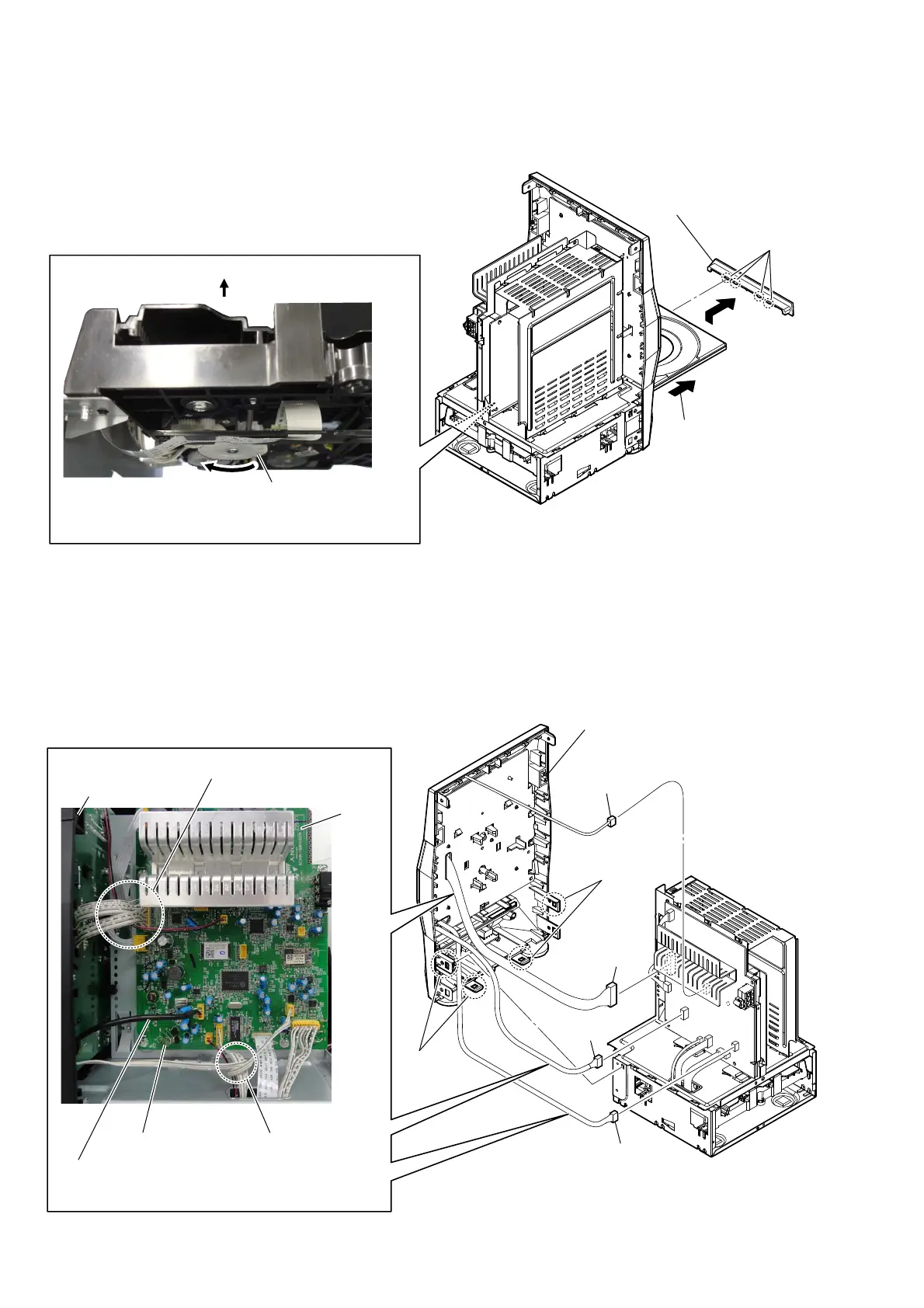

2-4. CD DOOR
2-5. FRONT PANEL BLOCK
4 CD door
3 four
claws
2 Pull out the disc tray.
– Rear view –
1 Turn the traverse gear
in the direction of the
arrow.
top side
– Rear bottom view –
5 two
claws
4 connector
(XP8)
5 two
claws
6
front panel block
– Rear right view –
3 connector
(XP15)
2 connector
(XP7)
1 connector
(XP19)
Wire setting
– Right view –
MAIN
board
front panel block
resistor
Note 1:
Wire from NFC module
is lower.
Note 2:
Twist the wire around the
two wires from the loader
with FFC once.
Note 3:
When installing the wire,
be careful not to touch the
resistor.
