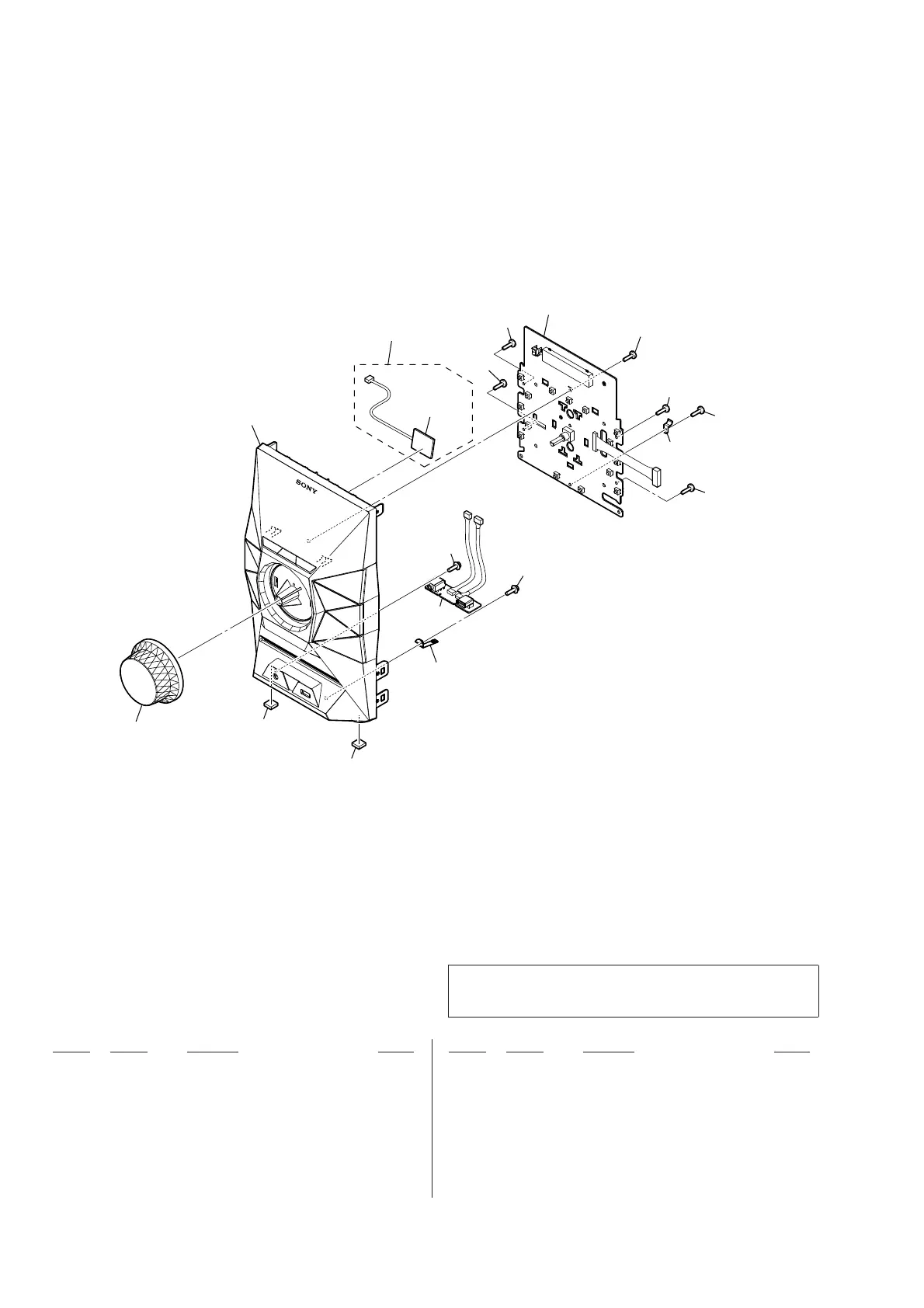

6-3. FRONT PANEL SECTION
101 4-475-810-01 VOL KNOB (BLACK)
102 X-2590-135-1 FRONT PANEL ASSY (ECL99BT: US, CND)
102 X-2590-136-1 FRONT PANEL ASSY
(ECL99BT: E2, E4, E51, E93, MX, AR, RU)
102 X-2590-137-1 FRONT PANEL ASSY (ECL99BT: UK)
102 X-2590-138-1 FRONT PANEL ASSY
(ECL77BT: E2, E4, E51, E93, MX, BR, AR)
102 X-2590-139-1 FRONT PANEL ASSY (ECL77BT: AEP, UK)
103 4-475-925-01 PAD (MAIN UNIT)
104 A-1970-496-A USB BOARD, COMPLETE (WITH HARNESS)
(Except US, CND, AEP, UK)
104 A-1970-498-A USB BOARD, COMPLETE (WITH HARNESS)
(US, CND, AEP, UK)
105 4-475-940-01 USB PWB SCREW (2.6X8)
106 4-476-448-01 SCREW (SILVER 3X8)
107 A-2059-241-A FRONT BOARD, COMPLETE (WITH HARNESS)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not
supplied
NFC module
(See Note)
106
101
107
106
106
included in Ref. No.155 on page 41
106
103
102
103
106
106
104
105
105
not supplied
Note: When replacing the MAIN board or the NFC module, be sure
replace both at the same time. The MAIN board or the NFC
module cannot replace with single.
