Sony HCD-ECL77BT - POWER Board

HCD-ECL77BT/ECL99BT
12

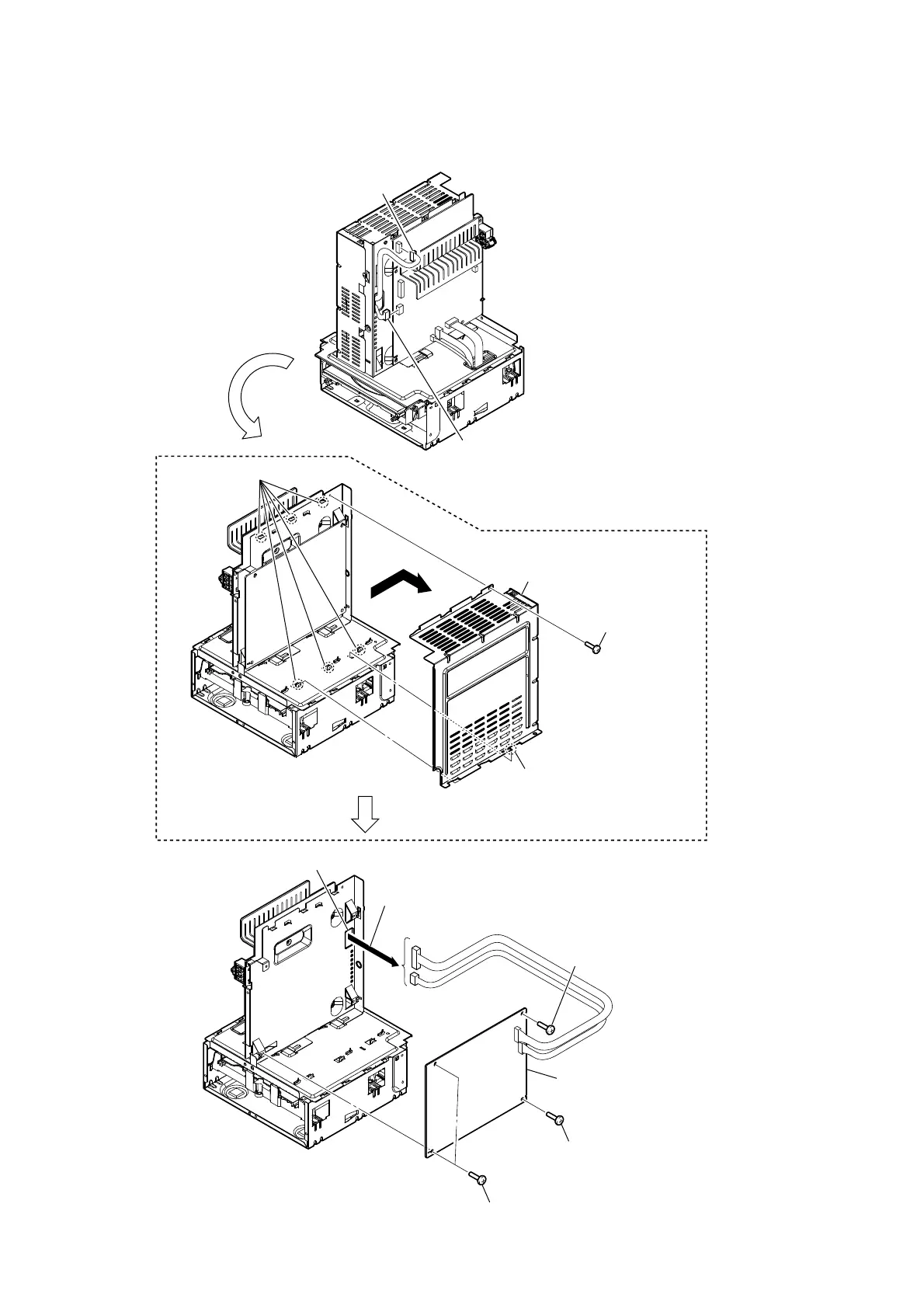

2-8. POWER BOARD
9 POWER board
2 connector
(XP20)
1 connector
(XP1)
8 Draw the wires out
of the hole.
hole
6 ECL7/9 shield cover
5
– Rear view –
4 six claws
4 claw
3 screw
(3 u 6)
7 screw
(3 u 6)
7 screw
(3 u 6)
7 two screws
(3 u 6)
– Rear view –
(Except US, Canadian)
