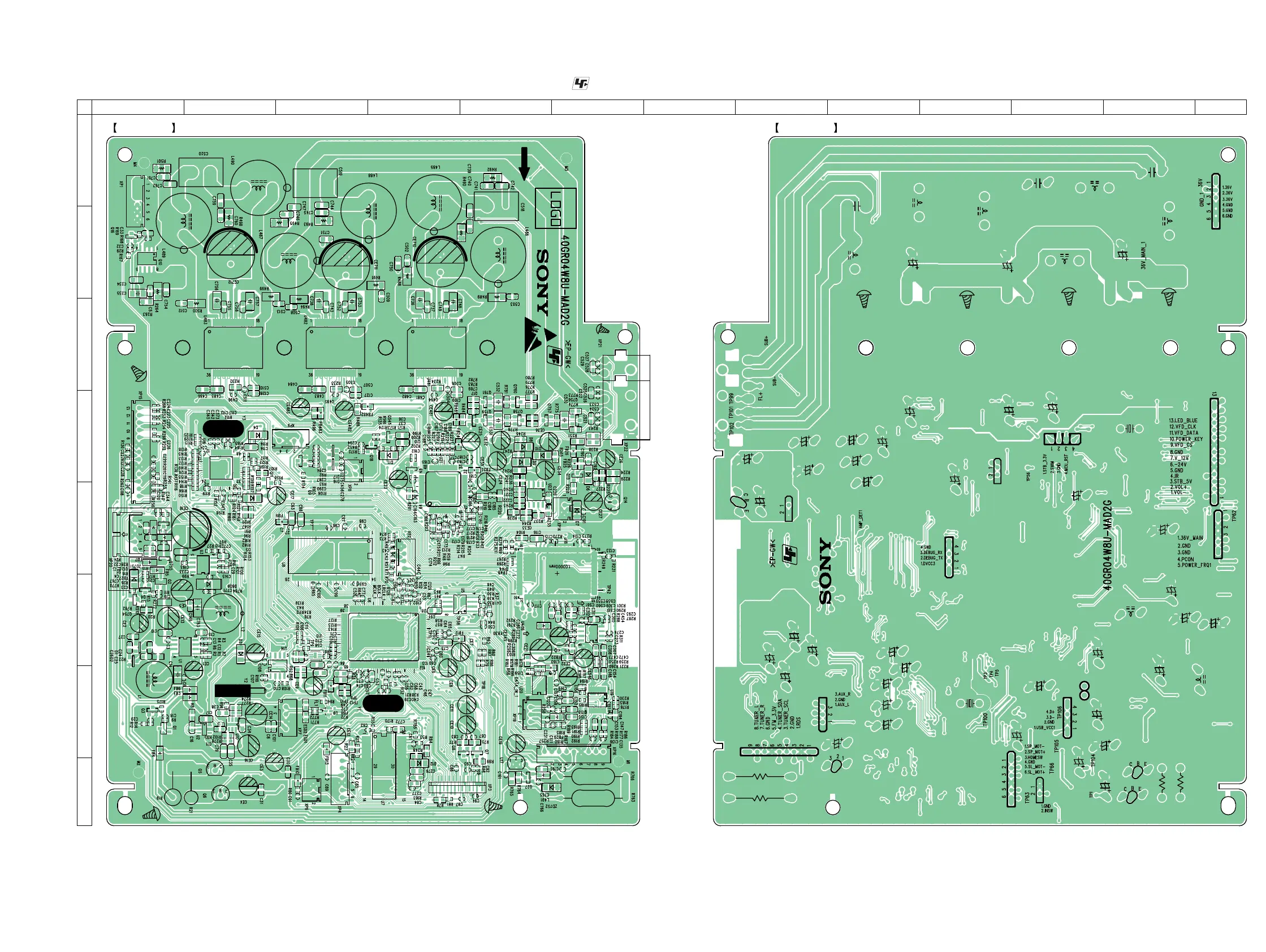

5-3. PRINTED WIRING BOARD - MAIN Board -
MAIN BOARD (COMPONENT SIDE) MAIN BOARD (CONDUCTOR SIDE)
A
B
C
D
E
F
G
H
1 2 3 4 5 6 7 8 9 10 11 12 13
• : Uses unleaded solder.
• See page 20 for Circuit Boards Location.
