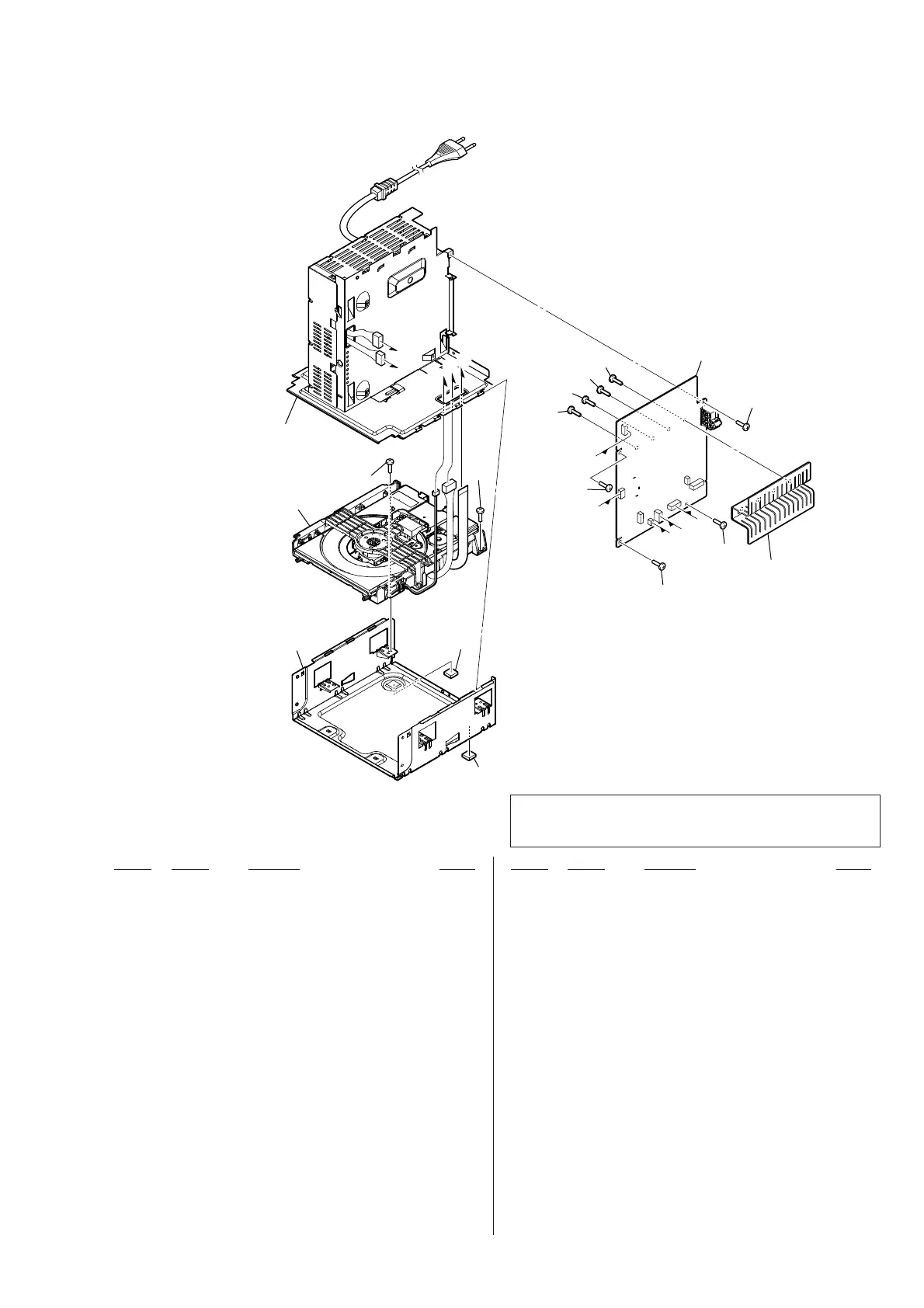

6-4. MAIN BOARD SECTION
151 4-475-925-01 PAD (MAIN UNIT)
152 4-476-448-01 SCREW (SILVER 3X8)
153 4-488-729-01 SCREW (3X6)
154 4-475-942-01 HEAT SINK SCREW (3X8)
155 A-2059-242-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: CND) (See Note)
155 A-2059-243-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: UK) (See Note)
155 A-2059-244-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: RU) (See Note)
155 A-2059-245-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: E4) (See Note)
155 A-2059-246-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: E93) (See Note)
155 A-2059-247-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: E2) (See Note)
155 A-2059-248-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: E51) (See Note)
155 A-2059-249-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: MX) (See Note)
155 A-2059-250-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: AEP) (See Note)
155 A-2059-251-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: UK) (See Note)
155 A-2059-252-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: E4) (See Note)
155 A-2059-253-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: E93) (See Note)
155 A-2059-254-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: E2) (See Note)
155 A-2059-255-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: E51) (See Note)
155 A-2059-256-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: MX) (See Note)
155 A-2059-257-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: BR) (See Note)
155 A-2059-258-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL77BT: AR) (See Note)
155 A-2059-259-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: US) (See Note)
155 A-2059-260-A MAIN BOARD, COMPLETE
(Including NFC module) (ECL99BT: AR) (See Note)
0 CDM1 A-1970-933-A LOADER WITH FFC (TDL-5)
(Including optical pick-up and fl exible fl at cable)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: When replacing the MAIN board or the NFC module, be sure
replace both at the same time. The MAIN board or the NFC
module cannot replace with single.
