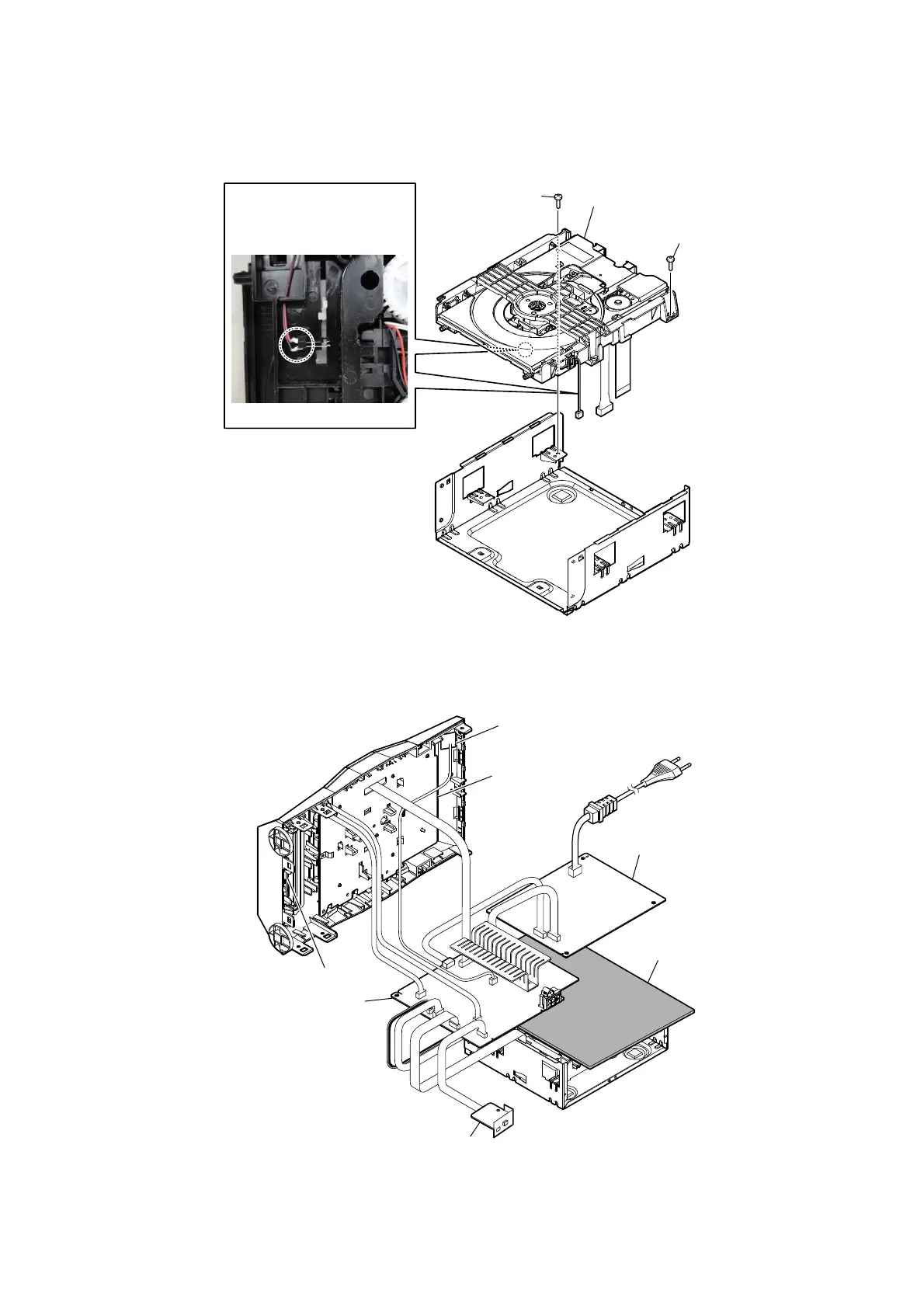

2-13. LOADER WITH FFC (TDL-5) (CDM1)
2-14. SERVICE POSITION
2 loader with FFC (TDL-5)
(CDM1)
– Bottom view –
1 screw
(silver 3 u 8)
1 screw
(silver 3 u 8)
Note:
The wire is soldered to the
terminal of the switch.
Be careful so that not cut
or bend the terminal.
MAIN board
POWER board
FRONT board
USB board
NFC module
insulating sheet
TUNER board
