HCD-ECL77BT/ECL99BT
13

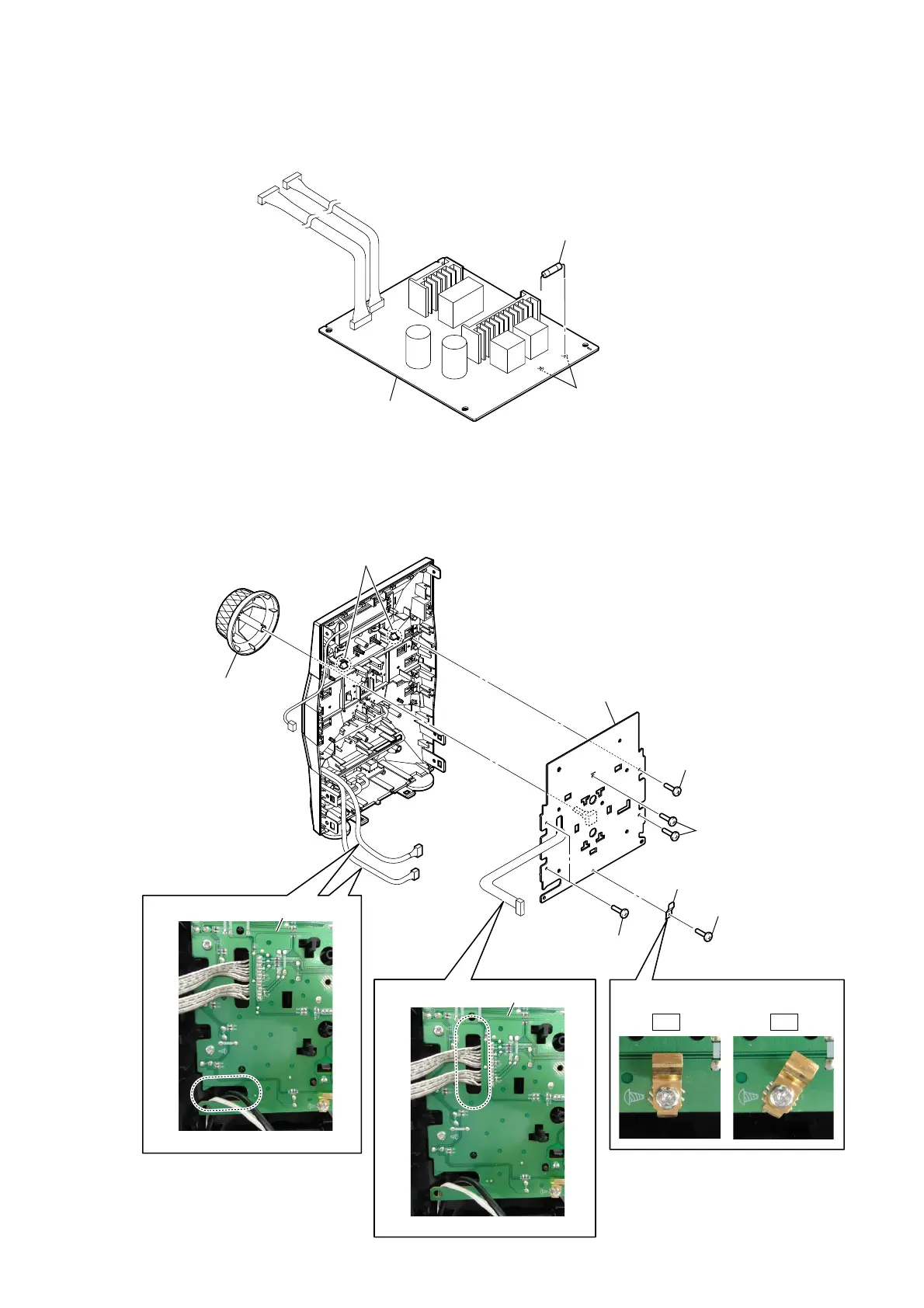

2-9. FUSE (F501)
2-10. FRONT BOARD
2 fuse (F501)
1 Remove the two solders.
POWER board
2 two screws
(silver 3 u 8)
2 two screws
(silver 3 u 8)
3 ground plate
5 FRONT board
4 two claws
1
VOL knob
– Front panel block rear view –
2 screw
(silver 3 u 8)
2 screw
(silver 3 u 8)
FRONT board
 Wire setting
 Ground plate setting
– Rear view –
FRONT board
 Wire setting
– Rear view –
OK NG
