Sony HCD-EP313 - Printed Wiring Board - MAIN Section (CONDUCTOR SIDE)

2121
HCD-EP313

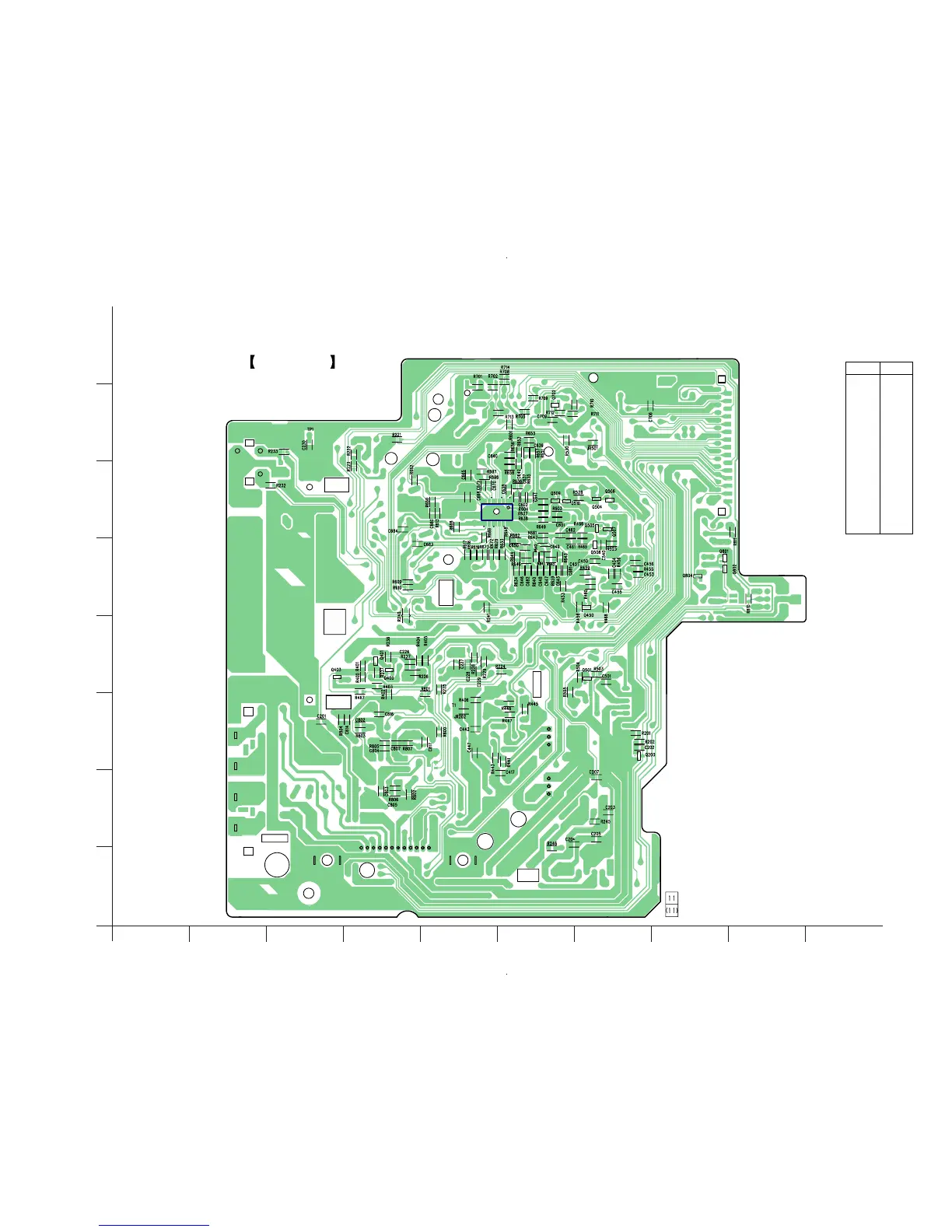

6-5. Printed Wiring Board – MAIN Section (CONDUCTOR SIDE) –
• See page 16 for Circuit Boards Location.
IC601
(CONDUCTOR SIDE)
114
2815
MAIN BOARD
1-688-567
12
A
E
D
C
B
F
G
H
3456 8
7910
Ref. No. Location
IC601 C-5
Q200 F-7
Q400 E-4
Q401 E-4
Q403 E-3
Q450 D-7
Q501 E-7
Q504 C-7
Q505 D-7
Q506 C-7
Q507 C-7
Q508 D-7
Q509 C-6
Q510 C-7
Q702 B-6
Q801 D-8
Q802 D-8
Q804 D-8
• Semiconductor
Location
