Sony HCD-EP313 - Front Panel Section Exploded View

33
HCD-EP313
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

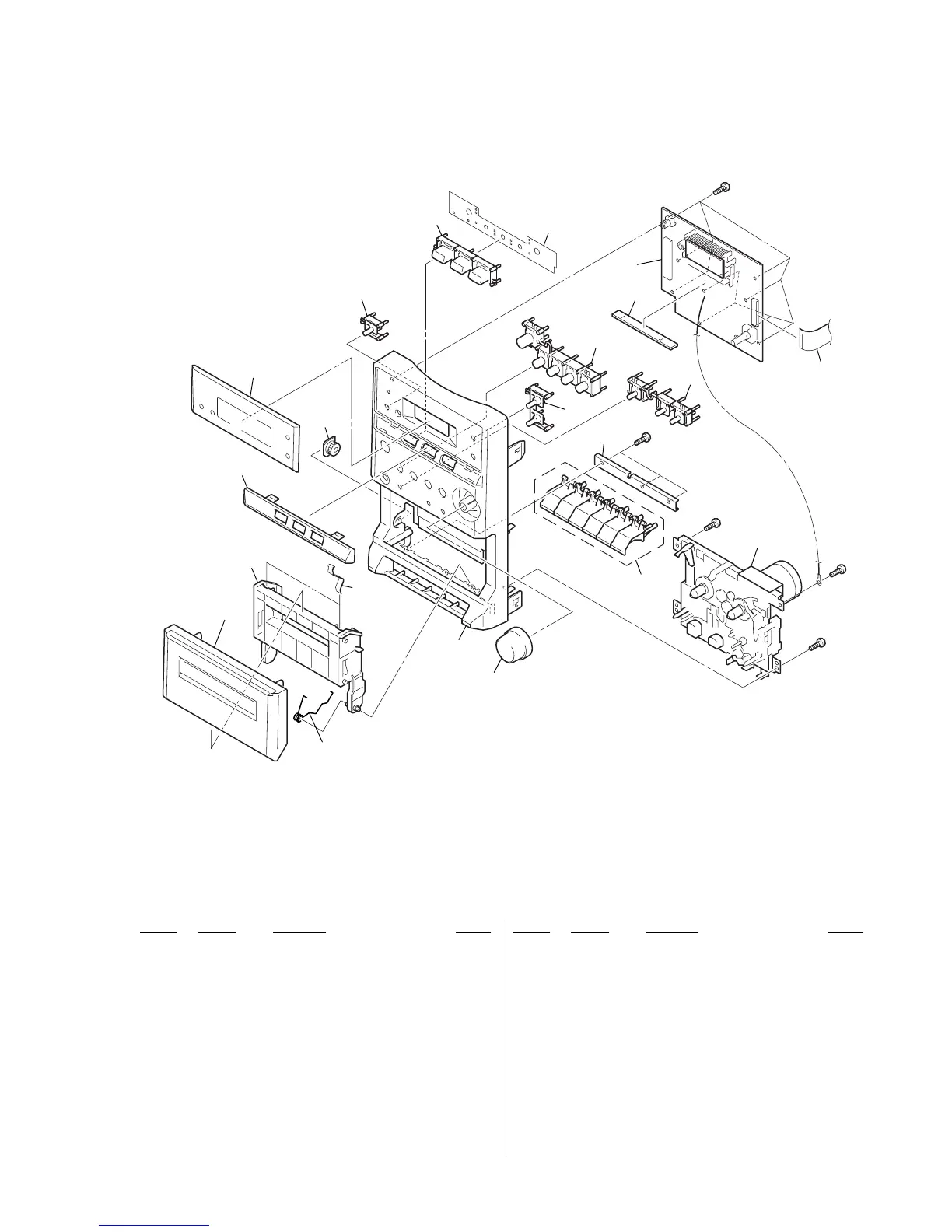

7-2. Front Panel Section
51
53
54
57
58
59
60
61
62
63
64
65
66
67
68
69
71
70
55
52
#2
#5
#4
#4
#4
56
51 A-4737-466-A DOOR CASSETTE ASSY
52 SPRING, CASSETTE
53 4-245-244-01 HOLDER,CASSETTE
54 4-238-631-01 TAPE SPRING
55 4-245-239-01 CABINET,FRONT
56 4-244-787-01 KNOB (VOLUME)
57 4-245-253-01 PLATE,FUNCTION
58 4-245-245-01 WINDOW,DISPLAY (AEP,UK)
58 4-245-245-11 WINDOW,DISPLAY (US,CND)
59 4-242-318-01 OIL-DMPR, 70
60 4-245-249-01 BUTTON,DISPLAY
61 4-245-247-01 BUTTON,FUNCTION
62 COVER, KEY SHEET
63 4-245-248-01 BUTTON,CD
64 4-245-250-01 BUTTON,BASS
65 4-245-251-01 BUTTON,ENTER
66 KEY CASS, PLATE
67 4-245-252-01 BUTTON, CASSETTE
68 1-796-689-11 DECK MECHANICAL
69 A-4732-942-A CONTROL BOARD, COMPLETE (AEP,UK)
69 A-4732-948-A CONTROL BOARD, COMPLETE (US,CND)
70 1-688-568-11 BACK LIGHT BOARD
71 WIRE (FLAT TYPE)
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
#4 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
