Sony HCD-EP313 - CD Cabinet Section Exploded View

34
HCD-EP313

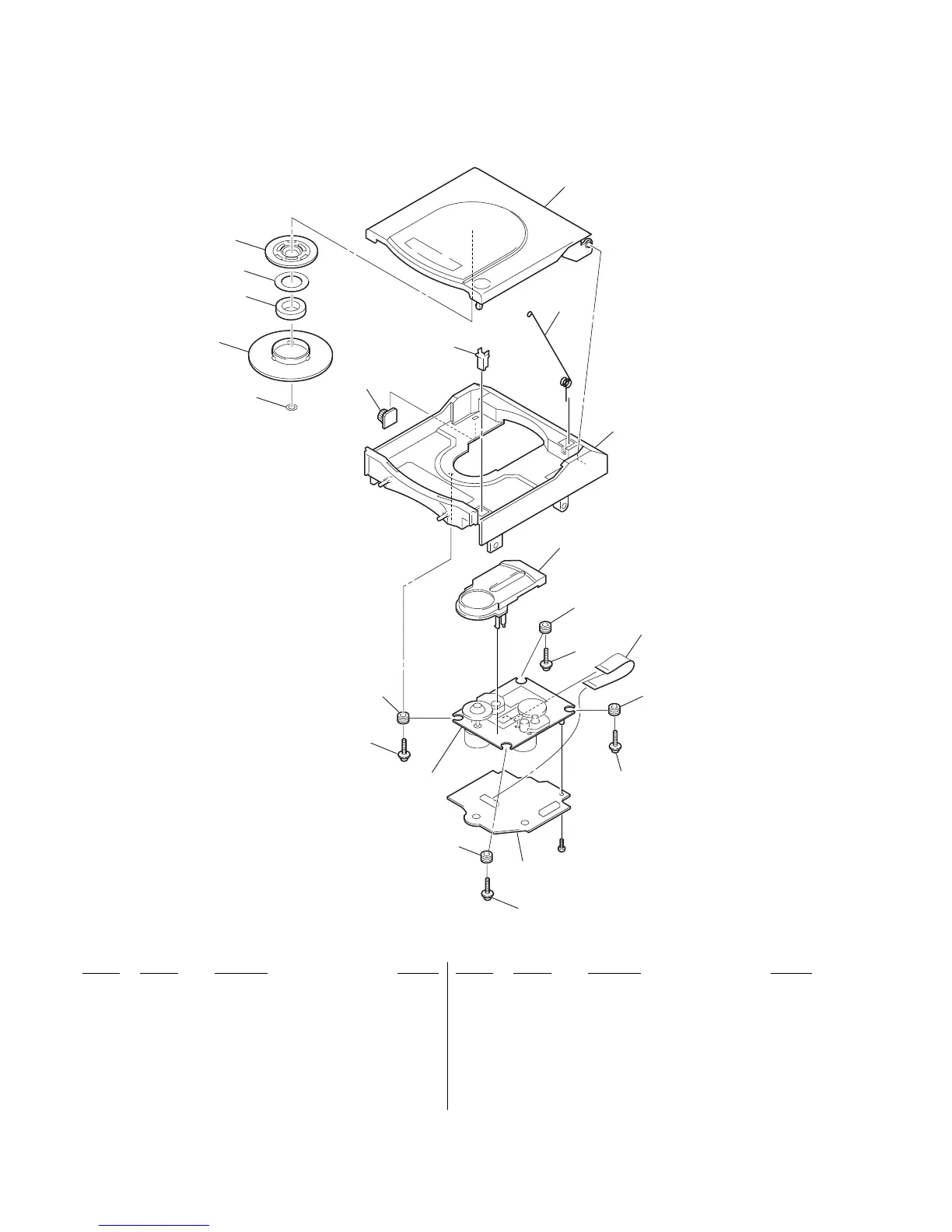

7-3. CD Cabinet Section
101
111
102
not supplied
104
105
106
107
107
115
115
108
108
110
#6
112
113
114
116
S800
KSM-213EDP
115
115
101 A-4737-468-A DOOR CD ASSY
102 SPRING, CD
104 4-242-171-01 DAMPER 150 N
105 4-247-493-01 PANEL, CD
106 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE)
107 CUSHION RUBBER
108 CUSHION RUBBER
110 A-4728-536-A CD BOARD, COMPLETE
111 4-246-193-01 HOLDER, CHUCK A
112 4-246-191-01 PLATE, MAGNET
113 4-249-238-01 MAGNET
114 4-246-192-01 BASE, CHUCK N
115 3-921-725-11 SCREW (2.6X10), +PWH
116 RING PLATE
S800 1-692-960-11 SW, PUSH 1-1-1
#6 7-621-255-32 SCREW +P 2X5
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
