Sony HCD-EP313 - EXPLODED VIEWS; Overall Section Exploded View

SECTION 7
EXPLODED VIEWS
32
HCD-EP313
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

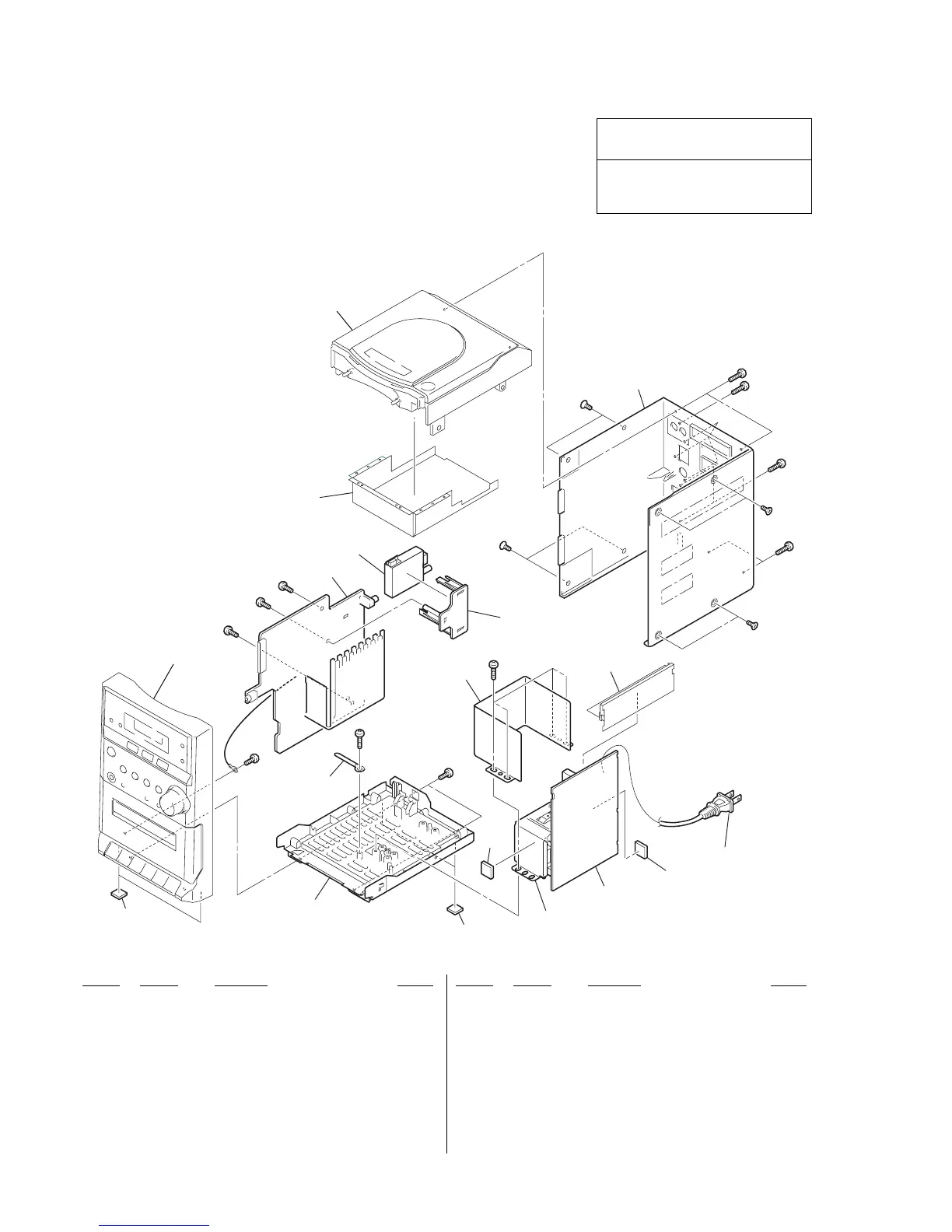

7-1. Overall Section
#3
#2
#1
#1
#2
#2
#5
#2
Front panel section
CD cabinet section
#1
#1
#4
#2
#2
#2
#5
6
1
8
not
supplied
T901
not
supplied
2
3
4
5
7
9
9
11
11
10
1 MOUNTING LUG
2 A-4732-945-A MAIN BOARD, COMPLETE (AEP,UK)
2 A-4732-950-A MAIN BOARD, COMPLETE (US,CND)
3 TUNER UNIT
4 COVER, CD DECK
5 4-245-240-01 CABINET,REAR
6 SHIELD PLATE TRANS
7 COVER, PT PWB
0 8 1-555-795-00 CORD, POWER (AEP,UK)
0 8 1-783-532-11 CORD, POWER (US,CND)
9 CUSHION-R
10 1-688-570-11 TRANSFORMER BOARD
11 RUBBER FOOT
0 T901 1-439-656-11 TRANSFORMER, POWER (US,CND)
0 T901 1-439-657-11 TRANSFORMER, POWER (AEP,UK)
#1 7-685-248-14 SCREW +KTP 3X12 TYPE2 NON-SLIT
#2 7-685-646-14 SCREW +BVTP 3X8 TYPE2 N-S
#3 7-685-661-79 SCREW +BVTP 4X12 TYPE2 SLIT
#4 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
