Sony HCD-EP313 - DISASSEMBLY; Rear Cabinet

7
HCD-EP313

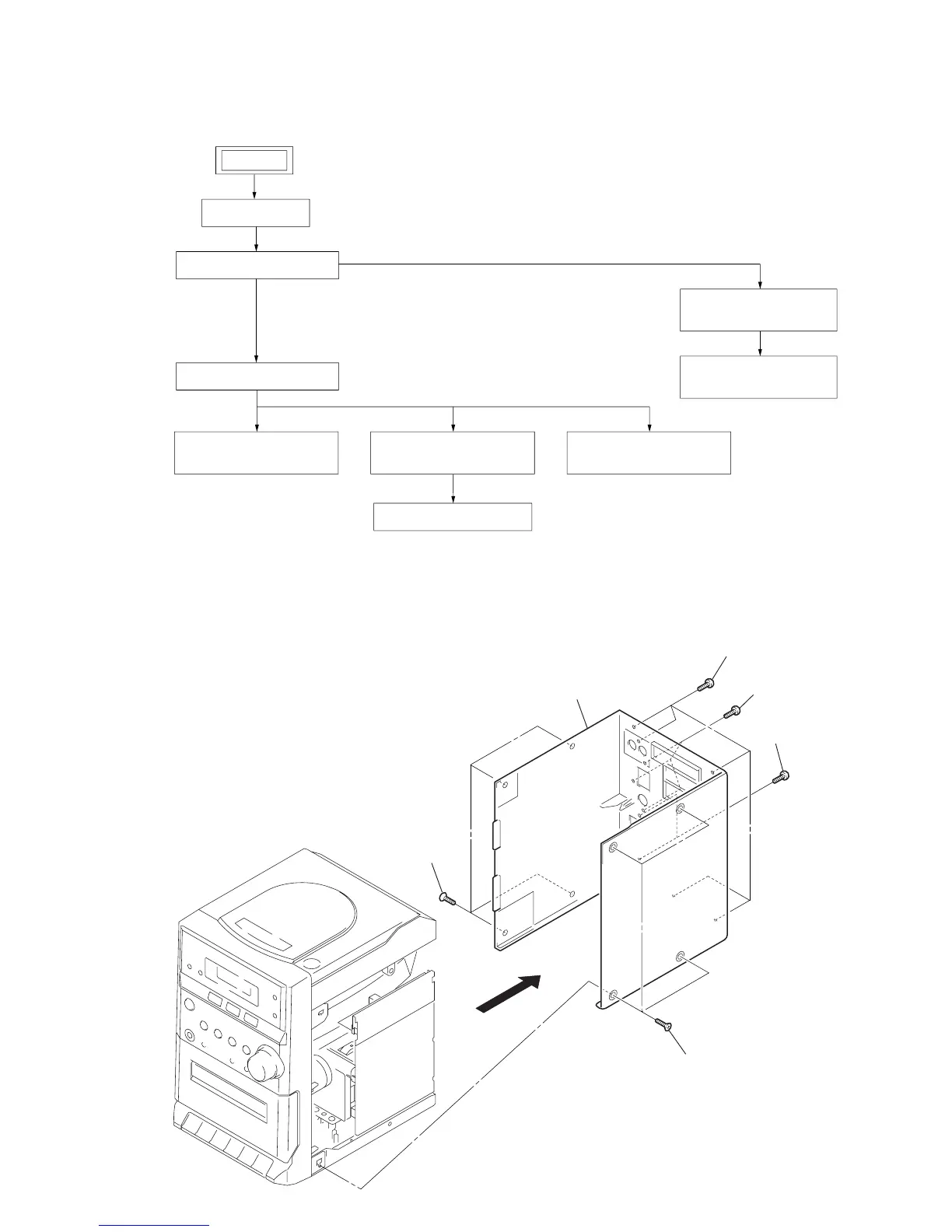

SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
• This set can be disassembled in the order shown below.
3-1. Rear Cabinet
REAR CABINET
CD MECHANISM DECK
(KSM-213EDP)
OPTICAL PICK-UP
(KSS-213E/C2N)
TAPE MECHANISM DECK
(ADR2080FR4)
CONTROL BOARD,
BACK LIGHT BOARD
MAIN BOARD,
POWER BOARD
CASSETTE DOOR ASSY
SET
CD CABINET SECTION
FRONT PANEL SECTION
3 five screws
(+BVTP 3
× 8)
1 two screws
(+BVTP 3
× 8
)
5 four screws
(+KTP 3
× 12)
4 four screws
(+KTP 3
× 12)
6 rear cabinet
2 three screws
(+BTP 3
× 8)
