Sony HCD-HP8V - Base Unit Section; Base Unit (BU-30 BD62)

13
HCD-HP8V

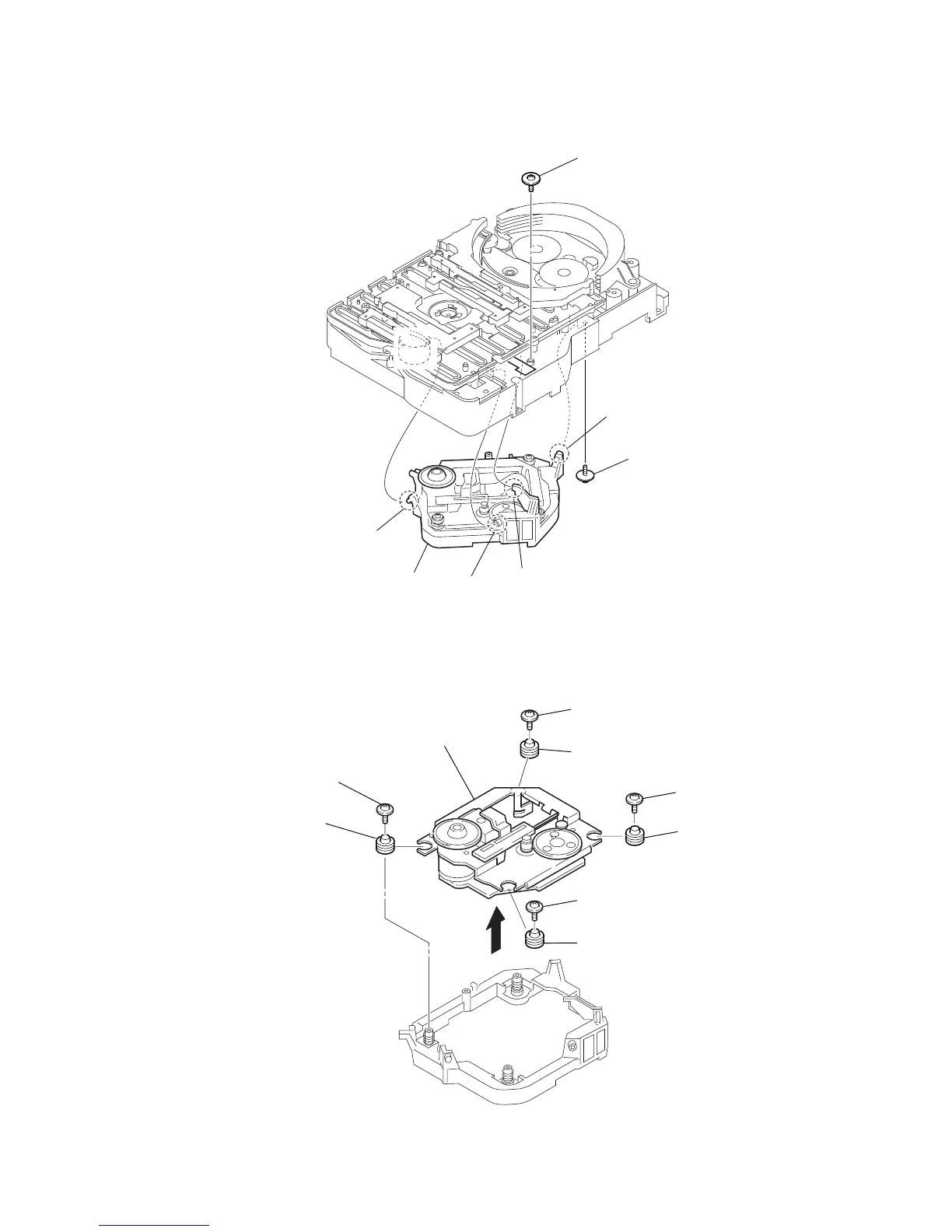

3-9. Base Unit Section
3-10. Base Unit (BU-30BD62)
1 floating screw (+PTPWHM2.6)
2 screw (DIA. 12)
4 boss
6 boss
3 boss
5 boss
7 base unit section
q; base unit (BU-30BD62)
7 insulator (BU30)
3 floating screw
(+PTPWHM2.6 × 6
)
1 floating screw
(+PTPWHM2.6 × 6)
4 floating screw
(+PTPWHM2.6 × 6)
2 floating screw
(+PTPWHM2.6 × 6)
8 insulator (BU30)
9 insulator (BU30)
6 insulator (BU30)
