Sony HCD-HP8V - CD Mechanism Section-3 (CDM69 BH-30 BD62)

63
HCD-HP8V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 X-4955-447-1 PULLEY (A)(BU30) ASSY,CHUCKING
402 4-992-069-01 SCREW (+PTPWH)(M2)(DIA. 7)
403 4-239-648-01 PARASOL (ROLLER)
404 4-239-646-01 ROLLER (ROLLER)
405 4-239-641-01 SPRING (1.2), TENSION
406 4-239-642-01 SPRING (3), TENSION COIL
407 4-239-679-01 SPRING (5), TENSION COIL
408 4-243-714-01 PULLEY (B)(BU30), CHUCKING
409 4-239-649-01 PARASOL (STOCKER)
411 4-244-035-01 ROLLER (STOCKER), RUBBER
412 4-239-640-02 PINION (SLIDER)
413 4-243-291-01 SPRING (HELPER2), TENSION
414 4-240-039-01 LEVER (DISC STOPPER)
415 4-239-702-01 ROLLER (DISC STOPPER)
416 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
417 4-243-713-01 LEVER (LIFTER)
418 4-239-647-01 PARASOL (MAIN)
419 4-243-916-01 ROLLER (S), RUBBER
420 4-241-599-01 LEVER (SUPPORT)
421 4-239-643-01 SPRING (4), TENSION COIL
422 4-228-414-01 BRACKET (YOKE)
423 4-244-032-01 ROLLER, RUBBER
424 4-231-505-01 SPACER (CH)
425 4-240-040-01 SPRING, TORSION

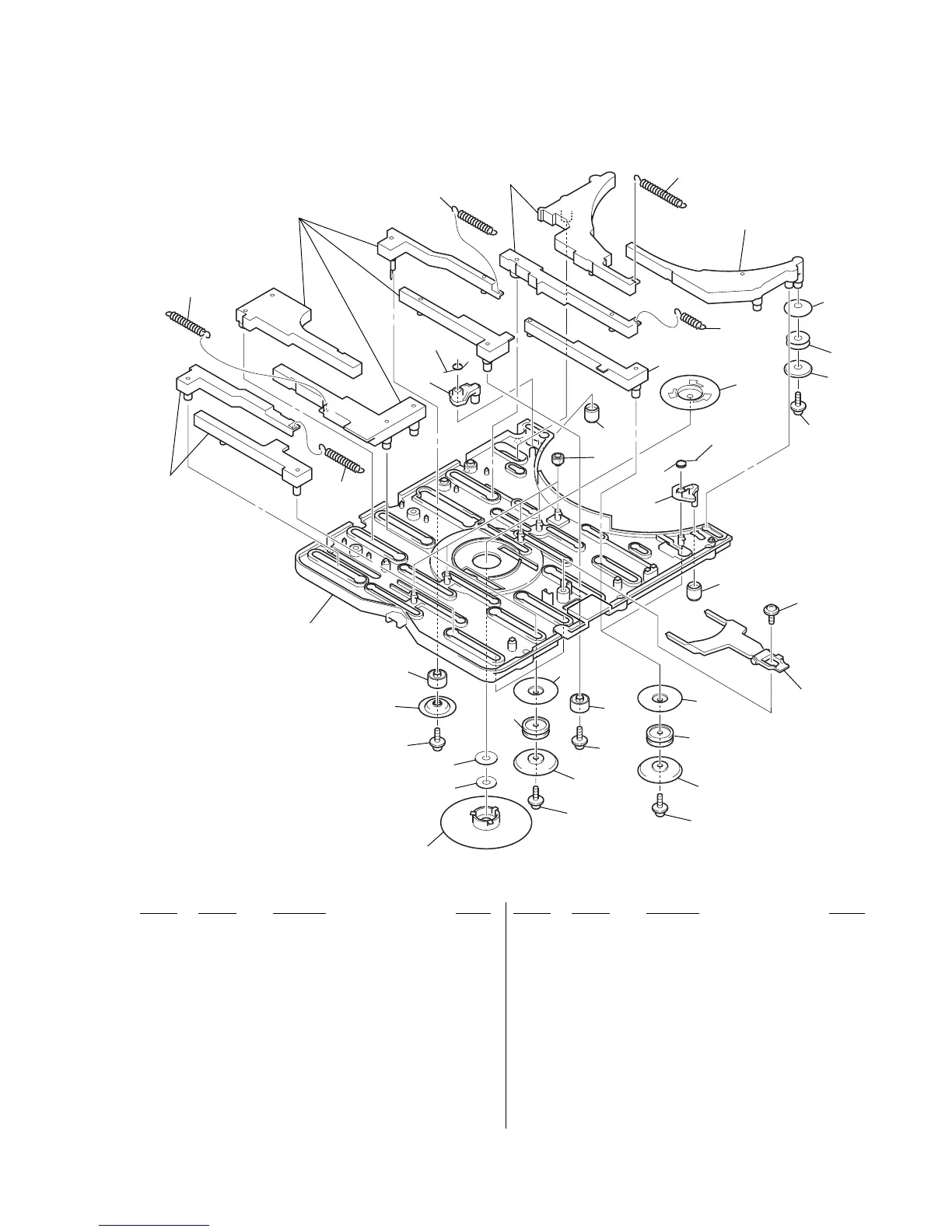

9-7. CD Mechanism Section-3 (CDM69BH-30BD62)
