Sony HCD-HP8V - Chassis Section-2

60
HCD-HP8V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
0151 1-824-818-11 CORD, POWER (WITH CONNECTOR)(TH)
0151 1-783-532-11 CORD, POWER (EA,SP)
0151 1-791-901-12 CORD, POWER (E3)
152 3-703-571-11 BUSHING (S)(4516), CORD (E3)
* 152 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3)
153 4-988-533-01 HOLDER, PWB
155 1-827-390-11 WIRE (FLAT TYPE)(27 CORE)
156 1-827-391-11 WIRE (FLAT TYPE)(28 CORE)
157 3-378-109-12 CUSHION, SARANET
158 1-689-247-12 JACK BOARD
160 A-4747-564-A VMP BOARD, COMPLETE (EXCEPT TH)
160 A-4747-576-A VMP BOARD, COMPLETE (TH)
161 1-827-394-11 WIRE (FLAT TYPE)(19 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#8 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

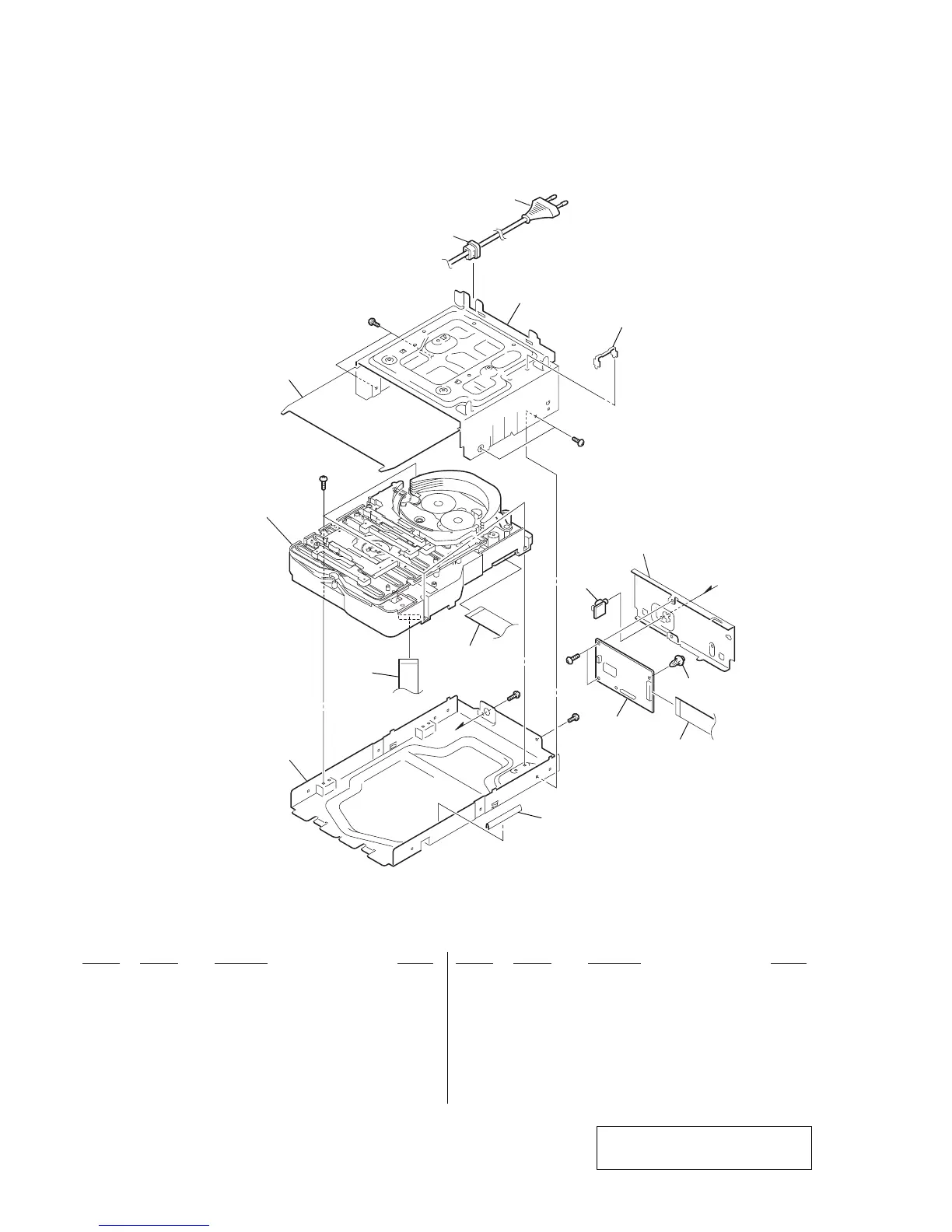

9-4. Chassis Section-2
not
supplied
not
supplied
not
supplied
not
supplied
151
152
157
158
160
not
supplied
153
155
156
CD mechanism deck section-1
#1
#1
#1
#1
#1
#8
a
a
161
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
