Sony HCD-HP8V - SENSOR Board

19
HCD-HP8V

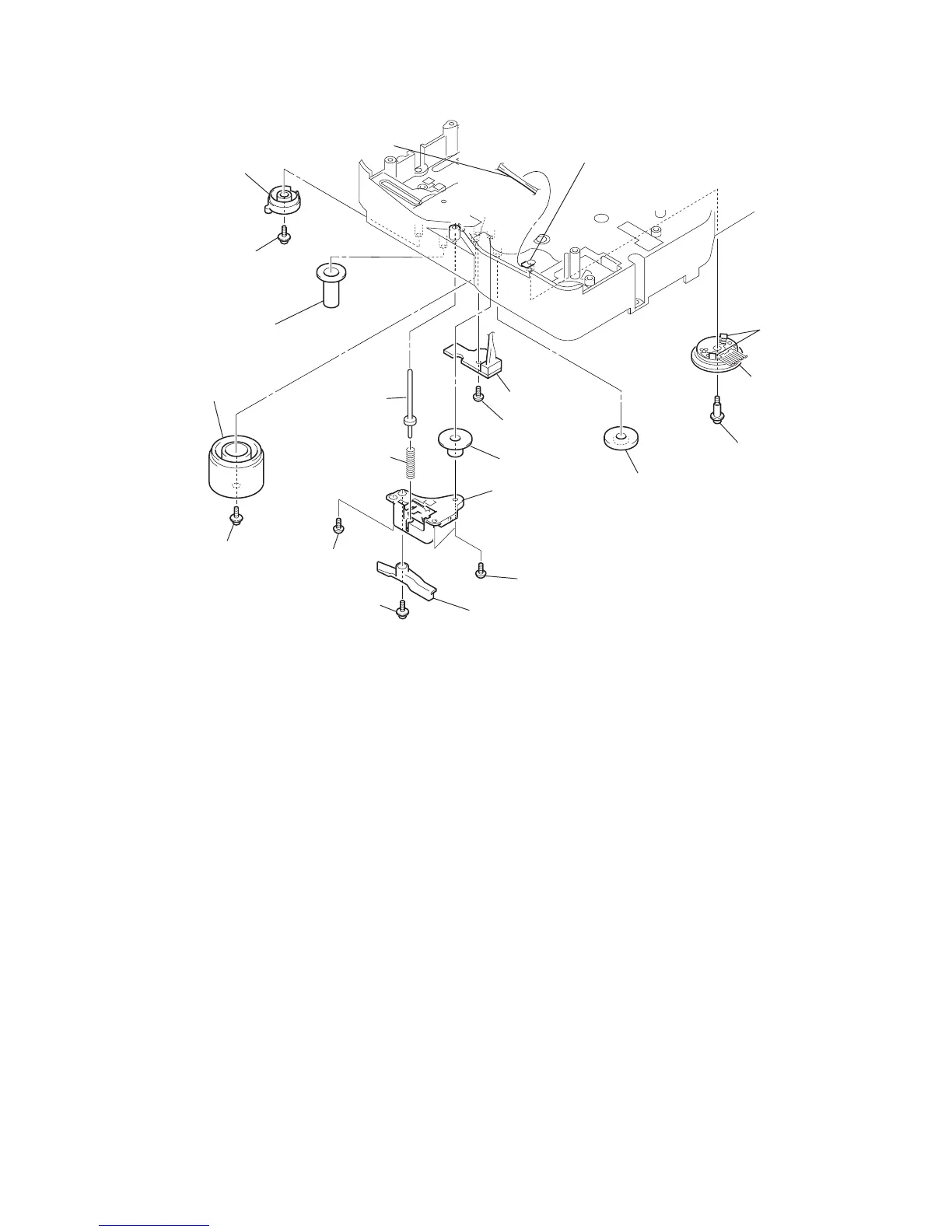

3-20. SENSOR Board
ql harness
qd gear (eject lock)
q; cam (eject lock)
: Note
qh two claws
qj rotary encoder
(S771)
qf gear
(mode B)
w; screw
(BVTP2.6
× 8)
qg screw
(PTPWH2.6
× 8)
wa SENSOR board
8 shaft
(shutter)
7 compression spring
(shutter)
qs cam (BU U/D)
qa screw
(PTPWH2.6
× 8)
3 screw
(BVTP2.6
× 8)
1 screw
(PTPWH2.6
× 8)
4 two screws
(BVTP2.6
× 8)
2 lever shutter (A)
5 base (shutter) block
6 gear (mode A)
9 screw
(PTPWH2.6
× 8)
qk claw
Note: Refer to assembly (Section 4).
