Sony HCD-HP8V - Chassis Section-1

59
HCD-HP8V
101 1-689-250-11 PWR TRANS BOARD
102 A-4734-342-A PWR AMP BOARD, COMPLETE (EXCEPT TH)
102 A-4747-550-A PWR AMP BOARD, COMPLETE (TH)
103 1-689-248-12 SENSOR (FAN) BOARD
104 1-689-246-12 SUB TRANS BOARD
105 1-787-025-11 DC FAN
106 4-225-252-01 CUSHION (FOOT)
107 1-693-628-11 TUNER (FM/AM)
108 1-769-946-11 WIRE (FLAT TYPE)(11 CORE)
109 A-4747-562-A MAIN BOARD, COMPLETE (EXCEPT TH)
109 A-4747-574-A MAIN BOARD, COMPLETE (TH)
0 F901 1-533-473-11 FUSE, GLASS TUBE (DIA. 5)
0 F902 1-533-473-11 FUSE, GLASS TUBE (DIA. 5)
0 F903 1-533-470-11 FUSE, GLASS TUBE (DIA. 5)
0 F904 1-533-470-11 FUSE, GLASS TUBE (DIA. 5)
0 F905 1-533-471-11 FUSE, GLASS TUBE (DIA. 5)(EXCEPT TH)
0 T901 1-439-834-11 TRANSFORMER, POWER (EXCEPT EA)
0 T901 1-439-835-11 TRANSFORMER, POWER (EA)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
#7 7-682-552-09 SCREW +B 3X16
#8 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#9 7-684-023-04 N 3, TYPE 2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

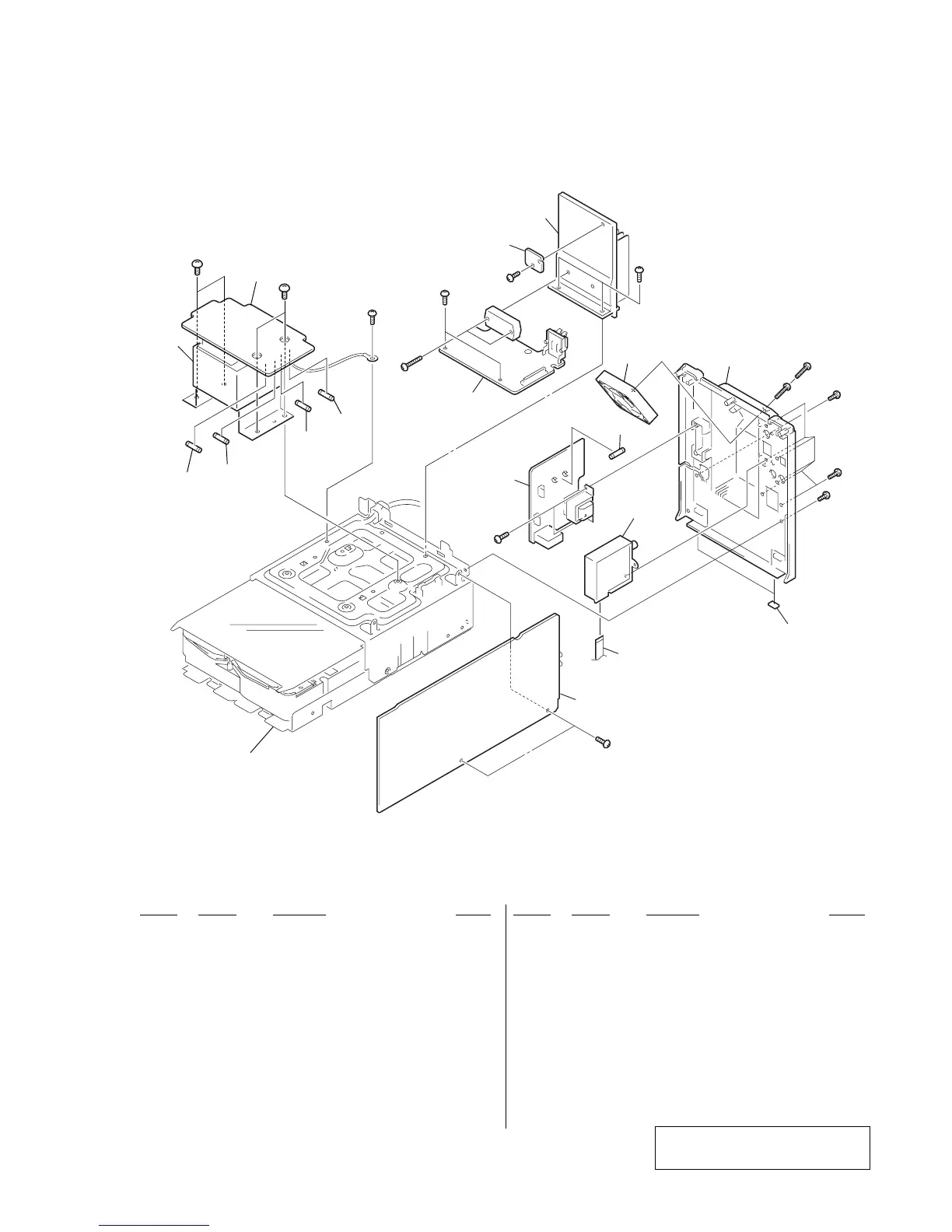

9-3. Chassis Section-1
F901
T901
F902
F903
F904
F905
#7
#1
#1
#1
#1
#1
#1
#1
#
8
#9
#9
#1
#3
#3
chassis section
not
supplied
not
supplied
101
103
107
108
109
104
102
105
106
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
