Sony HCD-HP8V - Front Panel Section

58
HCD-HP8V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-225-252-01 CUSHION (FOOT)
52 4-246-397-01 EMBLEM (5CD)
53 4-246-384-01 KNOB (VOL)
54 4-246-385-01 RING (VOL)
55 4-246-382-01 BUTTON (FUNCTION)
56 4-246-374-31 PANEL, FRONT
57 4-246-383-01 BUTTON (PRESET)
58 4-246-379-01 BUTTON (POWER)
59 4-246-378-01 INDICATOR (POWER)
60 4-246-381-01 BUTTON (PLAY)
61 4-246-376-01 WINDOW (DISPLAY)
62 4-246-380-01 BUTTON (DISPLAY)
63 1-769-920-11 WIRE (FLAT TYPE)(9 CORE)
64 A-4747-557-A PANEL BOARD, COMPLETE (E3,SP)
64 A-4747-565-A PANEL BOARD, COMPLETE (EA)
64 A-4747-569-A PANEL BOARD, COMPLETE (TH)
65 1-827-395-11 WIRE (FLAT TYPE)(37 CORE)
66 4-951-620-01 SCREW (2.6X8), +BVTP
67 4-246-388-01 BUTTON (EJECT)
68 4-246-387-01 INDICATOR (DISC)
69 4-246-386-01 BUTTON (DISC)
70 4-246-375-01 PANEL, SUB
71 4-246-408-01 KNOB (MIC)

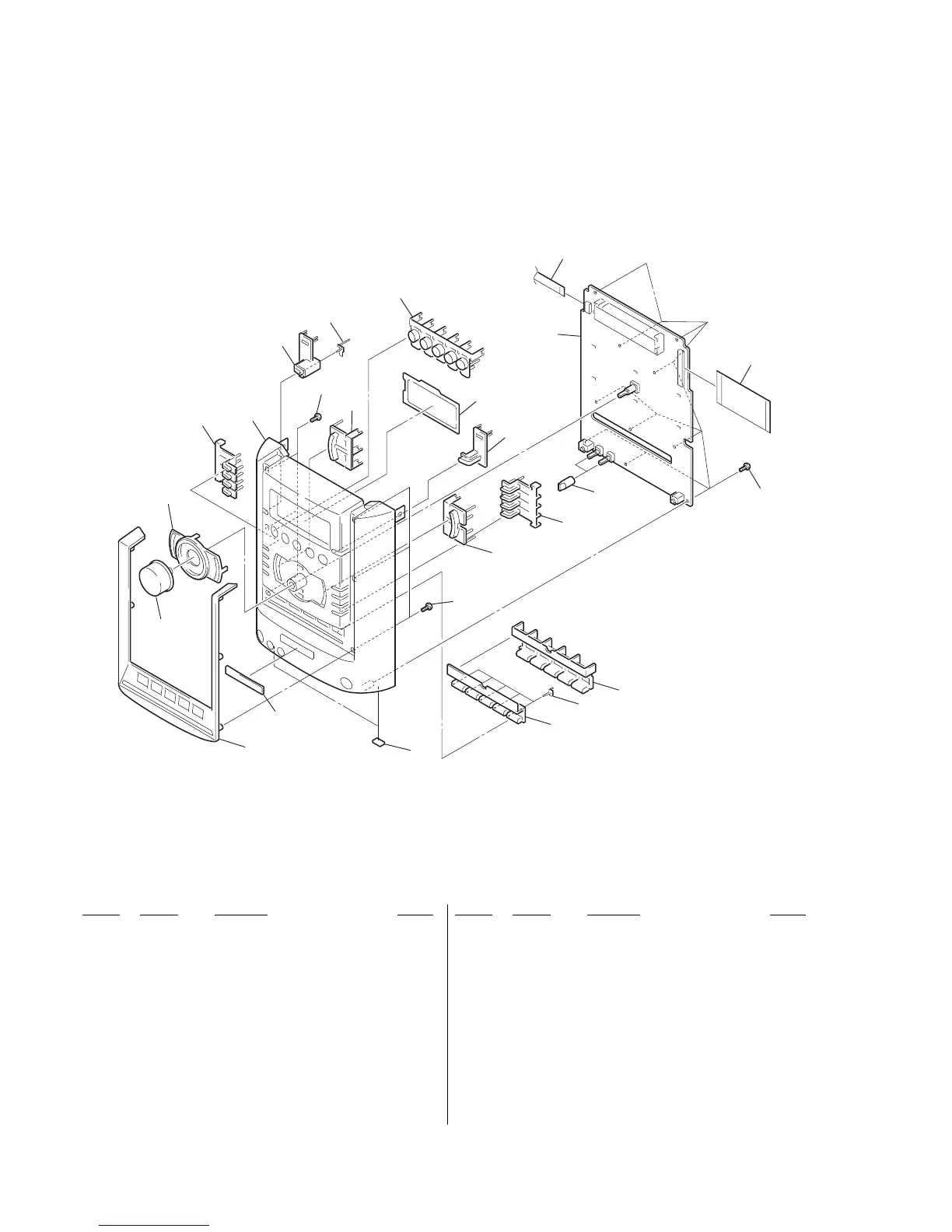

9-2. Front Panel Section
