Sony HCD-HP8V - CD Mechanism Section-4 (CDM69 BH-30 BD62)

64
HCD-HP8V
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451 X-4954-626-1 LEVER (ROLLER) ASSY
452 4-239-666-01 GEAR
453 4-239-668-01 LEVER (CENTER)
454 4-239-652-01 SCREW (ROLLER), STEP
455 4-239-669-01 GEAR (ROLLER COMMUNICATION)
456 4-239-667-01 GEAR (ROLLER CENTER)
457 4-239-647-01 PARASOL (MAIN)
458 4-244-032-01 ROLLER, RUBBER
460 X-4954-622-1 BASE (SLIDER 2) ASSY
461 4-239-670-01 GEAR (ROLLER 5 COMMUNICATION)
462 X-4954-624-A LEVER (SLIDER 4) ASSY
463 4-992-069-01 SCREW (+PTPWH)(M2)(DIA. 7)
464 4-240-981-01 SPRING (BASE SLIDER 5),TENSION
465 4-240-041-01 SPRING (SLIDER 2), TENSION
466 4-951-620-01 SCREW (2.6X8), +BVTP
467 4-243-916-01 ROLLER (S), RUBBER
468 4-244-035-01 ROLLER (STOCKER), RUBBER
469 4-241-209-01 SHEET, ADHESIVE
470 4-239-649-01 PARASOL (STOCKER)
471 4-239-671-01 GEAR (ROLLER 5 CENTER)
472 X-4954-627-1 BASE (SLIDER 5) ASSY
473 1-686-726-12 ROLLER MOTOR BOARD
474 4-986-156-01 PULLEY, MOTOR
475 4-244-162-01 SPRING (SLIDER 4),TENSION
M781 A-4735-953-A MOTOR ASSY (ROLLER)
#6 7-623-921-01 RING, RETAINING, CAPSTAN
4-240-040-01 SPRING (DISC STOPPER), TORSION

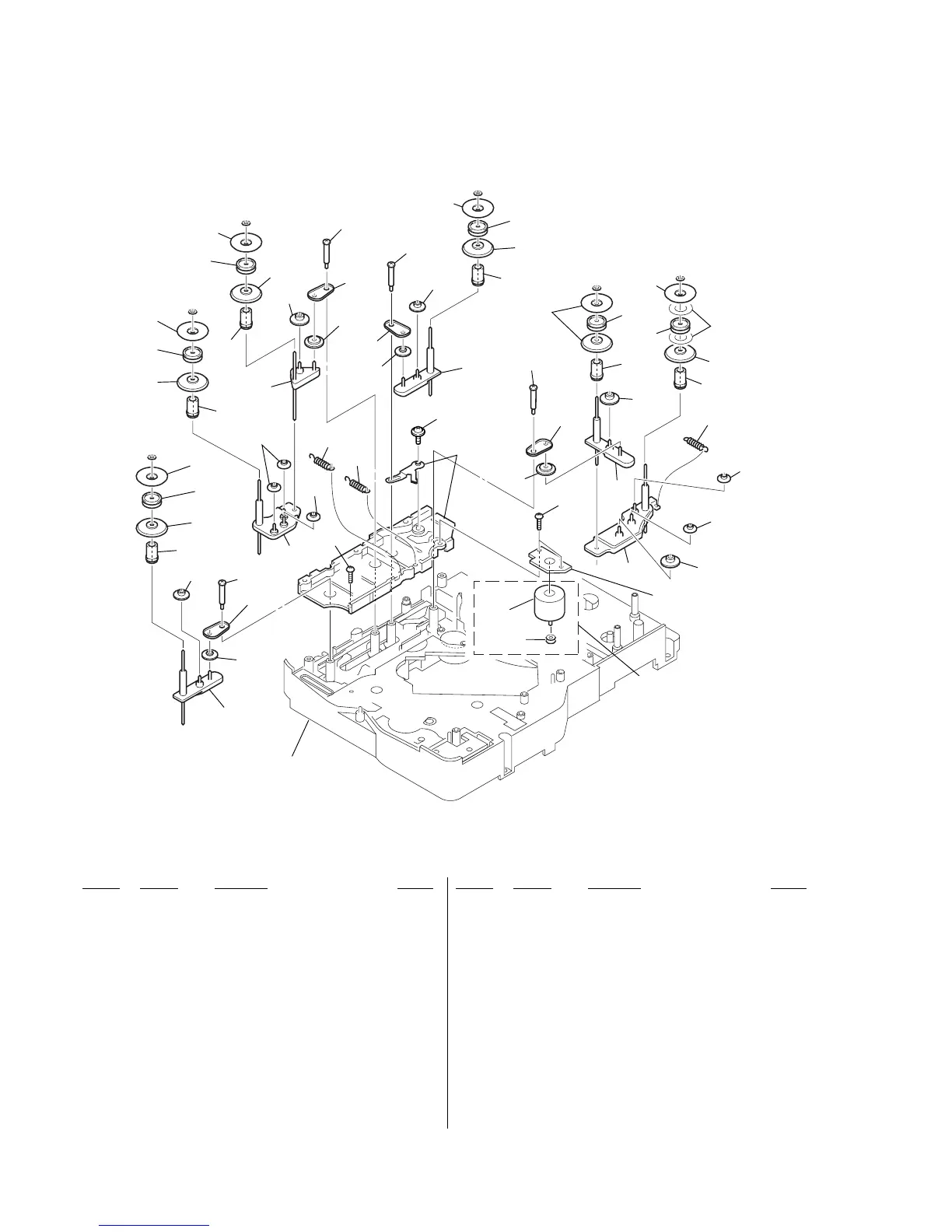

9-8. CD Mechanism Section-4 (CDM69BH-30BD62)
