Sony HCD-HP8V - Motor (Mode) Assy (Mode)(M771); Rubber Roller (Slider) Assy

17
HCD-HP8V

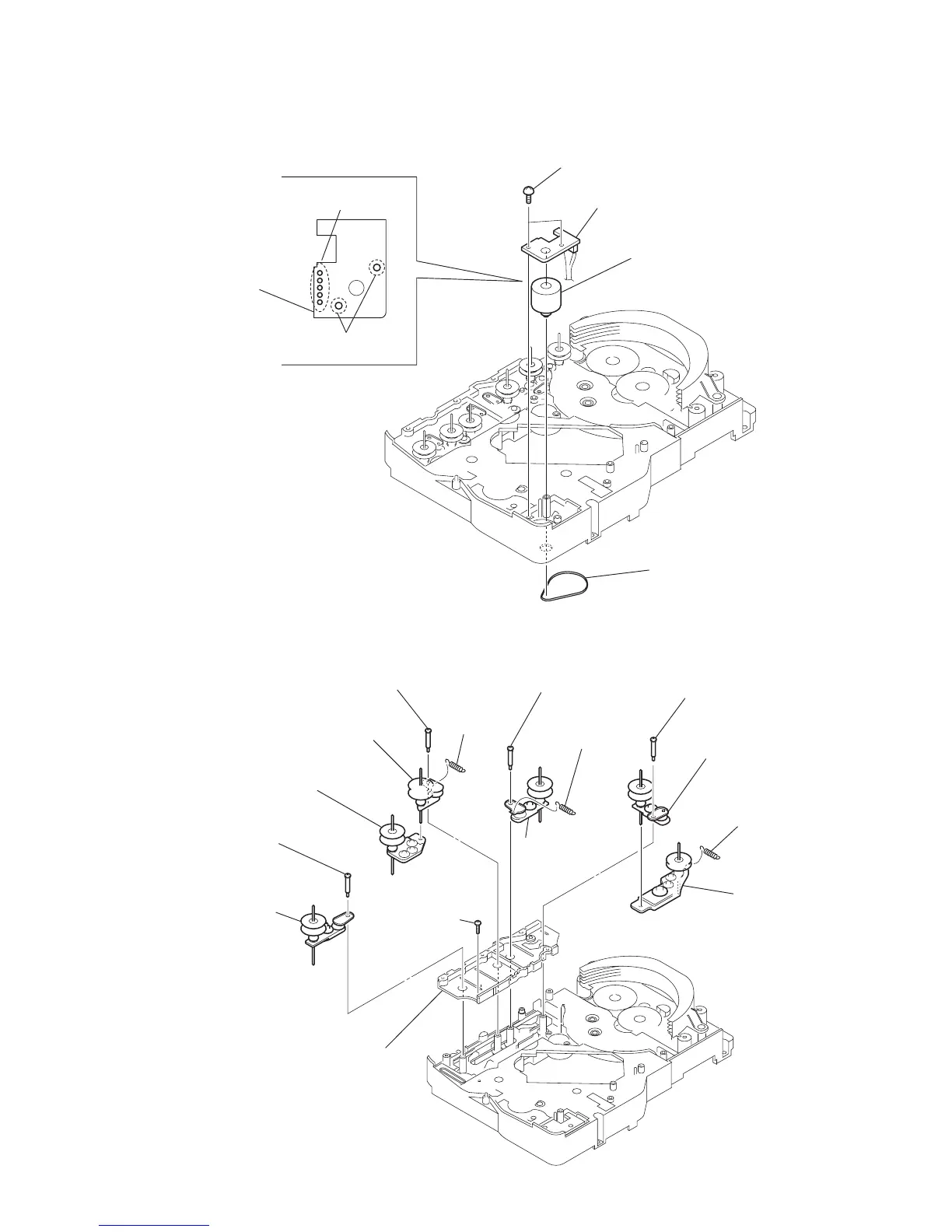

3-16. Motor (Mode) Assy (Mode)(M771)
3-17. Rubber Roller (Slider) Assy
1 Remove five solders
of rotary encoder.
2 Remove two solders
of motor (M771)
MODE MOTOR
board
3 two screws
(BVTP2.6
× 8)
4 MODE MOTOR board
5 belt (mode V)
6 motor (mode) assy
(mode) (M771)
qg sub chassis
qf screw
(BVTP2.6
× 8)
8 step screw
qs step screw
5 step screw
9 tension
spring
(slider 2)
6 tension spring
(base slider 4)
0 rubber roller
(slider 1) assy
7 rubber roller
(slider 1) assy
qa rubber roller
(slider 2) assy
qd rubber roller
(slider 4) assy
3 tension spring
(base slider 5
)
1 step screw
4 rubber roller
(slider 5) assy
2 rubber roller
(slider S) assy
