Iop = 82.5 mA in this case
Iop (mA) = Digital voltmeter reading (mV)/1 (
Ω
)
5. Then “LD 7.0 mW $ ” will be displayed.
6. Press the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button so that the reading of the laser power
meter becomes 6.9 to 7.1 mW, press the ENTER/YES “R” but-
ton and save it.
Note : Do not perform the emission with 7.0 mW more than 15
seconds continuously.
7. Then, Press the =0/MD/CD/TUNING – button or
)+/MD/CD/TUNING + button and display “LDPWR
CHECK”.
8. Press the ENTER/YES “R” button once and display “LD 0.9
mW $ ”. Check that the reading of the laser power meter be-
come 0.85 to 0.91 mW.
9. Press the ENTER/YES “R” button once more and display “LD
7.0 mW $ ”. Check that the reading the laser power meter and
digital volt meter satisfy the specified value.
Note down the digital voltmeter reading value.
Specified Value :
Laser power meter reading : 7.0 ± 0.1 mW
Digital voltmeter reading : Optical pick-up displayed value ± 10%
(Optical pick-up label)
10. Press the MENU/NO “R” button and display “LDPWR
CHECK” and stop the laser emission.
(The MENU/NO “R” button is effective at all times to stop the
laser emission.)
11. Press the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button to display “Iop.Write”.
12. Press the ENTER/YES “R” button. When the display becomes
Ref=@@@.@ (@ is an arbitrary number), press the ENTER/
YES “R” button to display “Measu=@@@.@” (@ is an arbi-
trary number).
13. The numbers which can be changed will blink. Input the Iop
value noted down at step 9.
To select the number : Press the =0/MD/CD/TUNING –
button or )+/MD/CD/TUNING + button.
To select the digit : Press the SYNC REC button.
14. When the ENTER/YES “R” button is pressed, “Complete!”
will be displayed momentarily. The value will be recorded in
the non-volatile memory and the display will become “Iop
Write”.
Note 1: After step 4, each time the ENTER/YES “R” button is
pressed, the display will be switched between “LD 0.7 mW
$
”, “LD 6.2 mW $ ”, and “LD Wp $ ”.
Nothing needs to be performed here.
(For details of the method for checking
this value, refer to “5-8. Recording and
Displaying IOP Information”.)

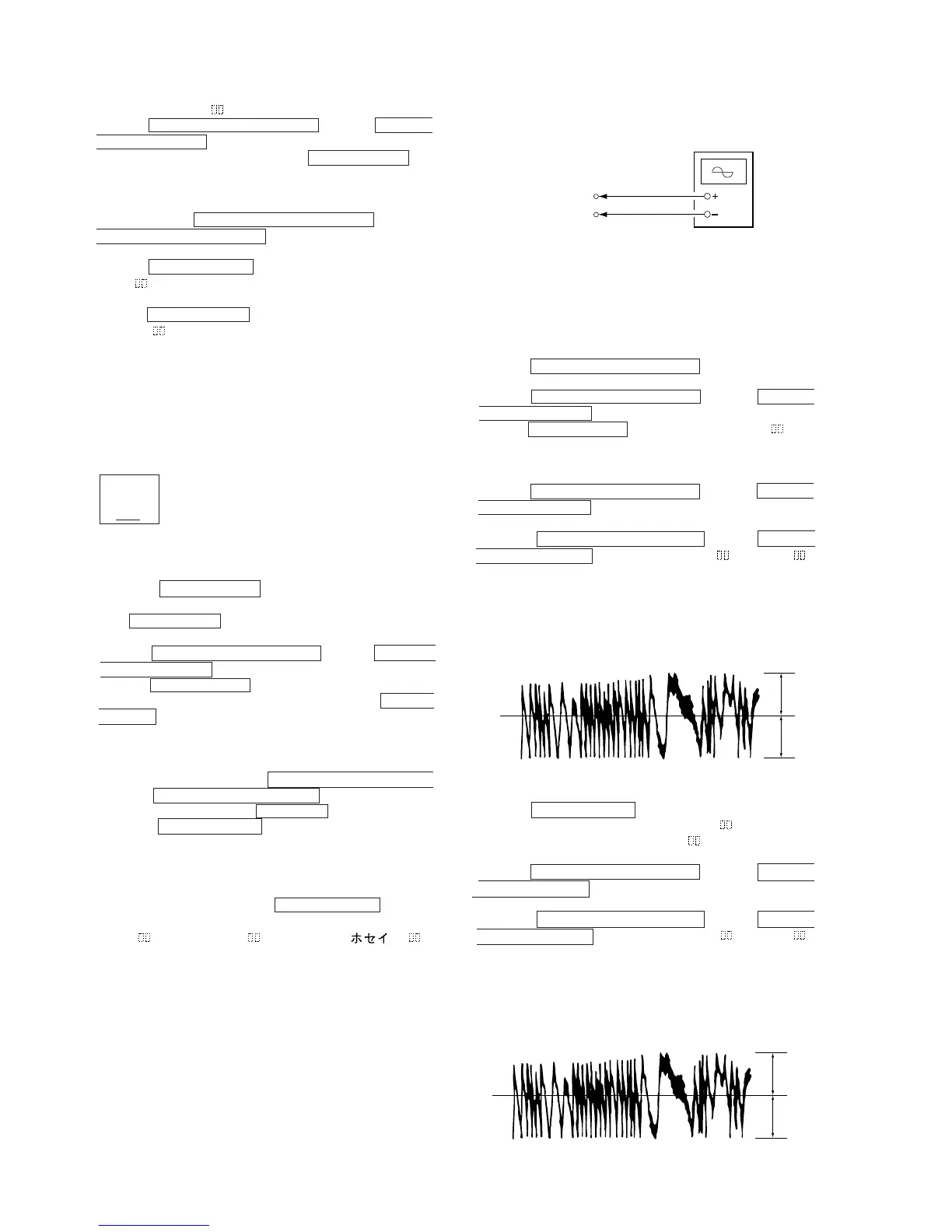

5-11. TRAVERSE ADJUSTMENT
Connection :
Adjusting Procedure :
1. Connect an oscilloscope to CN110 pin 3 (TE) and CN110 pin
1 (VC) of the BD board.
2. Load a disc (any available on the market). (Refer to Note 1.)
3. Press the )+/MD/CD/TUNING + button continuously
and move the optical pick-up outside the pit.
4. Press the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button and display “EF MO ADJUST”.
5. Press the ENTER/YES “R” button and display “EFB =
MO-
R”.
(Laser power READ power/Focus servo ON/tracking servo OFF/
spindle (S) servo ON)
6. Press the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button so that the waveform of the oscillo-
scope becomes the specified value.
(When the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button is pressed, the of “EFB= ”
changes and the waveform changes.) In this adjustment, wave-
form varies at intervals of approx. 2%. Adjust the waveform so
that the specified value is satisfied as much as possible.
(Read power traverse adjustment)
(Traverse Waveform)
7. Press the ENTER/YES “R” button and save the result of ad-
justment to the non-volatile memory (“EFB =
SAVE” will be
displayed for a moment. Then “EFB = MO-W” will be dis-
played).
8. Press the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button so that the waveform of the oscillo-
scope becomes the specified value.
(When the =0/MD/CD/TUNING – button or )+/
MD/CD/TUNING + button is pressed, the of “EFB- ”
changes and the waveform changes.) In this adjustment, wave-
form varies at intervals of approx. 2%. Adjust the waveform so
that the specified value is satisfied as much as possible.
(Write power traverse adjustment)
(Traverse Waveform)
V : 0.5 V/div
H : 10 ms/div
Input : DC mod
To Next Page
